Quick Details
-
Brand Name:
-
Xinxuan
-
Model Number:
-
XTB-G02-40W
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
18v
-
Lamp Luminous Flux(lm):
-
4000
-
Working Temperature(℃):
-
-30 - 60
-
Item Type:
-
Street Lights
-
Lamp Body Material:
-
Aluminum
-
Power:
-
40W
-
Material:
-
Aluminum
-
Battery:
-
Li-ion Battery
-
Beam angle:
-
120 Degree
-
Controller:
-
MPPT
-
Sensor:
-
Motion sensor+dim light
-
Installation height:
-
4-6m
-
Lighting time:
-
3-5 rainy days, Max 10 rainy days
Quick Details
-
Warranty(Year):
-
3-Year
-
Lighting solutions service:
-
Lighting and circuitry design
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Xinxuan
-
Model Number:
-
XTB-G02-40W
-
Beam Angle(°):
-
120
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
18v
-
Lamp Luminous Flux(lm):
-
4000
-
Working Temperature(℃):
-
-30 - 60
-
Item Type:
-
Street Lights
-
Lamp Body Material:
-
Aluminum
-
Power:
-
40W
-
Material:
-
Aluminum
-
Battery:
-
Li-ion Battery
-
Beam angle:
-
120 Degree
-
Controller:
-
MPPT
-
Sensor:
-
Motion sensor+dim light
-
Installation height:
-
4-6m
-
Lighting time:
-
3-5 rainy days, Max 10 rainy days

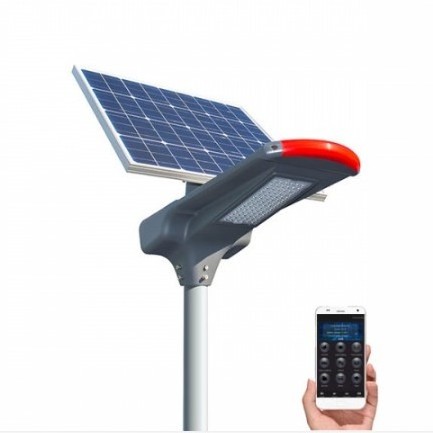

Led Parking Outdoor 12v Battery Powered Die Cast Aluminium Body Fixture Ce Rohs Lighting High Power 40w Solar Street Light
50w Led Power Factory Price Lights Pathway Lighting Lamp Farm Smd Lithium Battery Garden Wall Outdoor Solar Street Light
Product features
1. Semi Integration design, easy to carry, LED lamp, battery and controller all in one, don't need any cable;
2. Installation is very convenient, use iron pole, wood pole, bamboo pole, plastic pole, wall, etc will be no problem, it will can reduce a lot of cost;
3. Using high capacity and long life of lithium iron phosphate battery,service life 5 years, can resist high temperature and low temperature, can ensure the long service life of the whole product;
4. Easy to maintain,the battery and light are the direct inserted & pluck type, can complete the main maintain by yourself in the future when the battery or light source need to be replaced, don't need a professional personage to do maintenance.
5. Use Die-casting Aluminum materials, waterproof, strong and durable.
|
Solar Panel |
Battery |
LED Lamp
|
Charge Time |
Discharge Time |
Mounting
|
Space
|
|
18V15W |
lithium
|
12V 8W
|
6hours
|
full power:
|
3-4m |
8-10m |
|
18V18W |
lithium
|
12V 12W
|
5-6 hours
|
full power:
|
3-4m |
8-10m |
|
18V/25W |
lithium
|
12V 15W
|
7 hours
|
full power:
|
4-5m |
10-15m |
|
18V40W |
lithium
|
12V 18W
|
7 hours
|
full power:
|
5-6m |
18-20m |
|
18V45W |
lithium
|
12V 20W
|
7 hours
|
full power:
|
5-6m |
18-20m |
