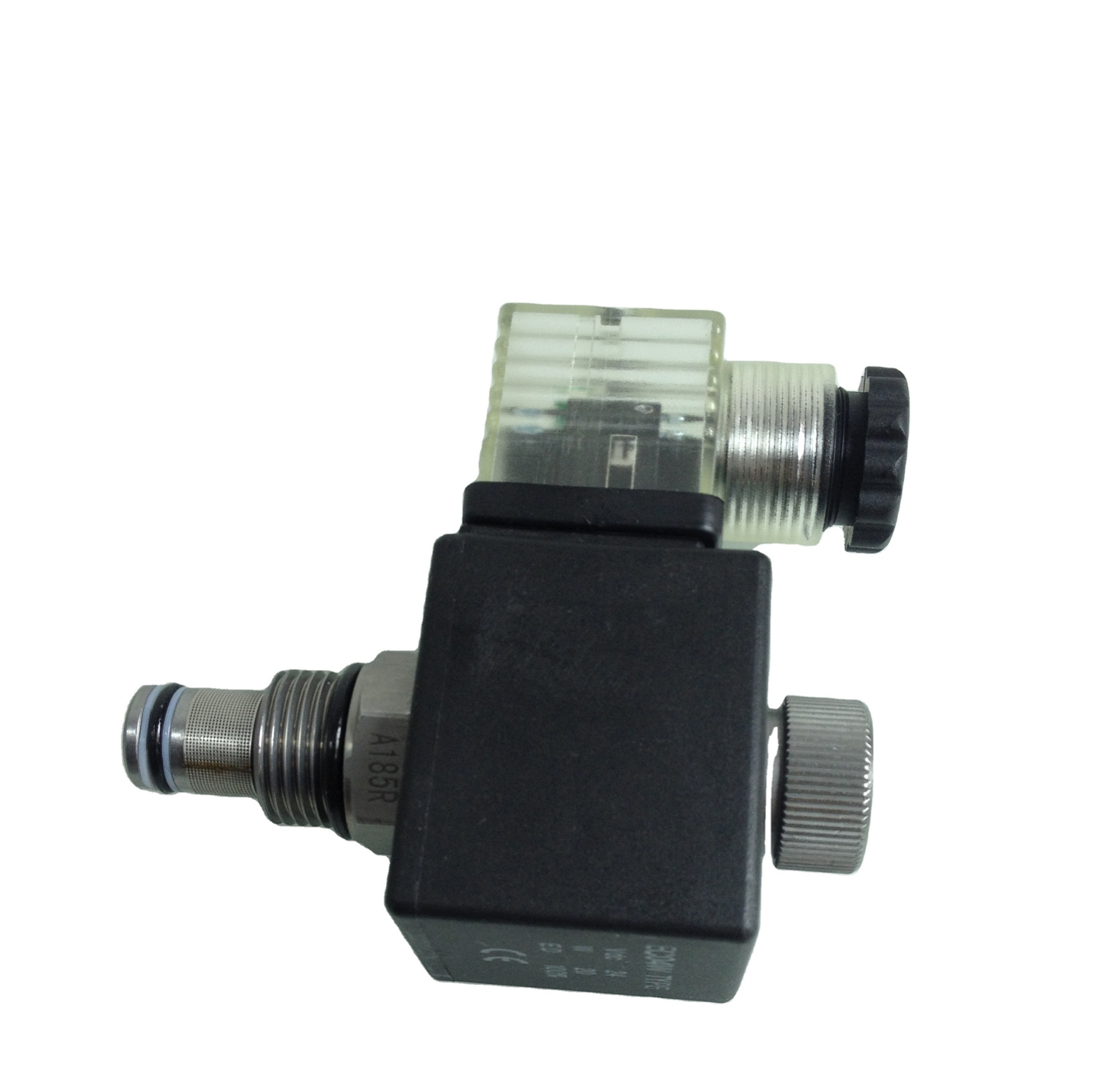

Normally closed 2 Position 2 Way spool type Solenoid on/off Controls spool SV10-24 Threaded cartridge hydraulic valve

Normally closed 2 Position 2 Way spool type Solenoid on/off Controls spool SV10-24 Threaded cartridge hydraulic valve

FOB Reference Price: Get Latest Price

≥2 Pieces

US $15

≥100 Pieces

US $12

≥500 Pieces

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shanghai, China

Weight:: 0.32

Power:: 20, 20W

Dimension(L*W*H):: 4*4*6

Maximum pressure:: 207bar

Maximum Flow Rate:: 60L/min

Type:: Hydraulic Directional Control Valve

Product name:: Threaded Cartridge Valve

Material:: Carbon Steel

Structure:: Poppet Valve

Application:: Agricultural Equipment

After Warranty Service:: Online Support

Usage:: Machinery Hydraulic System

MOQ:: 1 Piece

Delivery Time:: 1-2Days

Quick Details

Warranty:: 1 Year

Valve type:: Directional Control Valve

Brand Name:: X-hydraulics

Place of Origin:: Shanghai, China

Weight:: 0.32

Power:: 20, 20W

Dimension(L*W*H):: 4*4*6

Maximum pressure:: 207bar

Maximum Flow Rate:: 60L/min

Type:: Hydraulic Directional Control Valve

Product name:: Threaded Cartridge Valve

Material:: Carbon Steel

Structure:: Poppet Valve

Application:: Agricultural Equipment

After Warranty Service:: Online Support

Usage:: Machinery Hydraulic System

MOQ:: 1 Piece

Delivery Time:: 1-2Days

Product Overview

SV10-24
SOLENOID VALVE SPOOL, 2 PORT, NORMALLY CLOSED

A solenoid-operated, 2 port, normally closed, direct-acting, spool-type, screw in hydraulic cartridge valve, designed to operate as a bidirectional blocking valve.

When de-energized, the SV10-24X blocks flow in both directions. When energized, the cartridges spool shifts to open the
bidirectional flow path.

FEATURES AT A GLANCE

* Continuous-duty rated coil.
* Hardened precision spool and cage for long life.
* Optional coil voltages and terminations.
* Both ports may be fully pressurized.
* Efficient wet-armature construction.
* Unitized, molded coil design.
* Manual override option.
* Optional waterproof E-Coils rated up to IP69K.
* Industry common cavity.

PRODUCT SPECIFICATIONS

No	Item	Data
1	Pressure rating	207 bar (3000psi) - Note : 10% cycle life Proof pressure 690 bar (10000 psi) Burst pressure 1380 bar (20000 psi)
2	Flow Ratings	Flow rating 60 lpm (15 gpm)
	Maximum internal leakage	25 drops/min - Note : With 207 bar (3500 psi) at port 2
4	Cycle life	One million cycles
5	Temperature Ratings	Operating fluid temperature -40 to 100 °C (-40 to 212 °F) - Note : With buna N seals -26 to 204 °C (-15 to 400 °F) - Note : With fluorocarbon seals -54 to 107 °C (-65 to 225 °F) - Note : With urethane seals Storage temperature -40 to 70 °C (-40 to 160 °F) Ambient temperature -40 to 70 °C (-40 to 160 °F)
