Quick Details
-
Model:
-
BC-70
-
Concentration range:
-
0.0-100% Brix
-
Refractive index range:
-
1.3330~1.4655
-
Resolution:
-
0.1 %, refractive index 0.00002, temperature 0.1°C
-
Measurement accuracy:
-
+/- 0.1% absolute, or refractive index: +/- 0.0002
-
Measuring temperature:
-
0-80℃
-
Temperature compensation:
-
0-60°C
-
Ambient temperature:
-
0-60℃
-
Input power:
-
24V DC
-
Protection class:
-
IP67
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
BCST
-
Model:
-
BC-70
-
Concentration range:
-
0.0-100% Brix
-
Refractive index range:
-
1.3330~1.4655
-
Resolution:
-
0.1 %, refractive index 0.00002, temperature 0.1°C
-
Measurement accuracy:
-
+/- 0.1% absolute, or refractive index: +/- 0.0002
-
Measuring temperature:
-
0-80℃
-
Temperature compensation:
-
0-60°C
-
Ambient temperature:
-
0-60℃
-
Input power:
-
24V DC
-
Protection class:
-
IP67
Product Description

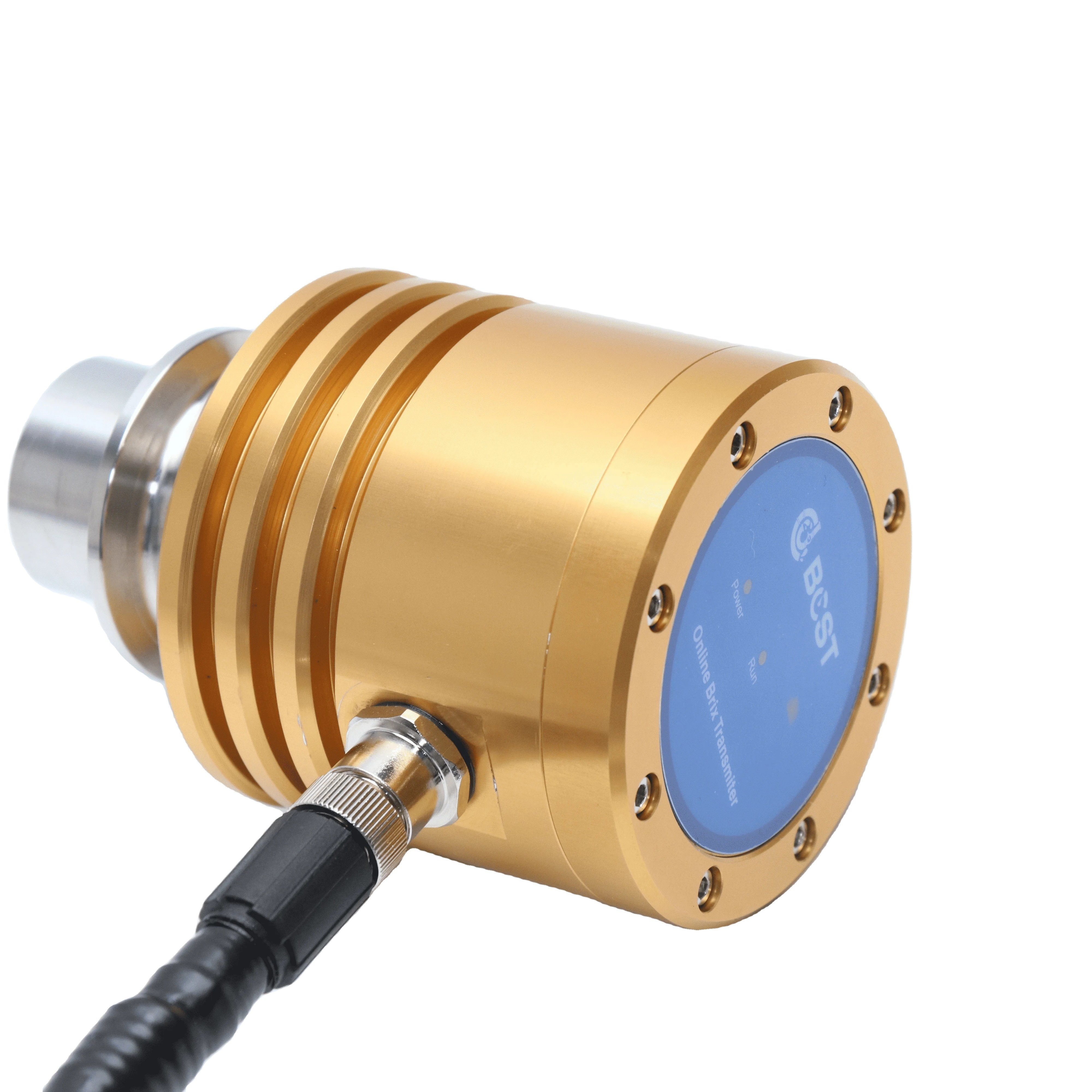

The Brix meter is usually installed as a bypass at the outlet of each circulation pump of the triple effect evaporator. It can monitor the concentration of juice, jam and sugar in each effect online and output the concentration value to the PLC for accurate PLC control to improve product quality, reduce production costs, achieve continuous production and increase production efficiency. It is also recommended for soft drinks mixing and filling, pharmaceutical evaporation and concentration processes.
Product Features
1. Flexible installation ( in pipes, tanks, reactors, storage tanks...), compact size, diversified installation methods;
2. Unaffected by colour, turbidity, viscosity..., changes in liquid pressure, sudden changes in flow, turbulence;
3. Factory calibration certificate, built-in temperature compensation, ready to use, no need for on-site calibration;
4. Simple and easy to understand operation;
5. Automatic data storage, easy to query;
6. Low power consumption, high stability and long service life.
Technical Parameters
| Model | BC-70 |
| Range | Determined by the actual working conditions in order to achieve the best possible accuracy and resolution |
| Concentration range | 0.0-100%Brix |
| Refractive index range | 1.3330-1.4655 |
| Resolution | 0.1%, refractive index 0.00002, temperature 0.1°C |
| Measurement accuracy | +/-0.1% absolute, or refractive index:+/-0.0002 |
| Measuring temperature | 0-80° C |
| Temperature compensation | Automatic temperature compensation, 0-60°C |
| Ambient temperature | 0-60°C |
| Material of key parts | Large wear-resistant sapphire, 9 Mohs hardness |
| Input power | 24V DC |
| Signal output |
|
| Protection class | IP67 |
| Pressure resistance range | ≤1MPa |
| Net weight | ≈1250g |
| Cleaning options | JC-C12 Ultrasonic cleaning components |
| Special scales | Off-standard customization, data modelling to customer requirements |
Shipping
FAQ
1. Who are we?
We are based in Jiangsu, China, start from 2000, sell to Domestic Market(90.00%), Southeast Asia(2.50%), Southern Europe(2.50%), North America(1.00%), South Asia(1.00%), Eastern Europe(1.00%), Central America(0.50%), South America(0.50%), Northern Europe(0.50%), Western Europe(0.20%), Africa(0.10%), Mid East(0.1%), Oceania(0.10%).
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final inspection before shipment.
3. What can you buy from us?
Flowmeter, level transmitter, pressure transmitter, temperature transmitter, control valve...
4. What should you buy from us not from other suppliers?
BCST GROUP is the professional supplier for process instruments. Our team has 12 years exported experiences for international business in this industry. Our factory has 20 years manufacturing experiences. Our products are approved by ISO, CE, Rohs SIL2.
5. What services can we provide?
Accepted Delivery Terms: FOB, CIF, EXW, DDP, Express Delivery;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, PayPal, Cash;
Language Spoken: English , Chinese
