Quick Details
-
Speed::
-
High speed: 30km/h, low speed: 5-25km/h
-
Motor Selection::
-
DC 72V 3kw*2
-
Battery::
-
72V200ah lithium battery
-
Duration::
-
6-8h
-
Climbing::
-
≤30°
-
Track Width::
-
230mm
Quick Details
-
Place of Origin:
-
China
-
Name:
-
Entertainment tank vehicle
-
Design Size (mm)::
-
L2150mm*W1500mm*H1050mm
-
Speed::
-
High speed: 30km/h, low speed: 5-25km/h
-
Motor Selection::
-
DC 72V 3kw*2
-
Battery::
-
72V200ah lithium battery
-
Duration::
-
6-8h
-
Climbing::
-
≤30°
-
Track Width::
-
230mm

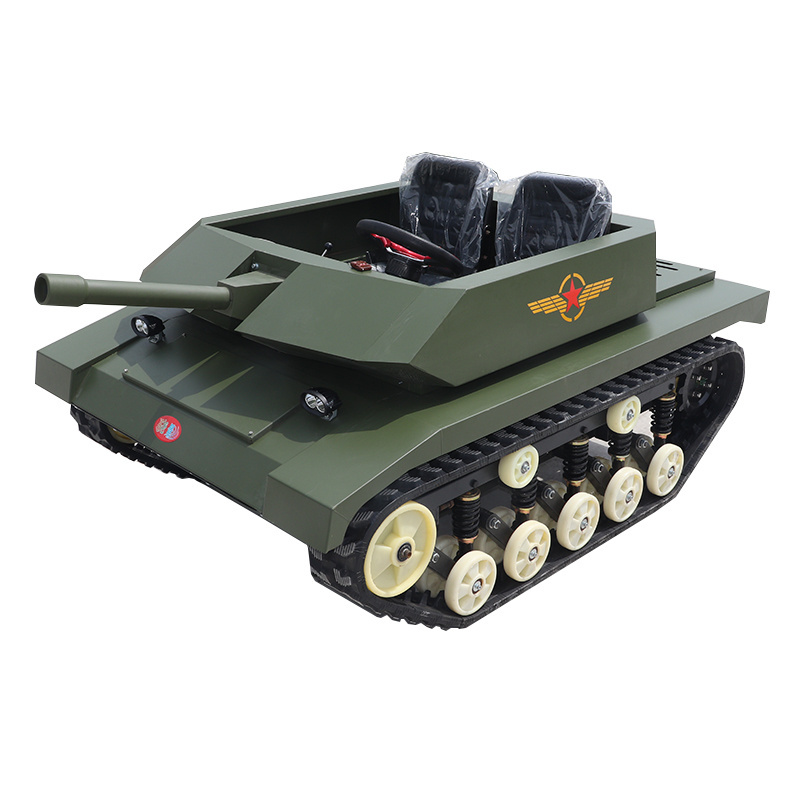

Introduction:
It is designed by scaling down the real tank, retains the appearance of the real tank, which is very eye-catching. According to
specifications, it can be divided into single person version and double person version. The single person version is mainly
suitable for children over 8 years old and adults to drive alone, while the double person version is usually driven and played by
parents with their children.
Applications: in tourist attraction, field exercise area, youth summer camps, science and technology museums, large-scale
exhibitions, amusement parks and other places.
Features:
1. Use high efficiency and energy saving DC brushless motors, lithium batteries with strong endurance and no exhaust emissions.
2. Dual-motor dual-drive gearbox transmission bridge drives rubber tracks to walk, novel and unique shape.
3. With advantages of easy operation, good flexibility, good stability, strong power, good passability, small turning diameter
(can turn around 360 °in zero radius), strong climbing ability, and comfortable driving.
4. All terrain driving, good driving stability and passability on the beach, snow, and soft grasslands.
5. Steering wheel and steering system: The controller induction device is driven by rotating the steering wheel, so as to change
the speed of the left and right motors to achieve differential steering. When turning the steering wheel to the left until it
stops moving, the left motor stops rotating and supplemented by the left drive wheel hydraulic brake, so that the vehicle turns
towards the left in small radius. When turning the steering wheel to the right until it stops moving, the right motor stops
rotating and supplemented by the right drive wheel hydraulic brake, so that the vehicle turns towards the right in small radius.
It is designed by scaling down the real tank, retains the appearance of the real tank, which is very eye-catching. According to
specifications, it can be divided into single person version and double person version. The single person version is mainly
suitable for children over 8 years old and adults to drive alone, while the double person version is usually driven and played by
parents with their children.
Applications: in tourist attraction, field exercise area, youth summer camps, science and technology museums, large-scale
exhibitions, amusement parks and other places.
Features:
1. Use high efficiency and energy saving DC brushless motors, lithium batteries with strong endurance and no exhaust emissions.
2. Dual-motor dual-drive gearbox transmission bridge drives rubber tracks to walk, novel and unique shape.
3. With advantages of easy operation, good flexibility, good stability, strong power, good passability, small turning diameter
(can turn around 360 °in zero radius), strong climbing ability, and comfortable driving.
4. All terrain driving, good driving stability and passability on the beach, snow, and soft grasslands.
5. Steering wheel and steering system: The controller induction device is driven by rotating the steering wheel, so as to change
the speed of the left and right motors to achieve differential steering. When turning the steering wheel to the left until it
stops moving, the left motor stops rotating and supplemented by the left drive wheel hydraulic brake, so that the vehicle turns
towards the left in small radius. When turning the steering wheel to the right until it stops moving, the right motor stops
rotating and supplemented by the right drive wheel hydraulic brake, so that the vehicle turns towards the right in small radius.
|
Model
|
|
AVT-T01
|
|
|
|||
|
Type
|
|
Steering-wheel-type all-terrain off-road tracked vehicle
|
|
|
|||
|
Size
|
|
L2150mm*W1500mm*H1050mm (excluding barrel and anti-roll cage)
|
|
|
|||
|
Power
|
|
DC 72V 3kw*2 |
|
|
|||
|
Track model
|
|
230mm*72mm*60-link engineering tracks (track grounding: 1250mm)
|
|
|
|||
|
Battery
|
|
72V200ah lithium battery; 6-8 hours' service life after one charge
|
|
|
|||
|
Adjustable speed
|
|
High speed: 30km/h, low speed: 5-25km/h |
|
|
|||
|
Directional lever
|
|
Cross five-gear directional lever (Null, forward, rear, left; right)
|
|
|
|||
|
Optional feature
|
|
Remote control timing; scanning payment timing
|
|
|
|||
|
Maximum climbing angle
|
|
40°
|
|
|
|||
|
Maximum dynamic roll angle
|
|
30°
|
|
|
|||
|
Services
|
|
|
|
1 year warranty for main parts
|
During this period, in case of damage or breakdown, we will repair to replace spare part freely, while the buyer should bear overseas freight.
|
|
|
Spare Parts
|
most of our spare parts are compatible with international standard. While, we offer spare parts all year round at cost price for our former clients.
|
|
|
Operation and Maintenance
|
we will offer you detailed operation manual, ensuring you can use it perfectly.
|
|
|
Online support
|
Video technical support
|
|
|
Online Service
|
your question will be answer within 24 hours during working days, 48 hours during holiday.
|
|
