Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
E-TECH
-
Model Number:
-
HJ-004G-E
-
Torque:
-
12nm
-

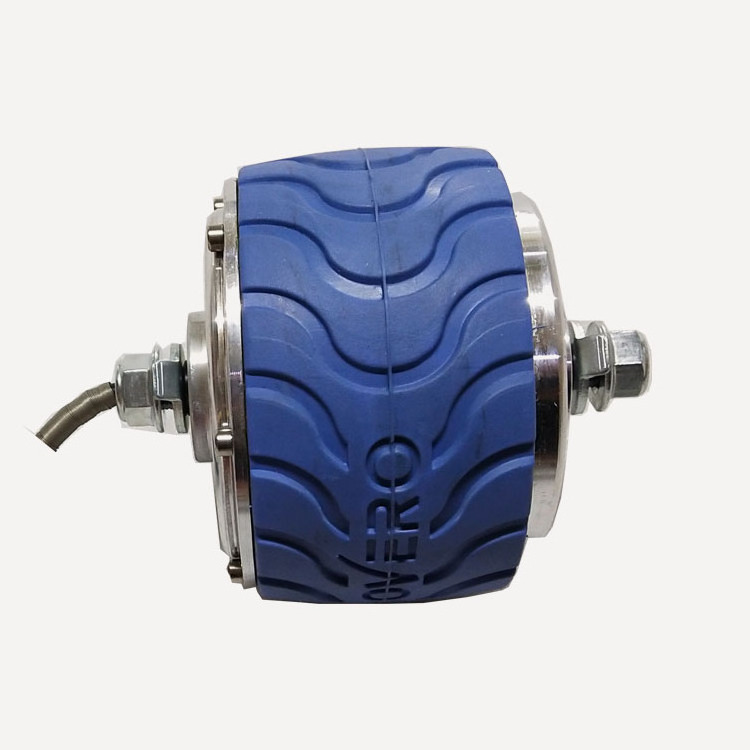

Product Name:
-
BLDC Motor
-
Application:
-
service robotics
-
Weight:
-
2kg
-
Diameter:
-
110mm
-
Noise:
-
55db
-
Input voltage:
-
12v/24v/36v/48vdc
-
Shaft type:
-
Single Double Shaft Optional
-
MOQ:
-
1 Pcs
-
Rated Voltage:
-
24VDC
-
encoder:
-
1024ppr incremental encoder
Quick Details
-
Speed(RPM):
-
max 400rpm
-
Continuous Current(A):
-
<0.8A
-
Efficiency:
-
IE 4
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
E-TECH
-
Model Number:
-
HJ-004G-E
-
Torque:
-
12nm
-
Product Name:
-
BLDC Motor
-
Application:
-
service robotics
-
Weight:
-
2kg
-
Diameter:
-
110mm
-
Noise:
-
55db
-
Input voltage:
-
12v/24v/36v/48vdc
-
Shaft type:
-
Single Double Shaft Optional
-
MOQ:
-
1 Pcs
-
Rated Voltage:
-
24VDC
-
encoder:
-
1024ppr incremental encoder
| Place of Origin | Sichuan, China (Mainland) |
| Certification | CE |
| Commutation | Brushless |
| Continuous Current(A) | 1.3-12.4A |
| Efficiency | IE 4 |
| Noise | 55db |
| Motor type | Brushless DC Motor |
| Usage | robotics, agv, etc. |
| Speed(RPM) | Max 600(r/min) |
| Voltage | DC 24V/36V/48V |
| Power | MAX:250W |
| Speed | MAX:6km/h |
| Brake | EBS brake |
| Tire | solid rubber tire |
| Weight | 2KG for one motor with tire |
| Cable | 3 motor phase , 5 hall sensor, 2 encoder wire |
| Color | blue |
Motor phase line
First phase: U. thick green wire
Second phase: V. thick blue wire
Third phase: W. thick yellow wire
Hall sensor
Positive pole: +5V red wire
Negative pole: GND black wire
First phase: A(Uu). thin green wire
Second phase: B(Vv). thin blue wire
Third phase: C(Ww). thin yellow wire
Encoder
B pulse: grey or orange thin wire
