Quick Details
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
JM-P1530
-
Voltage:
-
Other
-
Product name:
-
push-pull megative pressure fan
-
Material:
-
Stainless steel
-
Color:
-
silver
-
Size:
-
1530*1530*450
-
Characteristic:
-
large air volume
-
Application:
-
Ventilation Cooling
-
MOQ:
-
10 Pcs
-
Keyword:
-
Exhaust Fan Ventilation
-
Feature:
-
Saving Energy
Quick Details
-
Applicable Industries:
-
Ventilation Cooling
-
Electric Current Type:
-
AC
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Shandong, China
-
Model Number:
-
JM-P1530
-
Voltage:
-
Other
-
Product name:
-
push-pull megative pressure fan
-
Material:
-
Stainless steel
-
Color:
-
silver
-
Size:
-
1530*1530*450
-
Characteristic:
-
large air volume
-
Application:
-
Ventilation Cooling
-
MOQ:
-
10 Pcs
-
Keyword:
-
Exhaust Fan Ventilation
-
Feature:
-
Saving Energy
|
Push-Pull Negative Pressure Fan
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Dimension
(mm)
|
Weight
(kg)
|
Air Flow
(m3/h)
|
Motor
(kw)
|
Pressure
(pa)
|
Noise Decibels
(db)
|
Voltage
(v)
|
|||||||
|
1000
|
1000*1000*450
|
30
|
35000
|
0.75
|
65
|
≤65
|
380
|
|||||||
|
1100
|
1100*1100*450
|
35
|
40000
|
0.75
|
65
|
≤65
|
380
|
|||||||
|
1380
|
1380*1380*450
|
50
|
45000
|
1.1
|
70
|
≤70
|
380
|
|||||||
|
1530
|
1530*1530*450
|
60
|
57000
|
1.5
|
70
|
≤70
|
380
|
|||||||
Product Description
Product Application

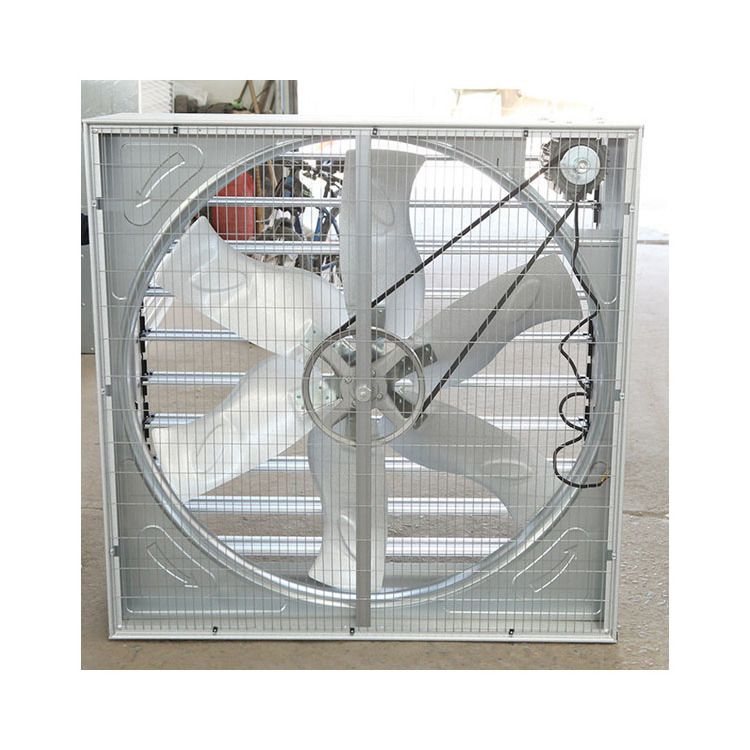

Exhaust fan is also called
push-pull megative pressure fan
. It's an axial fan.Mainly used for ventilation and temperature cooling . It is a more economical ventilation and cooling products. It has a simple structure, easy to maintenance, large air volume, easy to install, etc.It's widely used in factory, greenhouse, poultry farm, livestock farm, etc.
Main Features
1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally
3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured.
4) Wall-Mounting fan , easy installation and maintenance
5) Belt Drive, Big airflow
Precautions for fan installation：
1. When installing the fan, the fan should be adjusted horizontally and vertically to keep the smooth operation of the fan blades.
2. After fixing the fan, the remaining gap is sealed.
3. If the screw hole cannot be installed, a self-tapping screw can be made on the surface to fix it.
|
Product Name
|
push-pull megative pressure fan
|
|
Material
|
Stainless steel
|
|
Color
|
silver
|
|
Size
|
1530*1530*450
|
|
Characteristic
|
large air volume
|
|
MOQ
|
10 pcs
|
Fan plate thickness: shell material thickness is 1.5cm, thickened and upgraded, durable quality, stable body, low noise operation
Fan housing: the housing has been tested and adjusted for many times and adopts a reasonable shape, which makes it easier to install and secure
Fan shutter: 90 ° automatic closing shutter, which will open automatically when the machine is opened. It is made of new PVC material and should not be broken
Fan blade: the fan blade is thickened and enlarged, and its toughness is strengthened without deformation and fracture. The reasonable shape makes the fan volume larger
Fan belt adopts Samsung belt imported from Japan. Strong toughness, long service life, more solid, not easy to deform
Fan electromechanical: It is independently researched, developed and produced with pure copper core enclosed motor, and the direct drive design is moisture resistant, moisture-proof and corrosion resistant
