Quick Details
-
Brand Name:
-
Hisource
-
Model Number:
-
Hi-AT13FL
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Waterproof PoE Extender
-
Lan/PoE Ports:
-
1 in 3 out
-
POE in:
-
DC52/44-57v
-
Distance:
-
100M
-
Cable:
-
Cat5 or above
-
POE out:
-
≤30w
-
Connector:
-
RJ45
-
PoE Ports:
-
3*10/100Mbps PoE Ports
-
Repeater mod:
-
Store and forward
-
Device Type:
-
poe extender
Quick Details
-
Transmission Rate:
-
10/100 Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1Gbps
-
Brand Name:
-
Hisource
-
Model Number:
-
Hi-AT13FL
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Waterproof PoE Extender
-
Lan/PoE Ports:
-
1 in 3 out
-
POE in:
-
DC52/44-57v
-
Distance:
-
100M
-
Cable:
-
Cat5 or above
-
POE out:
-
≤30w
-
Connector:
-
RJ45
-
PoE Ports:
-
3*10/100Mbps PoE Ports
-
Repeater mod:
-
Store and forward
-
Device Type:
-
poe extender

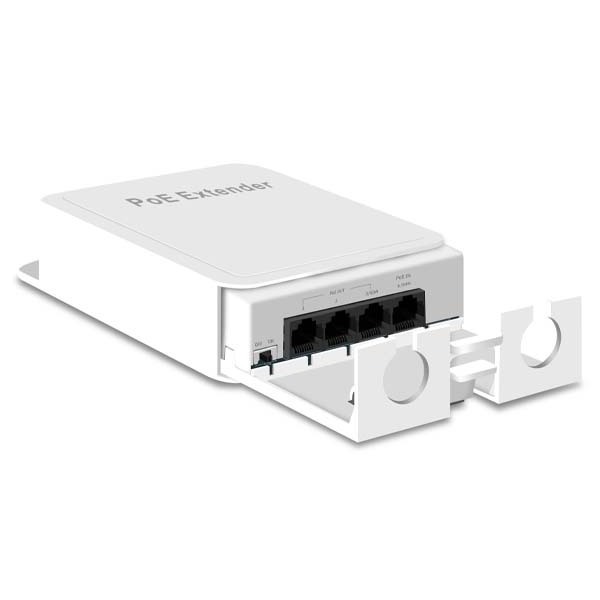

Ethernet Converter 250m Long Range Network Repeater Extender 4 Port Waterproof Switch
Hi-AT13FL is a 100Mbps Ethernet PoE repeater, which provides 1*100Mbps IEEE802.3af/at(PoE) powered port input and 3*100Mbps IEEE802.3af/at(PoE) powered ports output. The whole power is 30W, and the average output power is 8W per port. It c an be applied to outdoor application scenarios.
|
Network Standard |
IEEE 802.3 , IEEE 802.3u , IEEE 802.3x |
|
Port |
3*10/100Mbps RJ45 power supply port 1*10/100Mbps RJ45 receiving port |
|
POE Power |
The whole power is 30W Output power of single port is 24W, average output power per port is 8W |
|
POE Connection |
POE input receiving wire core : 1/2+ , 3/6- , 4/5+ , 7/8- POE output power supply core : 1/2+ , 3/6-
100M Transmission |
|
Performance |
Store and forward MAC address table 1k Switching capacity 1.6Gbps |
|
Forwarding Rate |
10BASE-T:14880PPS/port 100BASE-tx : 148800pps/port |
|
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode |
|
Environment |
Operating Temperature : -10℃ - -55℃ |
|
Power |
Input : DC44-57V , 30W ; Output : DC44-57V , 24W |
|
Weight &Size |
55g 95mm × 130mm × 35mm(L × W × H) |
Q1:How long is the warranty?
A1: 2 years free repair and lifetime technical support provided after the shipment date.
Q2:Can we get lower price?Any discount?
A2:Yes,prices vary according to quantity.
Q3:Can I have a sample order of this product?
A3:Yes,we welcome sample order for you to test and check the quality.
Q4:How about the label and the logo?
A4: Customize label and logo is workable.(Single model 500+)
Q5:Which countries have your products been exported to?
A5:Our products are exported to more than 100 countries and regions,such as Germany,the united Kingdom,Dubai,the untied states,Canada,Singapore,South Korea,Japan,Brazil,Egypt,and South Africa and so on.
