Quick Details
-
Product name:
-
Fire Fighting Robot
-
Model:
-
RXR-M80BD
-
Application:
-
Fire Fighting Emergency Rescue
-
Packing:
-
International Standard Wooden Box
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AOLAI
-
Model Number:
-
Robot for fire extinguishing
-
Product name:
-
Fire Fighting Robot
-
Model:
-
RXR-M80BD
-
Application:
-
Fire Fighting Emergency Rescue
-
Packing:
-
International Standard Wooden Box

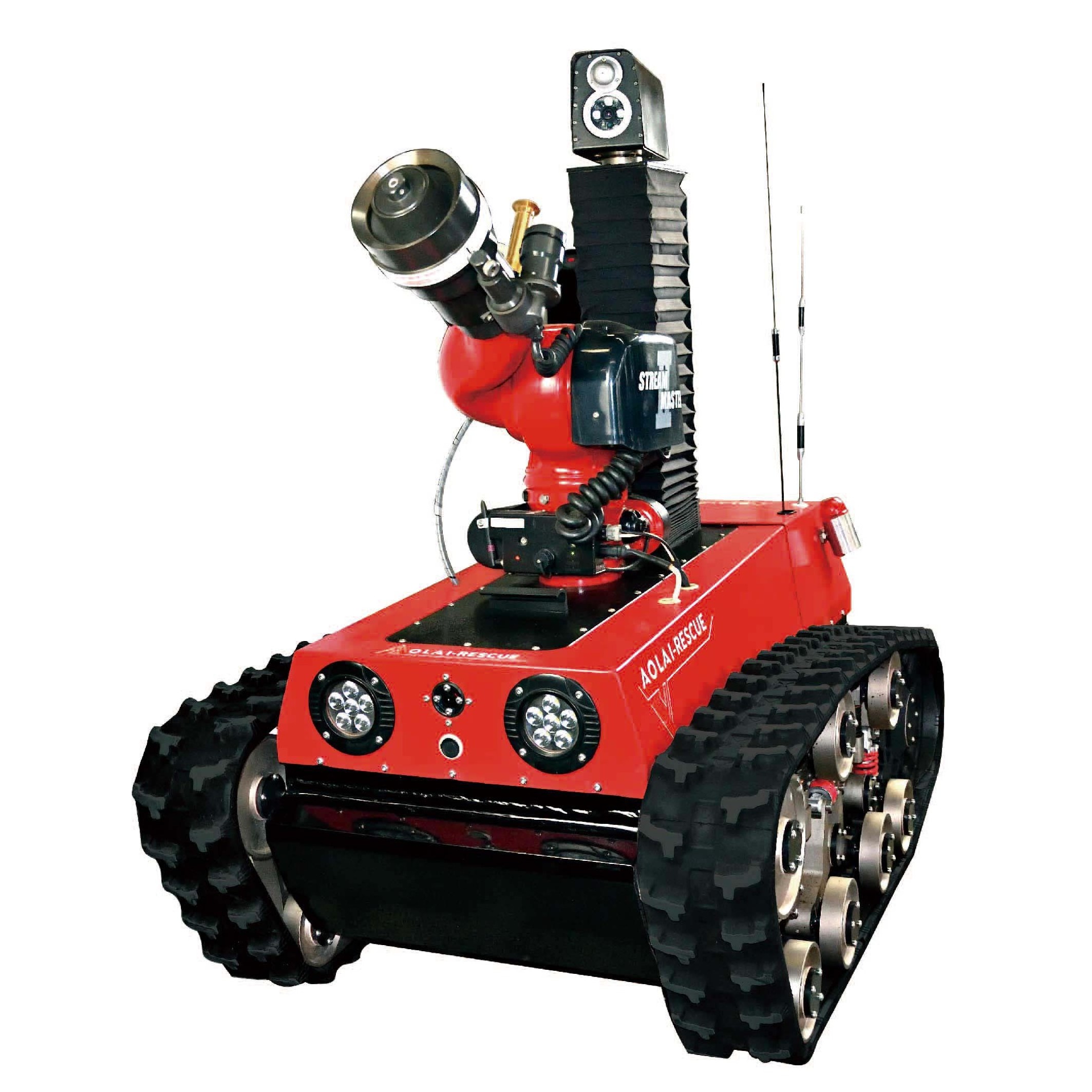

Mobile Firefighting Rescue Robot
The multifunctional fire robot RXR-MC80BD is a remote control robot that can provide a lot of help for fire rescue.
Powered by battery, the fire robot RXR-MC80BD can work for 8 hours, it also equipment with water cannon and detector.
| Item | Specification | Item | Specification |
| Weight (kg) | 530 | Dimention (LxWxH mm) | 1400x840x1220 |
|
Ground clearance (mm)
|
200 | Ascend slopes (°) | 35 |
| Obstacle height(mm) | 200 | Speed (m/s) | 1.6 |
| Working time (h) | 2-8 | ControlRemote control (meters) | 750 |
| Battery | 48V 92Ah | Brake mode | Electromagnetic brake |
Equipped with electronic control water cannon, the flow is 80 L/s.
| Item | Specification | Item | Specification |
| Working pressure | 1.0MPa | Water supply interface |
80mm×2 |
| Range | 83m | Flow | 80L/s |
| Horizontal movement angle | -135°~+90° | Vertical movement angle | -15°~+90° |
Gas detection module is loaded on the platform with camera, microphone and detector, can provide the photos, voice and the data of dangerous gas to rescuers.
Detecting gas oxygen 0-25%, carbon monoxide 1000ppm, combustible gas 0-100%LEL, hydrogen sulfide 100ppm, ammonia gas 500ppm, sulfur dioxide 200ppm and other 1 to 6 kinds of gas combinations.
Camera
Resolution 800 lines
Signal system PAL
Signal to noise ratio ≥50dB
