- Product Details
- {{item.text}}
Quick Details
-
Max. Loading Capacity:
-
50-5000L
-
Weight (KG):
-
50 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZH
-
Voltage:
-
220V or 380V or 415V
-
Dimension(L*W*H):
-
600*300*500mm
-
Power (kW):
-
5 kW
-
emulsion pump:
-
emulsion pump,high shear pump,homogenizing pump
-
Connection:
-
Clamp, Thread, Welded, Flange
-
MOQ:
-
1 piece
-
Motor Power:
-
1.5--132kw
-
Color:
-
steel true colors
-
Application scope:
-
dairy,food,beverage,cosmetic
-
Packing:
-
plywood or customized
-
Motor:
-
ABB/domestic
-
Delivery details:
-
Usually within 15 days after payment
Quick Details
-
Barrel Volume (L):
-
2000
-
Max. Loading Volume (L):
-
20000 L
-
Range of Spindle Speed(r.p.m):
-
1 - 2800 r.p.m
-
Max. Loading Capacity:
-
50-5000L
-
Weight (KG):
-
50 KG
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZH
-
Voltage:
-
220V or 380V or 415V
-
Dimension(L*W*H):
-
600*300*500mm
-
Power (kW):
-
5 kW
-
emulsion pump:
-
emulsion pump,high shear pump,homogenizing pump
-
Connection:
-
Clamp, Thread, Welded, Flange
-
MOQ:
-
1 piece
-
Motor Power:
-
1.5--132kw
-
Color:
-
steel true colors
-
Application scope:
-
dairy,food,beverage,cosmetic
-
Packing:
-
plywood or customized
-
Motor:
-
ABB/domestic
-
Delivery details:
-
Usually within 15 days after payment
Product Description
Operation Principle

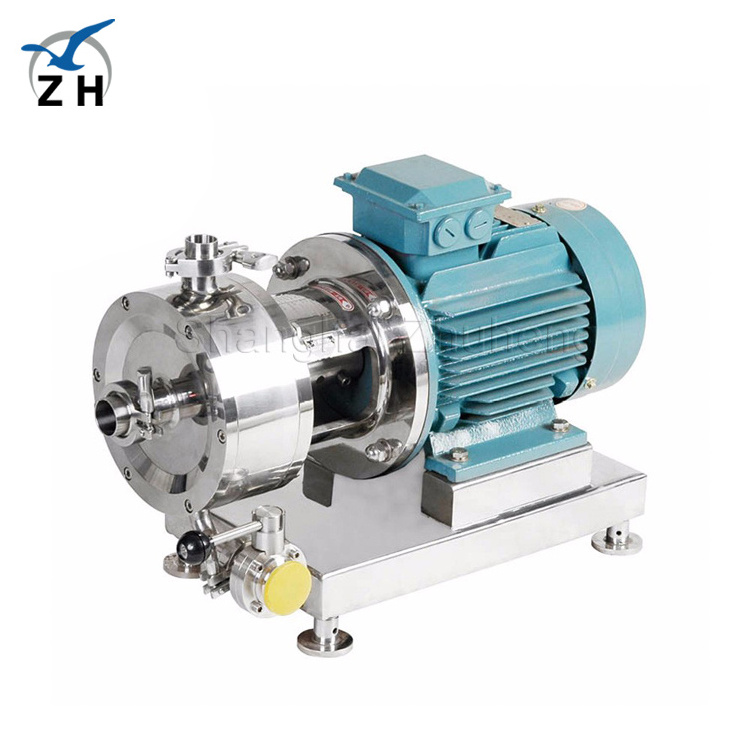

Zhuheng Pipeline high shear dispersing emulsifier is a high performance equipment used for continuous production or circulated treatment of fine material. In the small chamber, there are 1-3 sets of paired and clutched stators and rotor. Driven by motor, the rotor revolve quickly and produces a strong axial suction force which intakes the material to the chamber. The machine disperses, shears and emulsifies the material in shortest time and the diameter range of the particles gets smaller so that fine and stable products are produce.
|
How to choose
|
|
|
|
|||
|
Model
|
Power(kw)
|
Rotation speed (r/min)
|
Capacity(m3/h)
|
|||
|
BRL1-60
|
1.5
|
2800
|
0-1.5
|
|||
|
BRL1-100
|
2.2
|
2800
|
0-3
|
|||
|
BRL1-165
|
7.5
|
2800
|
0-8
|
|||
|
BRL1-185
|
15
|
2800
|
0-18
|
|||
|
BRL1-210
|
30
|
2800
|
0-35
|
|||
|
BRL1-230
|
45
|
2800
|
0-50
|
|||
|
BRL1-260
|
75
|
2800
|
0-90
|
|||
|
BRL1-275
|
90
|
2800
|
0-110
|
|||
|
BRL1-280
|
132
|
2800
|
0-130
|
|||
Advantages
1. Mass production suitable for continuous production of industrialized assembly line
2. Small diameter range, and highly even
3. Time saving, highly efficient and energy saving
4. Low noise, stable operation
5. Reduced quality difference between lots
6. Material is fully dispersed and sheared
7. Deliver in short distance with low lift
8. Easy operation, convenient maintenance
9. Automatic control
mixing mixer vacuum emulsifying machine
Applications
Fine chemical:
pigment, glue, sealing compound, resin emulsifying, germicidal agent, coagulating agent
Petroleum chemical:
lubricating grease, diesel emulsifying, asphalt modification, catalyst, paraffin emulsification
Coating&oil inks:
printing ink, emulsion coating, construction coating, auto paint, coating auxiliary agent
Pesticides:
bactericidal agent, seed coating agent, herbicide, pesticide emulsified oil, fertilizer, biological pesticide
Nanometer material:
dispersing and dispolymerizing nanometer material, extracting nanometer products in chemical reaction
Food industry:
juice, jam. jelly, ice cream, dairy products additive, tea drinking
Daily Chemicals:
detergent, shampoo, cream, lipstick, cleaning facial milk, daily essence
Paper making:
pulp, adhesive, rosin emulsification, paper making additive, resin emulsification
Product Details
Product Show
Related Products
Main Products
About Us
Shanghai Zhuheng has been the domestic famous brand of the professional high precision liquid equipments manufacturers since 2007 . We have five business departments:sanitary stainless steel tank department,sanitary pumps deaprtment,stainless steel homogenizing sterilization department,sanitary valves and fittings department and stainlesssteel filter and water treatment department.Our products are widely used in beer,grape wine,white wine,dairy,food,beverage,ice-cream,cosmetic,chemical and other industries.
FAQ
Q: How long have you worked in this field?
A: Over 15 years.
Q:What's the delivery time?
A: Standard products will be 10-15 days after receive your down payment or full payment.
Q: Can your factory produce products according to our drawings or samples?
A: Yes, of course we can.
Q: Are you manufacturer or trading company ?
A: We are a professional manufacturer.
Q: What is your factory's biggest advantage?
A: Technology is our core competitiveness.
