- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
CWJX
-
Weight (KG):
-
600 KG
-
item:
-
food grinder machine
-
Material contact parts:
-
stainless steel 304 or 316
-
Name:
-
Ultrafine Grinding Machine
Quick Details
-
Output (kg/h):
-
20 - 1000 kg/h
-
Feeding Size (mm):
-
6 - 15 mm
-
Output Size (mesh):
-
12 - 120 mesh
-
Place of Origin:
-
China
-
Brand Name:
-
CWJX
-
Weight (KG):
-
600 KG
-
item:
-
food grinder machine
-
Material contact parts:
-
stainless steel 304 or 316
-
Name:
-
Ultrafine Grinding Machine

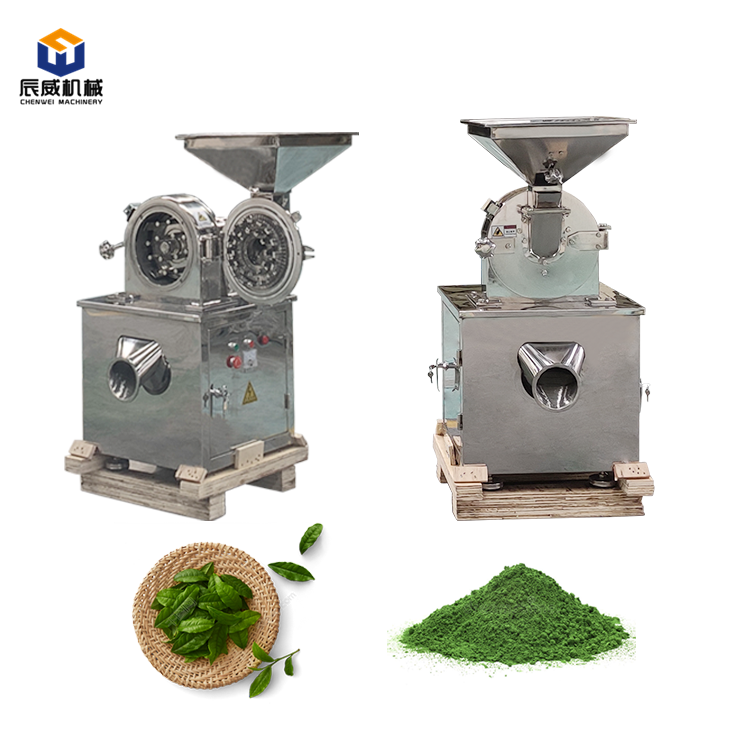

Product Description
The grinder machine uses the high-speed relative movement of the movable tooth plate and the fixed tooth plate, so that the pulverized material is crushed by the combined action of the teeth impact, friction, and the impact between the materials. The crushed material can be directly discharged from the host grinding chamber, the size of the particle size is obtained by replacing the different mesh sieves.
|
CWUP-series universal crusher
|
|
|
|
|
|
|||||
|
Model
|
Capacity (kg/h)
|
Speed (rpm)
|
Feed size(mm)
|
Crush size (mm)
|
Power (kw)
|
|||||
|
20B
|
20-150
|
4500
|
6
|
12-120
|
4
|
|||||
|
30B
|
30-300
|
3800
|
10
|
12-120
|
5.5
|
|||||
|
40B
|
40-400
|
3400
|
12
|
12-120
|
7.5
|
|||||
|
50B
|
80-500
|
2900
|
12
|
12-120
|
11
|
|||||
|
60B
|
100-600
|
2400
|
15
|
12-120
|
22
|
|||||
|
80B
|
200-1000
|
2200
|
15
|
12-120
|
37
|
|||||
Application of universal grinder
This pin mill is widely used in Food, chemical and other industries.
Detailed Images
Cutterhead high-speed rotation shear grinding.There is a screen outside the cutter head for filtration. After crushing, the powder passes through the screen and enters the discharge port.
Stainless steel screen
: Change the mesh size ，then change the powder size.The screen in the machine is available with the following apertures: 0.4, 0.6, 0.7, 0.8, 1, 1.5, 2, 2.5 mm. Pin mill for spicy, rice, seed, nuts crushing to 20-120 mesh.
Main Features of universal grinder
1.
Strictly made by food grade materials, and can meet GMP standard.
2.
Stable quality of finished product with low consumption to save cost.
3.
Simple structure, convenient cleaning and low noise.
4.
The machine can be equipped with dust collector, no fine powder flying during the grinding process.
Inspection machine
Every product is checked for normal operation before shipment. This is the guarantee we provide to our customers. The following scene is the scene of wheat bran test machine.
Machine Show
Our Service
*
QC engineer to control raw material and final machine quality
Our Company
Xinxiang Chenwei Machinery Co., Ltd. is an innovative enterprise that integrating technology R&D, processing, manufacturing and trade services. Our company is mainly devoted ourselves to the design, fabrication and installation of screening, conveying, mixing, crushing and other related products. We have 10 years of overseas after-sales experience, provide 24-hour online service, 365-day machine warranty, and have more than 50 patented technologies.
FAQ
Q1: What's the raw material you want to grind? (Like chili, sugar, herbs...etc) Q2: What's the size of your raw material? (Such as 10 mm,15 mm...etc) Q3: What's the capacity of the machine you need? (Like 50 kg/hr, 300 kg/hr,500 kg/hr..etc) Q4: What's the finished powder fineness you want to get? (mesh, mm or micron) Q5: What power do you use in your factory?-V,-Hz, 3 phase or single phase? ( L ike 220 V , 50 Hz , single or 380 V, 60 Hz , 3 phase... etc )
We are happy to offer you the best products at competitive prices.
There are also quotations for other models of our production, please feel If you have any requirements, you can
contact us
at any time.
