Quick Details
-
Model Number:
-
A150-T50-P3-B
-
Brand Name:
-
Tonhe
-
Rated Voltage:
-
DC12V/DC24V/AC24V/230V
-
Life Time:
-
70000 Times
-
Certification:
-
CE, RoSH,IP67,NSF61
-
Material:
-
PVC
-
Open.closed time:
-
≤10 S
-
Connection:
-
ISO5211
-
Seal Material:
-
EPDM & PTFE
-
Maximum working pressure:
-
1.5MP
Quick Details
-
Port Size:
-
2"
-
Warranty:
-
1 years, One year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
A150-T50-P3-B
-
Brand Name:
-
Tonhe
-
Rated Voltage:
-
DC12V/DC24V/AC24V/230V
-
Life Time:
-
70000 Times
-
Certification:
-
CE, RoSH,IP67,NSF61
-
Material:
-
PVC
-
Open.closed time:
-
≤10 S
-
Connection:
-
ISO5211
-
Seal Material:
-
EPDM & PTFE
-
Maximum working pressure:
-
1.5MP

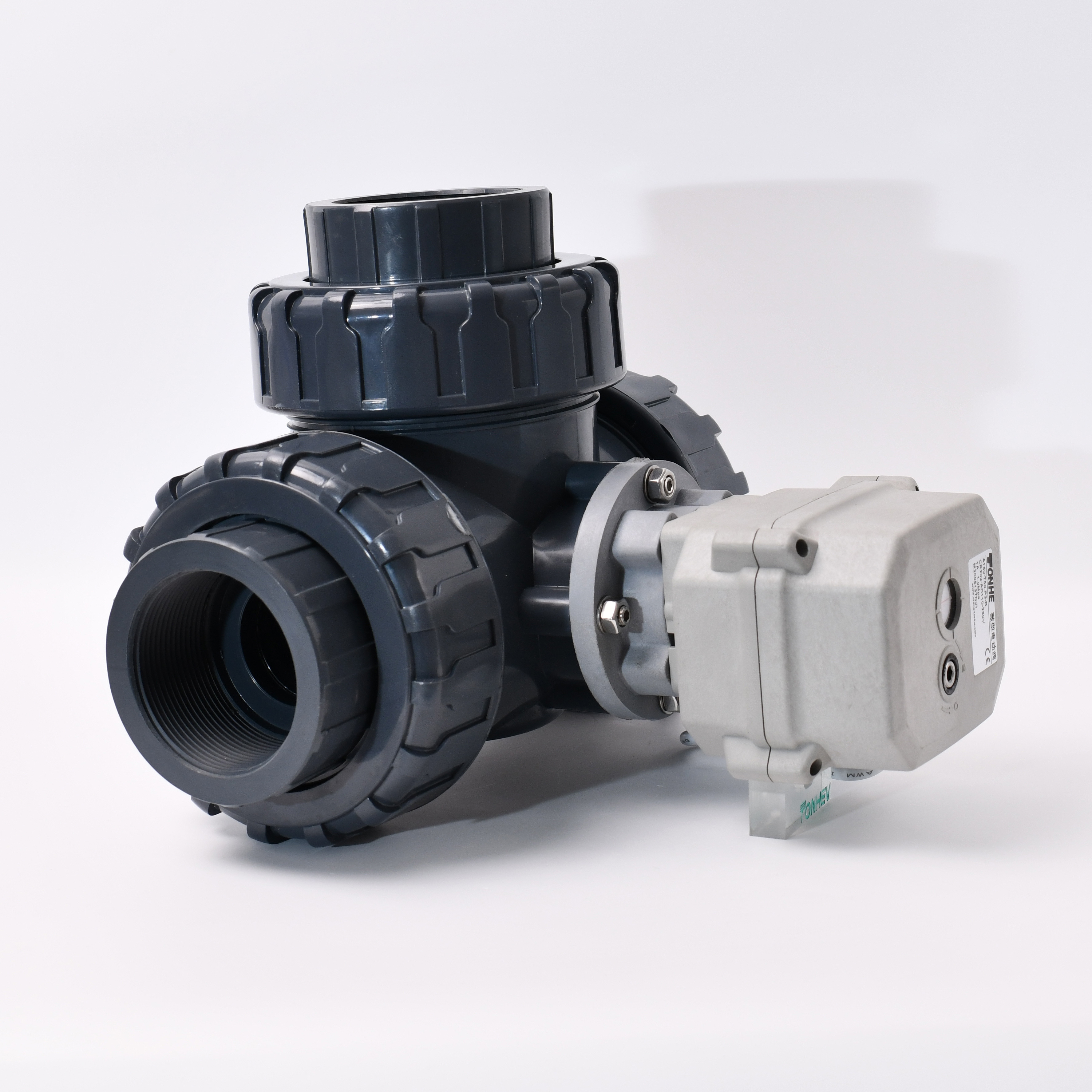

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/2”~2’’) .And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.Our company also approved SGS ISO9001 in 2013 .
| Size |
NPT/BSP 2"
|
| Material | PVC/UPVC |
| Fields of applications | Fluid, Air |
| Maximum working pressure | 1.3MPa |
| Rated Voltage | DC12V,DC24V,AC24V |
| Packaging | Standard export package or Customized |
| Payment | L/C,D/P,T/T |
| Motor |
A150 Actuator
ISO5211 F03,, F05 |
Technical Parameters:
Valve size ------------------- 2 “
Valve Body material ------- PVC/UPVC
Actuator material ---------- Engineering Plastics
Sealing material ------------ EFKM & PTFE
Rated voltage -------------- DC12V,DC24V
Working current ----------- ≤1.5A
Life time ------------------- 70,000~100000 times
Protection class ----------- IP67
Open/close time --------- ≤10S
Actuator rotation --------- 90°
Max. torque force --------- 15Nm
Cable Length --------------- 0.5m, 1.5m (Optional)
Manual override ---------- No
Indicator ------------------ Yes
Maximum working pressure --------- 1.0MPa
Environment temperature ---------- -15℃~60℃
Liquid temperature ------------------ 2℃~90℃
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can
totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
TONHE is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved
CE certification and SS valve approved NSF61 international certification.
we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .
