TG-3100 300mm measuring range Ultrasonic Thickness gauge

TG-3100 300mm measuring range Ultrasonic Thickness gauge

Features

1. Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials

2. Transducer models are available for special application, including for coarse grain material and high temperature applications

3. Two-Point Calibration function

4. Two work modes  Single point mode and Scan mode

5. Coupling status indicator showing the coupling status

6. Optional software to process the memory data on the PC

7 Optional thermal mini-printer to print the measured data via RS232 port

Specifications

1 .Display  4.5 digits LCD with EL backlight

2.Measuring Range  0.75~300mm (in Steel)

3. Sound Velocity Range  1000~9999 m/s

4. Resolution  0.1/0.01mm

5.Accuracy   ±(0.5%Thickness+0.04)mm, depends on materials and conditions

6. Units Metric/Imperial unit selectable

7. Four measurements readings per second for single point measurement, and ten per second for Scan Mode

8. Memory for up to 20 files (up to 99 values for each file) of stored values

9. Power Source   Two AA size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off)

10. Communication   RS232 serial port

11. Outline dimensions  150×74×32 mm

12.  Weight  245g

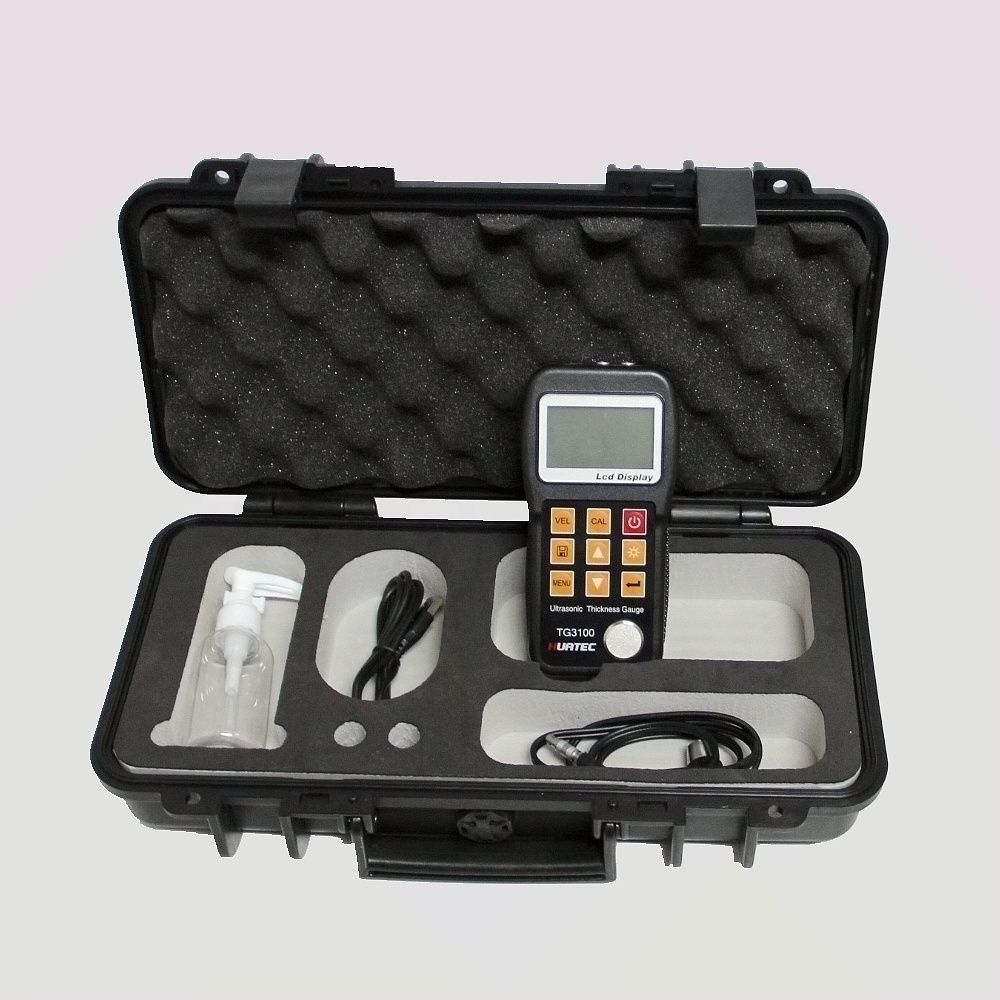

Configuration
