Quick Details
-
Name:
-
hvac system aluminum metal floor air register
-
Materail:
-
aluminium alloy
-
Material Thickness:
-
3mm or upon your request
-
Surface finish:
-
Anodized
-
Color:
-
Silver
-
sampe:
-
free
-
Size:
-
Available
-
feature:
-
Fixed core
-
Place to install:
-
install on floor, wall, ceiling
-
Function:
-
floor
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XUXING
-
Model Number:
-
FG-A2
-
Name:
-
hvac system aluminum metal floor air register
-
Materail:
-
aluminium alloy
-
Material Thickness:
-
3mm or upon your request
-
Surface finish:
-
Anodized
-
Color:
-
Silver
-
sampe:
-
free
-
Size:
-
Available
-
feature:
-
Fixed core
-
Place to install:
-
install on floor, wall, ceiling
-
Function:
-
floor

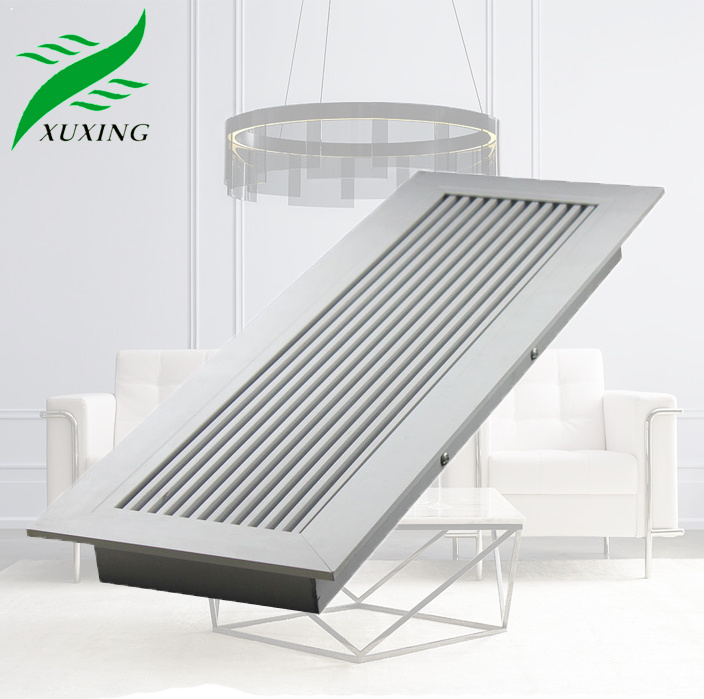

hvac system floor air register aluminum ventilation grille
General Information:
- air registers are suitable for all residential floor, wall and ceiling application.
- Extruded aluminum pressed core construction.
- Precision mitered corners.
- Welded / reinforced corners for floor use.
- Core bars are supplied parallel to the long dimension.
- Core is fixed.
| Size | Static Pressure | .011 | .024 | .044 | .069 | .098 | .133 | .175 | .222 |
| 1-1/2" |
Flow CFM / Ft.
NC |
12
__ |
19
__ |
25
__ |
31
19 |
37
24 |
43
28 |
50
32 |
56
35 |
| 2" |
Flow CFM / Ft.
NC |
19
__ |
28
__ |
37
__ |
47
18 |
56
23 |
66
28 |
75
31 |
84
35 |
| 2-1/2" |
Flow CFM / Ft.
NC |
26
__ |
39
__ |
52
__ |
65
19 |
78
24 |
91
29 |
104
33 |
117
36 |
| 3" |
Flow CFM / Ft.
NC |
33
__ |
50
__ |
66
__ |
83
20 |
100
25 |
116
30 |
133
34 |
149
37 |
| 3-1/2" |
Flow CFM / Ft.
NC |
41
__ |
61
__ |
82
__ |
102
21 |
122
26 |
143
31 |
163
35 |
184
37 |
| 4" |
Flow CFM / Ft.
NC |
49
__ |
73
__ |
98
16 |
122
22 |
146
28 |
171
32 |
195
36 |
220
39 |
| 5" |
Flow CFM / Ft.
NC |
63
__ |
94
__ |
125
16 |
157
22 |
188
27 |
220
32 |
251
36 |
282
39 |
| 6" |
Flow CFM / Ft.
NC |
78
__ |
116
__ |
155
18 |
194
24 |
233
29 |
272
34 |
310
37 |
349
41 |
Notes:
Tested in accordance with ASHRAE Standard 70-2006
1. Pressure
All pressures are in inches of water
2. Sound
The NC values are based on a room absorption of 10 dB re 10 -12 Watts and a 10 ft. active section.
The NC correction values for other lengths are listed in the table below.
NC Correction for Length
| Active Length in Ft. |
1 2 4 6 8 10 15 20 25 30 |
| Correction |
-10 -7 -4 -2 -1 0 +2 +3 +4 +5 |
3. Return Air Applications
When used as a return air intake, the NC value given in the performance table will be increased by 4. For return air application, the negative static pressure will be 0.8 times the static pressure value as shown in the performance table.
4. Blanks ( — ) spaces indicate an NC level below 15.
| Full container | plastic corner protected + PVC bag + strong carton (pallet for option) |
| LCL | plastic corner protected + PVC bag + special strong carton + pallet |
| By air / courier |
plastic corner protected + PVC bag + carboard inserted in carton + special strong carton
|
