High Accuracy Piston Automatic Approved Peanut Butter Filling Machine
High Accuracy Piston Automatic Approved Peanut Butter Filling Machine
High Accuracy Piston Automatic Approved Peanut Butter Filling Machine
High Accuracy Piston Automatic Approved Peanut Butter Filling Machine
High Accuracy Piston Automatic Approved Peanut Butter Filling Machine
High Accuracy Piston Automatic Approved Peanut Butter Filling Machine
High Accuracy Piston Automatic Approved Peanut Butter Filling Machine
High Accuracy Piston Automatic Approved Peanut Butter Filling Machine

High Accuracy Piston Automatic Approved Peanut Butter Filling Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $15000
≥5 Sets
US $13000
≥10 Sets
US $11000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Filling Accuracy:
0.1%
Voltage:
220V/380V
Place of Origin:
Shanghai, China
Brand Name:
NPACK
Dimension(L*W*H):
2200X1400X2300MM
Weight:
400 KG
Product name:
Peanut Butter Filling Machine Filling Capping
After-sales Service Provided:
Engineers available to service machinery overseas
Material:
Stainless Steel
Color:
Silver
Packing material:
Wooden case Packing
Machine type:
full automatic
Filling speed:
Adjustable
Filling accuracy:
0.1%
Capacity:
30-50 Bottles/min

Quick Details

Machinery Capacity:
4000BPH, 6000BPH, 2000BPH
Packaging Material:
Paper
Filling Material:
Water, Oil, Juice, Peanut Butter
Filling Accuracy:
0.1%
Voltage:
220V/380V
Place of Origin:
Shanghai, China
Brand Name:
NPACK
Dimension(L*W*H):
2200X1400X2300MM
Weight:
400 KG
Product name:
Peanut Butter Filling Machine Filling Capping
After-sales Service Provided:
Engineers available to service machinery overseas
Material:
Stainless Steel
Color:
Silver
Packing material:
Wooden case Packing
Machine type:
full automatic
Filling speed:
Adjustable
Filling accuracy:
0.1%
Capacity:
30-50 Bottles/min

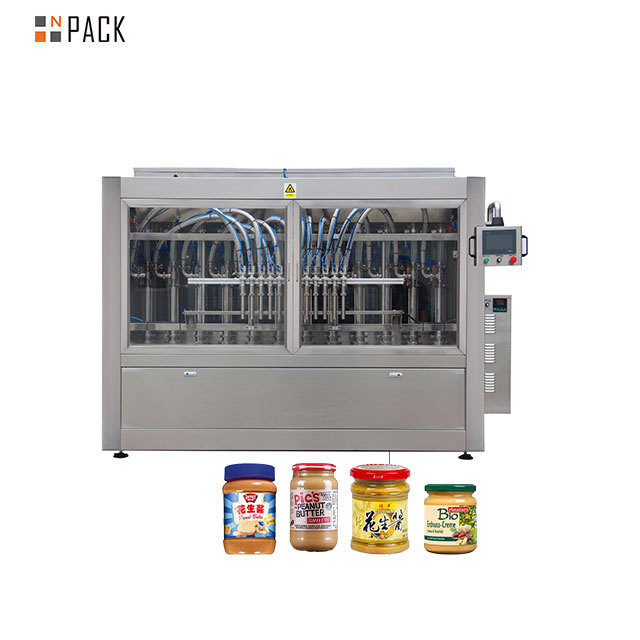

Automatic Peanut Butter Filling Machine

The peanut butter automatic filling machine is mainly developed for the filling requirements of medium or high viscosity products. It is particularly suitable for high concentration medium particles. Such as sesame sauce, coconut sauce, seafood sauce, barbecue sauce, butter sauce, etc. The filling equipment in contact with the material is made of 316 stainless steel that complies with QS specifications. The filling amount and filling speed can be adjusted arbitrarily, with high accuracy; Multi head filling; Automatic filling system; Fast cleaning speed, convenient adjustment, stepless speed regulation of volumetric flask, suitable for filling of different specifications and materials.
Model
NP-VF-2
NP-VF-4
NP-VF-6
NP-VF-8
NP-VF-10
NP-VF-12
NP-VF-16
Heads
2
4
6
8
10
12
16
Range
100-500ML,100-1000ML,1000-5000ML
Capacity
base on 500ml
12-14 bpm
24-28  bpm
36-42 bpm
48-56   bpm
60-70 bpm
70-80  bpm
80-100 bpm
Air Pressure（mpa）
0.6
Accuracy（%）
±0.1-0.3
Power
220VAC SINGLE PHASE 1500W
220VAC SINGLE PHASE 3000W

Main Features

1. Peanut butter filling machine includes man-machine interface and PLC control, debugging equipment or changing varieties only need to be set on the screen. After entering the bottle, positioning, filling, the bottle will automatically run. 2. Contact with materials are made of stainless steel, fully in line with GMP standards; 3. Quick connection, simple and fast disassembly and washing; 4. The filling quantity and filling speed are easy to adjust. It is easy to change bottles of different specifications and shapes without changing parts; 5. The filling head is equipped with leak proof device, and there is no wire drawing and drip leakage in the filling shape.
High Pressure Endure SS Hose and Sanization Filling Head
1. Food grade 304ss hose
2. Shut off filling heads
3. With drop collection tray
4. High filling accuracy
5. Diving Nozzles are optional for bubble sauce,like honey
6. 304SS Food contruction,no dead corner
7. High quality and food grad O rings and seals inside of the nozzles
ESG Valve
1. Easy disassembly three way connectors, No dead corner
2. ESG long life valve and high performace
3. ESG valve to gurantee the shut off accuracy and more stably, and no dead corner
4. Sutiable for thin to viscous liquid and Sauce
Tools Free Adjustment System
1. No need tools adjustment for different size of bottles
2. All adjustment parts with measurement and easy for record
3. Filling nozzles are easy for moving right and left for the slider system
4. Adjust the Filling Volume by one touch and operation by touch screen
High Quality Hose
Adapt world top brand of hose,such as TOYOX.
hose characteristics: With stand pressure With SUS316 reinforced coil and special reinforced structure, it has excellent stereotypes and is suitable for pressure and vacuum conveying High heat resistance It can withstand high-temperature fluids within 150 ℃, and can be used to clean the inside of food hoses and the floor (conditional restrictions)
No Dead Corner Top Tank.
1. The top tank is with round or semi round design no dead corner, more easy Cleaning
2. Double jacket hopper optional
3. Mixing system optional
4. CIP system optional
5. 304SS constuction material, 316SS for option
6. Mixing and heating fuction for potion
Automatic Piston Take Off
1. Easy cleaning
2. No need tools to clean the pistons which gurantee the food grade,save time and labor.
3. CIP system is for option
