Quick Details
-
Type:
-
servo system control
-
Voltage:
-
220V
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Wire Diameter Range (mm):
-
0.1 - 0.6
-
Function:
-
automatic coil winding machine
-
Type:
-
servo system control
-
Voltage:
-
220V

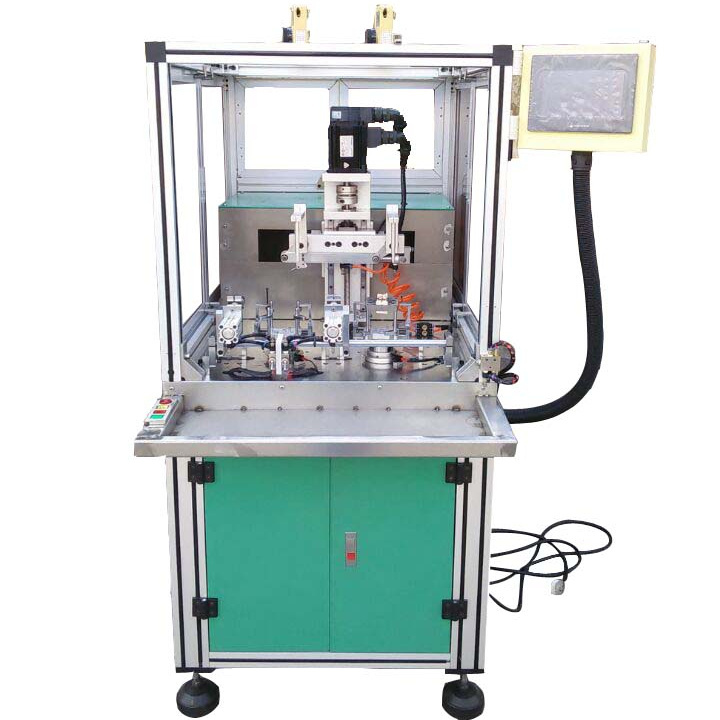

1.4 stations transformer coil winding machine
Features:
1. program control board control .
2. machine with wire cutting sensor switch ,if wire broken machine will stop automaticlly , avoid waste of copper .
3. pecial fixture design , avoid wire loose while winding .
4. auto flipping function , it can change wire spindle and winding at same time .
suitable for small transformer , relay , small motor coil , pole motor
|
SPECIFICATION |
|||
|
MODEL |
HF-R40-4 |
slot |
4-24slot |
|
total spindle |
2 spindles |
RPM |
1500-3200 RPM |
|
Stator inner diameter |
20 -100mm |
Power supply |
Single phase 220 v 50/60HZ |
|
Stator out diameter |
30 -1 5 0 mm |
controller |
Motion control |
|
Stator stack height |
0- 40 mm , over 4 0 mm is SPM . |
dimension |
930x910x1400 mm ( LxWxH) |
|
Wire diameter |
0. 1 -0.6 mm |
Weight |
350 kgs |
