Cixi YaXun Communication Equipment Co.,Ltd is specialized in developing,manufacturing and selling optical fiber communication products. It was founded in 2012, located in CiXi city, ZheJiang Province, which is the center of fiber optic industry.
We mainly manufacture fiber distribution box, plc splitter, fiber Patch cord,fast assembly connector, fiber adapter,fiber joint closure box,fiber terminal box,optical distribution frame and optical cross cabinet. Yaxun have provided complete FTTH solutions for Chinese famous enterprises such as China Unicom(CUCC), China Mobile(CMCC) and China Telecom(CTCC). we gained a good reputation in domestic market, besides, Our products have already been exported to Europe, America, the Middle East, Southeast Asia, South & North America, Africa and other countries.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
APCXY
-
Use:
-
Fttx project
-
Warranty Time:
-
12 months
-
Product name:
-
PLC Optic Splitter
-
Product Model:
-
PCL 1:4
-
Connector:
-
NO
-
Customized Connector:
-
SC/FC/LC/ST
-
Jacket Diameter:
-
0.9mm
-
Total Length:
-
1.6-2M
-
G. weight:
-
0.01kg
Quick Details
-
Type:
-
PLC splitter
-
Model Number:
-
PLC 1:4
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
APCXY
-
Use:
-
Fttx project
-
Warranty Time:
-
12 months
-
Product name:
-
PLC Optic Splitter
-
Product Model:
-
PCL 1:4
-
Connector:
-
NO
-
Customized Connector:
-
SC/FC/LC/ST
-
Jacket Diameter:
-
0.9mm
-
Total Length:
-
1.6-2M
-
G. weight:
-
0.01kg
Product Description
|
Product name
|
PLC Optic Splitter
|
Product Type
|
PLC
|
|
Product Model
|
PLC 1:4
|
Fiber Core
|
657A1
|
|
Optical Connector
|
NO
|
Jacket Color
|
White
|
|
Routine Split Ratio
|
Full-band Average Distribution
|
Jacket Diameter
|
0.9mm
|
|
1 × N PLC Optic Splitter Specification
|
|
|
|
|
|
|||||
|
OperatingWavelength(μm)
|
1260~1650
|
|
|
|
|
|||||
|
Port Configuration
|
1×2
|
1×4
|
1×8
|
1×16
|
1×32
|
|||||
|
Insertion Loss (dB)
|
3.6
|
7.5
|
10.2
|
13.5
|
16.9
|
|||||
|
Loss Uniformity (dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
|||||
|
Polarization Dependent Loss (dB)
|
0.2
|
0.2
|
0.2
|
0.25
|
0.3
|
|||||
|
Wavelength Dependent Loss (dB)
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
|||||
|
Temperature Dependent Loss(-40~85) (dB)
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
|||||
|
Returm Loss (dB)
|
55/50
|
|
|
|
|
|||||
|
Operating Temperature (℃)
|
-40~+85
|
|
|
|
|
|||||
|
Directivity (dB)
|
≥55
|
|
|
|
|
|||||
|
Storage Temperature (℃)
|
-40~+85
|
|
|
|
|
|||||

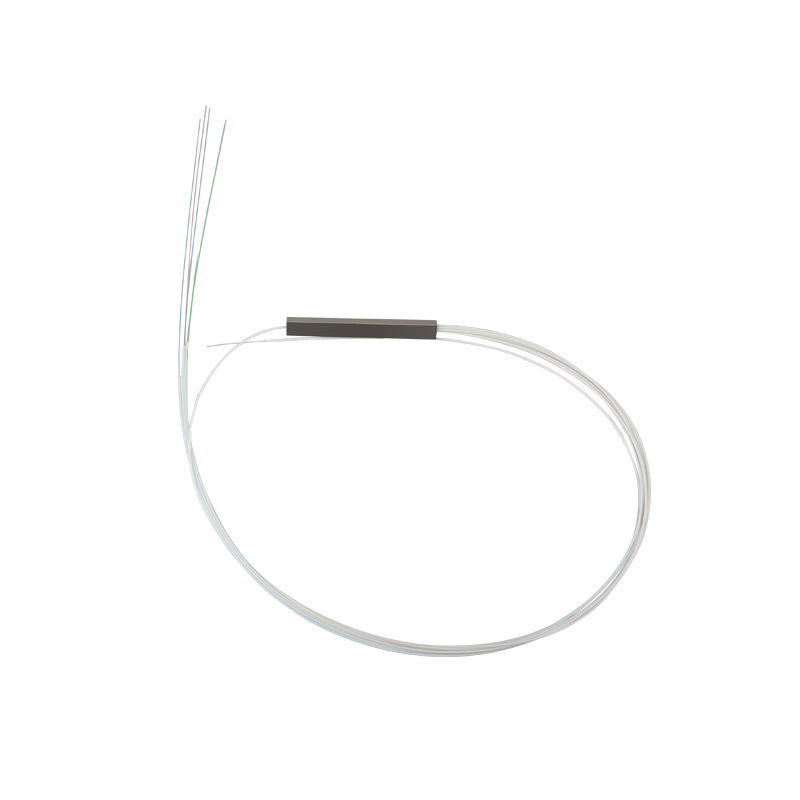

Product Photo
Q1: Do you accept small quantity order?
A1: Yes, we do accept a sample order so customers can test the quality.
Q2: Can we get a lower price? Any Discount?
A2: Yes, please contact us for more details.
Q3: What payment term can we provide?
A3: Accepted Delivery Terms: FOB,CFR, CIF, EXW；
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, Western Union, Cash, Escrow;
Q4: What about the lead time for the mass production?
A4: Honestly, it depends on the order quantity and the season you place the order.
Q5: OEM,ODM Service is available?
A5: Yes, YAXUN have strong ability to offer customers ODM&OEM products with
high quality.And it will require your order quantity.
