Quick Details
-
Brand:
-
Surpass Hobby
-
Product name:
-

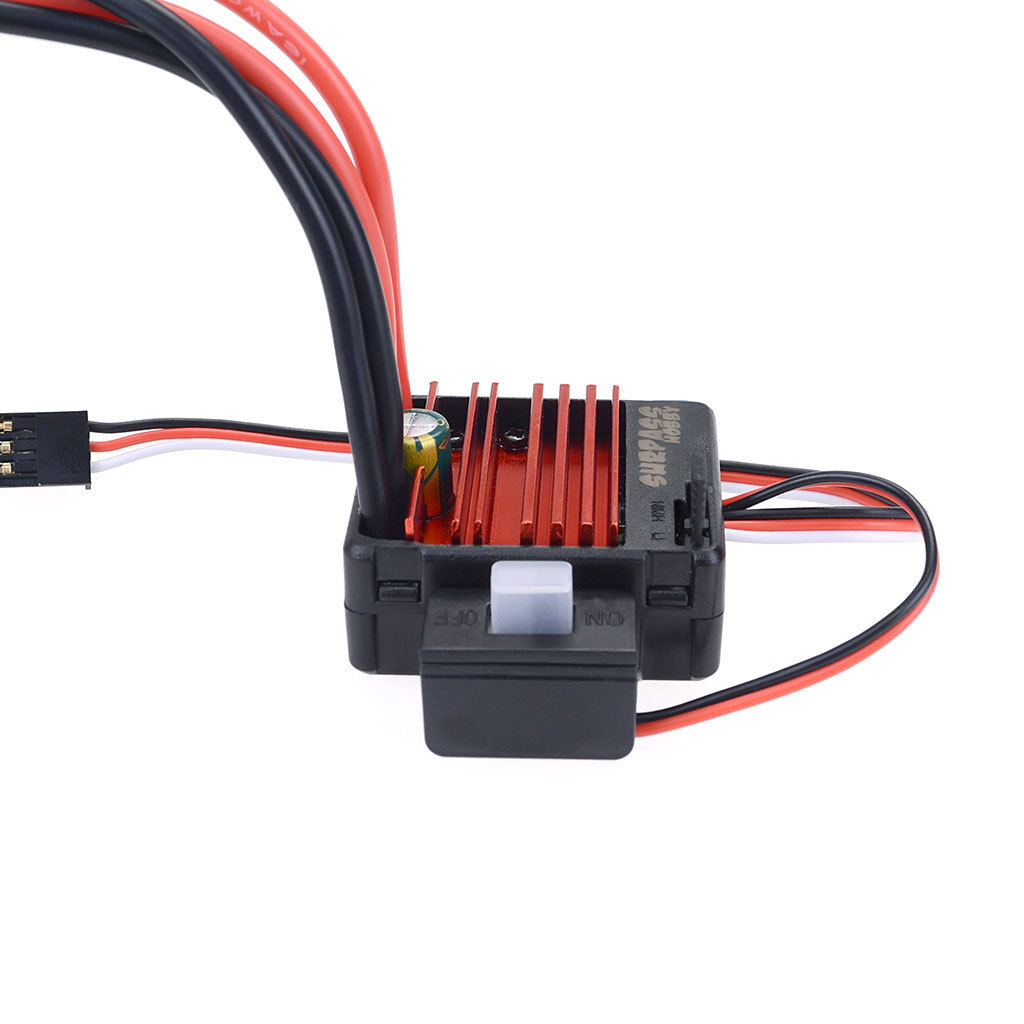

60A ESC for Crawler car
-
Battery Support:
-
2-3S Lipo
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Remote Distance:
-
150m
-
Controller Battery:
-
1-3s Lipo
-
Brand:
-
Surpass Hobby
-
Product name:
-
60A ESC for Crawler car
-
Battery Support:
-
2-3S Lipo
Rocket 5 slot 540 16T brushed Motor+ 60A brushed ESC for 1/10 cars TAMIYA /KYOSHO/AXIAL/RC4WD/MST 3.175mm Shaft
|
LIPO
|
No-load current
|
no-load RPM
|
plugging current
|
Torsion
|
Turns
|
Turn
|
shaft
|
Lipo
|
|
540PLUS 11T
|
<6.0A
|
16000±12%RPM
|
16.7-103A
|
≥3627.3g.cm
|
11
|
CCW
|
Ø3.175
|
7.4V
|
|
540PLUS 13T
|
<4.5A
|
13500±12%RPM
|
10.1-61A
|
≥3205.4g.cm
|
13
|
CCW
|
Ø3.175
|
7.4V
|
|
540PLUS 16T
|
<3.9A
|
11000±12%RPM
|
8.1-49.3A
|
≥3038.1g.cm
|
16
|
CCW
|
Ø3.175
|
7.4V
|
|
540PLUS 20T
|
<2.9A
|
9000±12%RPM
|
4.6-34A
|
≥2821.5g.cm
|
20
|
CCW
|
Ø3.175
|
7.4V
|
PRECAUTIONS AND WARNINGS
◆Never touch the motor after use as it may be EXTREMELY hot.
◆Allow the motor to cool completely between uses.
◆Be sure to use the proper size motor mounting screws.
◆Do not over-tighten the motor mounting screws.
INSTALLATION AND MAINTENANCE :
◆
If replacing the motor mounting screws, use the same type and size that your vehicle was equipped with
originally.
◆Do not over-tighten the motor mounting screws. Doing so may strip the mounting hole threads.
◆Connect the+and-motor leads to the corresponding leads on your Electronic Speed Control(ESC).
◆To adjust timing, loosen the main screws slightly and twist the endbell until the desired setting is reached, re-
0 0
tighten the screws. The factory setting of 0 is suggested. NEVER exceed +/-20 .
◆To clean your motor, lightly brush dirt away on a regular basis paying particularly close attention to the areas
around the ball bearings. DO NOT spray cleaners or solvents into the motor.
◆On a regular basis, inspect the brushes to be sure they move freely within their hoods.
◆When the brushes become worn, or if they display signs of color change, replace them.
originally.
◆Do not over-tighten the motor mounting screws. Doing so may strip the mounting hole threads.
◆Connect the+and-motor leads to the corresponding leads on your Electronic Speed Control(ESC).
◆To adjust timing, loosen the main screws slightly and twist the endbell until the desired setting is reached, re-
0 0
tighten the screws. The factory setting of 0 is suggested. NEVER exceed +/-20 .
◆To clean your motor, lightly brush dirt away on a regular basis paying particularly close attention to the areas
around the ball bearings. DO NOT spray cleaners or solvents into the motor.
◆On a regular basis, inspect the brushes to be sure they move freely within their hoods.
◆When the brushes become worn, or if they display signs of color change, replace them.
Package Information:
* Weight: 180g avg
* color box
Package Information:
1 * brushed motor
1 * brused ESC
1 * brused ESC
