Quick Details
-
Model Number:
-
LA18P
-
Product name:
-
1200W 18-inch professional active speaker subwoofer for concert
-
Type:
-
Active
-
Frequency Response:
-
30Hz-180kHz 28Hz-150kHz(-10dB)
-
Power(AES/PERK):
-
1200W/4800W
-
Directivity:
-
Omnidirectional
-
SPL(AES/PERK):
-
129dB/135dB
-
Speaker driver:
-
LF 18"
-
GW:
-
72kg
-
Application:
-
indoor or outdoor events
-
Cabinet Size:
-
766*720*926MM
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VA
-
Model Number:
-
LA18P
-
Product name:
-
1200W 18-inch professional active speaker subwoofer for concert
-
Type:
-
Active
-
Frequency Response:
-
30Hz-180kHz 28Hz-150kHz(-10dB)
-
Power(AES/PERK):
-
1200W/4800W
-
Directivity:
-
Omnidirectional
-
SPL(AES/PERK):
-
129dB/135dB
-
Speaker driver:
-
LF 18"
-
GW:
-
72kg
-
Application:
-
indoor or outdoor events
-
Cabinet Size:
-
766*720*926MM
Product Description

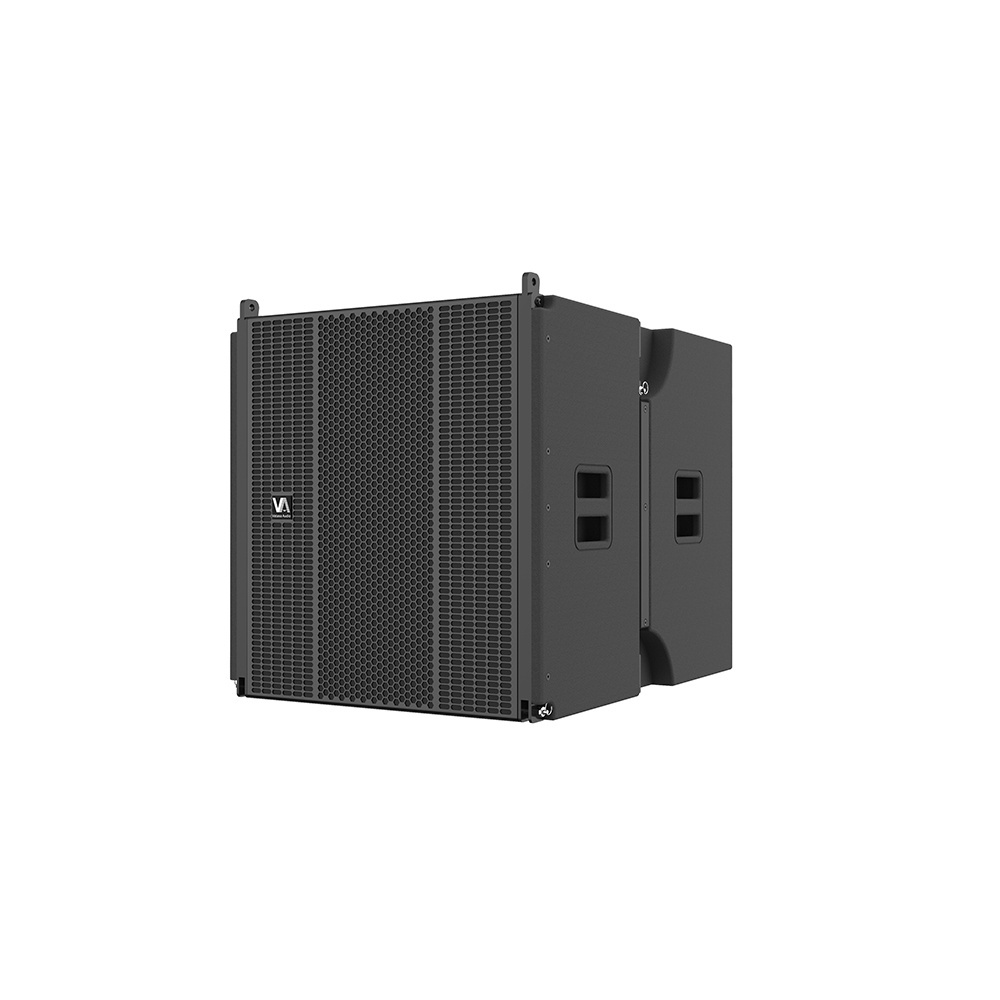

VA High Quality 1200W 18-inch professional active speaker subwoofer for concert
100mm High transient dual magnetic steel woofer
Increase energy of low frequency through large inverted image tube
Built-in handle to meet different installations
Wheel system can save space on delivery
Built-in digital power amplifier of DSP
Preset 4 processor parameter modes to meet different venues
2 installations to meet different venues
Automatic power supply voltage selector for global using
The latest generation correction technology(PFC) of single stage power factor
0.55W low standby power consumption, energy saving and environmental protection
Complete protection mechanism includes shutdown against overheat, short circuit protection, overload protection and permanent high frequency protection
Specification
|
Physical data
|
|
|
|
Connector
|
XLR-F/M
|
|
|
Cabinet material
|
18mm plywood
|
|
|
Finish
|
Black stonetex paint
|
|
|
G.W
|
72kg
|
|
|
Package size(w*h*d)
|
766*720*926mm
|
|
|
Angle
|
-8°, -5°，0°，+ 5°
|
|
|
AC main power
|
|
|
|
Power handling
|
100-240V±10%,50-60Hz
|
|
|
Input voltage
|
90V-260V AC
|
|
|
Output power handling
|
2x1000W+2000W@8Ω
|
|
|
Audio specification
|
|
|
|
Voltage gain
|
35dB
|
|
|
Input sensitivity@8Ω
|
1.739V/7.8dBu
|
|
|
In/Out interface
|
XLR-F/M
|
|
|
Frequency response
|
20Hz-33kHz(0/-1dB)@1W,8Ω
|
|
|
Signal to noise ratio
|
>119dB(20Hz-20kHz,A weighted)
|
|
|
Damping coefficient
|
>10000@100Hz
|
|
|
DSP specification
|
|
|
|
DSP passages
|
2 in/3 out
|
|
|
Frequency response
|
20Hz-20kHz(-0.5dB)
|
|
|
Input maximum voltage
|
8.2V/+20dBu
|
|
|
Output maximum voltage
|
4.1V/14.3dBu
|
|
|
THD+N
|
<0.02%(20Hz-20kHz)
|
|
