Quick Details
-
Brand Name:
-
YUANHENG
-
Model Number:
-
M-100
-

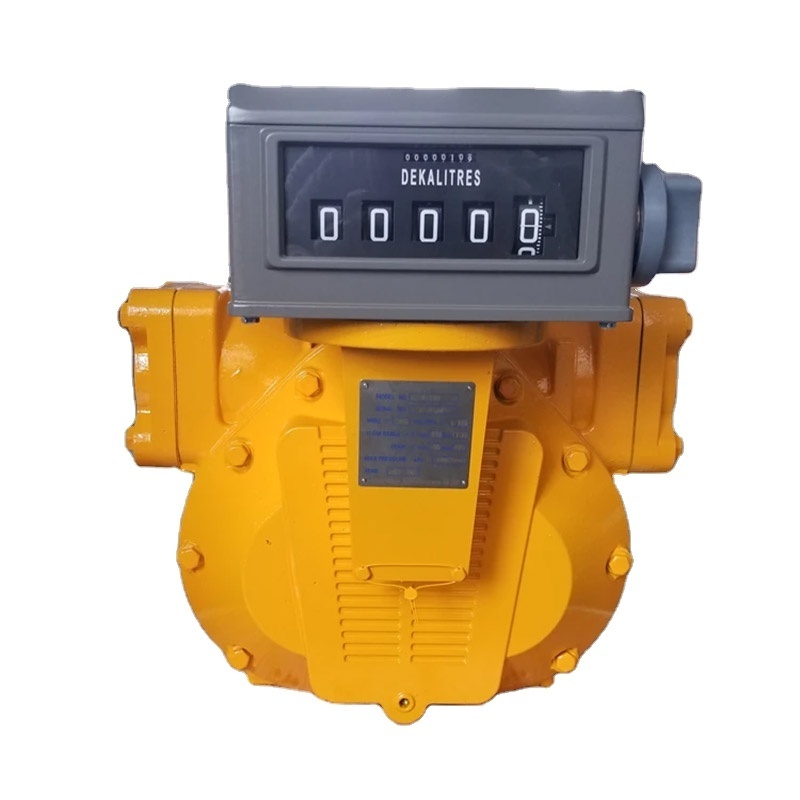

Product Name:
-
Positive Displacement Flow Meter
-
Medium:
-
Fuel Oil
-
Accuracy:
-
0.2%
-
Application:
-
For fuel oil flow meter
-
Material:
-
Aluminum
-
Keywords:
-
diesel fuel flow meter
-
Flow range:
-
250-380-750-1300L/min
-
Size:
-
40mm,1 1/2"-2'-3*-4"
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUANHENG
-
Model Number:
-
M-100
-
Product Name:
-
Positive Displacement Flow Meter
-
Medium:
-
Fuel Oil
-
Accuracy:
-
0.2%
-
Application:
-
For fuel oil flow meter
-
Material:
-
Aluminum
-
Keywords:
-
diesel fuel flow meter
-
Flow range:
-
250-380-750-1300L/min
-
Size:
-
40mm,1 1/2"-2'-3*-4"
|
Product name
|
|
Positive Displacement Flow Meter
|
|
|
|||
|
Brand Name
|
|
YUANHENG
|
|
|
|||
|
Size
|
|
40mm,1 1/2"-2'-3*-4"
|
|
|
|||
|
Flow Range
|
|
250-380-750-1300L/min
|
|
|
|||
|
Volume per Revolution
|
|
0.309L/0.681L/1.839L/5.102L
|
|
|
|||
|
Max Pressure
|
|
10Bar/150PSI
|
|
|
|||
|
Accuracy
|
|
±0.2%
|
|
|
|||
|
Repeatability
|
|
≤0.05%
|
|
|
|||
|
Measurement
|
|
Litre/Gallon
|
|
|
|||
Features:
• Robust Positive Displacement Mechanical Design
• Low pressure loss, long service life
• Calibrator adjustable to 0.2% custody accuracy
• Design: three (3) rotors
• No metal-to-metal contact within the measuring chamber;
• Light and compact design;
• Max pressure 10 bar (LPG 19 bar)
• Max temperature 80°C
• Sizes range from 40mm to 150mm
• Wide range of accessories inc. valves, air elimination & counters, Setstop counter, ticket printer, pulse output
• Materials: aluminium, S/S body, Viton seal, Veeder-root register in gallons and litres
• Low pressure loss, long service life
• Calibrator adjustable to 0.2% custody accuracy
• Design: three (3) rotors
• No metal-to-metal contact within the measuring chamber;
• Light and compact design;
• Max pressure 10 bar (LPG 19 bar)
• Max temperature 80°C
• Sizes range from 40mm to 150mm
• Wide range of accessories inc. valves, air elimination & counters, Setstop counter, ticket printer, pulse output
• Materials: aluminium, S/S body, Viton seal, Veeder-root register in gallons and litres
