It is of novel appearance and low weight and being convenient to install, so you can rest assure its safety.
It mainly includes housing, PCB and battery etc. Its battery adopts Li-ion battery with long lifespan.
Its PCB adopts automatic SMT technology, uses IC control design in charging/discharging and power supply part.
PCB uses fully automatic SMT technology, PCB core use DWO1 and 3525 IC chips which are especially for emergency lights and Li-ion
battery protections.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
emergency led driver emergency pack
-
Model Number:
-
FAT-LED-F1B
-
Output Frequency:
-
50/60Hz
-
Product Name:
-
LED Emergency Driver
-
Size:
-
242*40*28 mm
-
Power:
-
5-20W ( 25W max )
-
Material:
-
Metal Casing
-
Battery:
-
11.1V 2600mAh Li-ion
-
Emergency Time:
-
≥ 90 minutes
-
Charge Time:
-
≤24 H
-
Certification:
-
CE RoHS
-
Protection:
-
IP30
-
Warranty:
-
3 years
Quick Details
-
Warranty(Year):
-
3-Year
-
Product Weight（kg）:
-
0.35
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
emergency led driver emergency pack
-
Model Number:
-
FAT-LED-F1B
-
Output Frequency:
-
50/60Hz
-
Product Name:
-
LED Emergency Driver
-
Size:
-
242*40*28 mm
-
Power:
-
5-20W ( 25W max )
-
Material:
-
Metal Casing
-
Battery:
-
11.1V 2600mAh Li-ion
-
Emergency Time:
-
≥ 90 minutes
-
Charge Time:
-
≤24 H
-
Certification:
-
CE RoHS
-
Protection:
-
IP30
-
Warranty:
-
3 years
Product Description

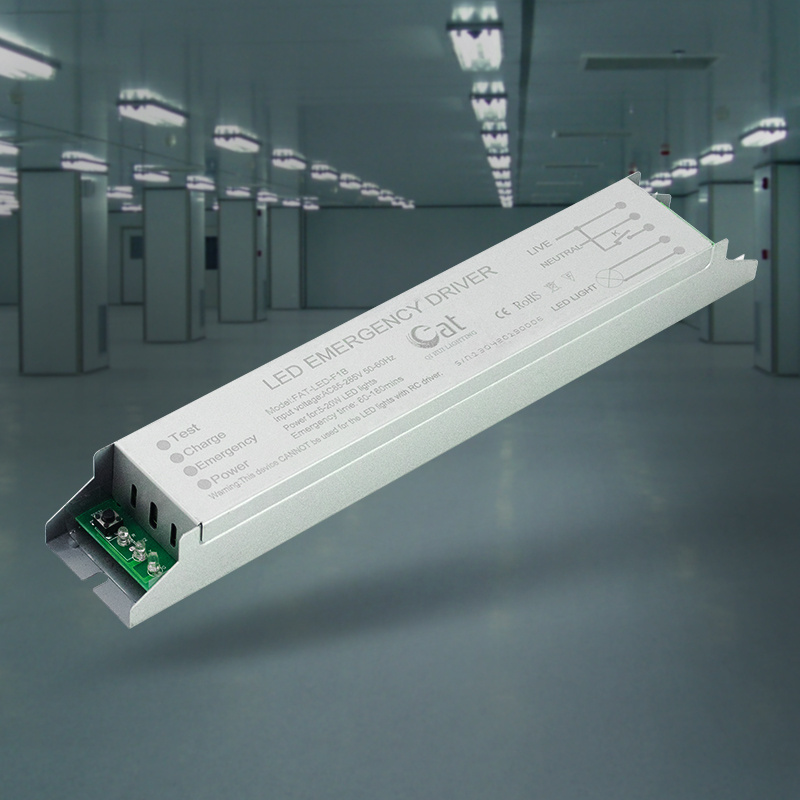

LED emergency driver with 100% output power has CE & RoHS certificates. The main feature of this LED emergency pack with battery is that it can be hidden in the bracket of the tube light. LED emergency kit use of high quality li-ion batteries can cycle more than 500 times.
Specification
|
Model
|
FAT-LED-F1B
|
Input Voltage
|
AC 85-265V
|
||
|
Material
|
Metal casing
|
Battery
|
11.1V 2600mAh Li-ion
|
||
|
Suit for LED Light
|
5-20W ( 25W max )
|
Emergency Power
|
Full 5-20W
|
||
|
Emergency Time
|
≥ 90 minutes
|
Charge Time
|
≤ 24 Hours
|
||
|
AC Fuse
|
0.8A 250V
|
DC Fuse
|
5A 50V
|
||
|
IP Degree
|
IP30
|
Warranty
|
3 Years
|
||
|
Operation Temperature
|
-5℃ ~ 45℃
|
Dimension
|
242*40*28 mm
|
||
|
Type of LED
|
All 5-20W ( 25W max ) LED lamps with IC driver, such as tube light etc.
|
|
|
||
Details Images
I. Structure and op erating principle:
Multiple protection PCB board
Smart PCB has been continuously upgraded, it has multiple protection functions, such as
overload protection; short circuit protection; overcharge and over-discharge protection; fault connection wire protection; no-loading protection.
Li-ion battery
Equip with high quality 11.1V 2600mAh lithium ion battery, high stability, overcharge and discharge cycle more than 500 times.
After the upgrade, the battery added protection function.
