Quick Details
-
Cooling/Heating:
-
Cooling/Heating
-
Power Source:
-
Electric
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hisense
-
Model Number:
-
TX-1
-
COP:
-
5.6
-
Power (W):
-
560
-
Voltage (V):
-
220
-
Maximum Airflow Rate:
-
800
-
Featured Function:
-
Healthy air
-
Recommended Room Size（square feet）:
-
400
-
Product Name:
-
Wall Split Air Conditioner
-
Function:
-
Cooling\Heating
-
Cooling capacity:
-
9000btu 12000btu 18000btu 20000btu 24000btu
-
Compressor:
-
GMCC
-
Refrigerant:
-
R410A/R32
-
Frequency:
-
50HZ/60HZ/DC Variable Speed
-
Auto Clean:
-
X-FAN
-
Applicable temperature range:
-
Cooling:18~52 Heating:-15~24
-
Control:
-
Remote + Wifi Optional
Quick Details
-
Capacity (btu):
-
＞12001
-
EER:
-
2-4
-
Type:
-
Split Wall Mounted Air Conditioners
-
Cooling/Heating:
-
Cooling/Heating
-
Power Source:
-
Electric
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hisense
-
Model Number:
-
TX-1
-
COP:
-
5.6
-
Power (W):
-
560
-
Voltage (V):
-
220
-
Maximum Airflow Rate:
-
800
-
Featured Function:
-
Healthy air
-
Recommended Room Size（square feet）:
-
400
-
Product Name:
-
Wall Split Air Conditioner
-
Function:
-
Cooling\Heating
-
Cooling capacity:
-
9000btu 12000btu 18000btu 20000btu 24000btu
-
Compressor:
-
GMCC
-
Refrigerant:
-
R410A/R32
-
Frequency:
-
50HZ/60HZ/DC Variable Speed
-
Auto Clean:
-
X-FAN
-
Applicable temperature range:
-
Cooling:18~52 Heating:-15~24
-
Control:
-
Remote + Wifi Optional
Product Description

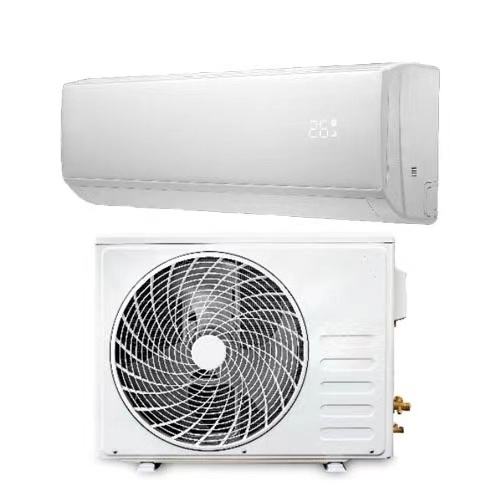

9000 btu 12000btu 18000btu 24000btu split air conditioner
What can Hisense smart air conditioner give you?
1. Fresh air
Hisense fresh air technology can introduce fresh air into the room at a rate of 50m³/h layered purification, no need to open windows for venlitation, increase O2 concentration rapidly. Making you full of vitality.
2.Healthy air
Hisense have more than 12 single healthy filters for selection, which can achieve the effects of dust removal, deodorization,PM2.5 removal, and 3-in-1 filter and 4-in-1 filter can achieve the combined effect of multiple single filters.
3.Dual self-clean
Hisense's patented second-generation cleaning technology,high-temperature drying and purification, efffectively remove dust, bacteria and oil from indoor and outdoor units, and easily regain clean air conditioners
4,Smart Eye
Specification
|
Split Air Conditioner/Air Conditioner Split Type/Energy Saving Silent Mode Split Air Conditioning
|
|
|
|
|
|
|
|
|||||||
|
Function
|
|
|
|
Cooling Heating
|
Cooling Heating
|
Cooling Heating
|
Cooling Heating
|
|||||||
|
Horsepower
|
|
|
P
|
1
|
1.5
|
2
|
3
|
|||||||
|
Ton
|
|
|
|
0.8
|
1
|
1.5
|
2
|
|||||||
|
Capacity
|
Cooling
|
|
BTU/h
|
9000
|
12000
|
18000
|
24000
|
|||||||
|
|
Heating
|
|
BTU/h
|
9500
|
12500
|
18500
|
24500
|
|||||||
|
EER/COP
|
|
|
W/W
|
3.6
|
3.4
|
3.5
|
3.3
|
|||||||
|
Power Supply
|
|
|
ph,V,Hz
|
1ph,220V-240V,50hz
|
1ph,220V-240V,50hz
|
1ph,220V-240V,50hz
|
1ph,220V-240V,50hz
|
|||||||
|
Power Input
|
Cooling
|
|
W
|
825
|
1180
|
1660
|
2240
|
|||||||
|
|
Heating
|
|
W
|
780
|
1080
|
1540
|
1860
|
|||||||
|
Current Input
|
Cooling
|
|
A
|
4.2
|
5.9
|
7.8
|
9.8
|
|||||||
|
Rated Current
|
Heating
|
|
A
|
5.9
|
7.9
|
12.3
|
13
|
|||||||
|
Refrigerant
|
|
|
|
R410A/R32
|
410A
|
R410A
|
R410A
|
|||||||
|
Indoor Unit
|
Airflow Volume
|
|
m³/h
|
450
|
550
|
900
|
950
|
|||||||
|
|
Sound Pressure Level
|
|
dB(A)
|
30-36
|
36-42
|
39-45
|
42-46
|
|||||||
|
|
Outline Dimension (W×H×D)
|
|
mm
|
790×280×200
|
790×280×200
|
890×300×210
|
1020×320×260
|
|||||||
|
|
Pakage Dimension (W×H×D)
|
|
mm
|
865×330×260
|
870×350×275
|
980×370×300
|
1100×390×320
|
|||||||
|
|
Gross Weight
|
|
kg
|
9
|
11
|
13
|
14
|
|||||||
|
Outdoor Unit
|
Sound Pressure Level
|
|
dB(A)
|
45
|
48
|
55
|
55
|
|||||||
|
|
Piping Connection
|
Gas
|
mm
|
φ9.52
|
φ12.7
|
φ12.7
|
φ16
|
|||||||
|
|
|
Liquid
|
mm
|
φ6.35
|
φ6.35
|
φ6.35
|
φ6.35
|
|||||||
|
|
Outline Dimension (W×H×D)
|
|
mm
|
600×250×450
|
780×260×550
|
850×300×600
|
850×320×700
|
|||||||
|
|
Pakage Dimension (W×H×D)
|
|
mm
|
760×350×550
|
860×350×600
|
950×400×680
|
990×400×690
|
|||||||
|
|
Gross Weight
|
|
kg
|
29
|
35
|
43
|
54
|
|||||||
|
Loading Quantity
|
|
40`GP
|
sets
|
126
|
105
|
75
|
68
|
|||||||
|
|
|
40`HQ
|
sets
|
308
|
258
|
185
|
165
|
|||||||
Packing & Delivery
by carbon for copper pipe copper tube air conditioner pipe
