Quick Details
-
Display:
-
1.6 inch LCD
-
Programs:
-
16 ON/OFF per Day
-
Programming Combinations:
-
15 Groups
-
Operating voltage:
-
120VAC
-
Interval:
-
1 Mins
-
Cover:
-
No
-
Installation:
-
Panel or Screw
-
Output:
-
Voltage Output SPST
-
Certificates:
-
CE RoHS EMC LVD
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Function:
-
7 Days 24hrs Programmable Time Switch
-
Display:
-
1.6 inch LCD
-
Programs:
-
16 ON/OFF per Day
-
Programming Combinations:
-
15 Groups
-
Operating voltage:
-
120VAC
-
Interval:
-
1 Mins
-
Cover:
-
No
-
Installation:
-
Panel or Screw
-
Output:
-
Voltage Output SPST
-
Certificates:
-
CE RoHS EMC LVD

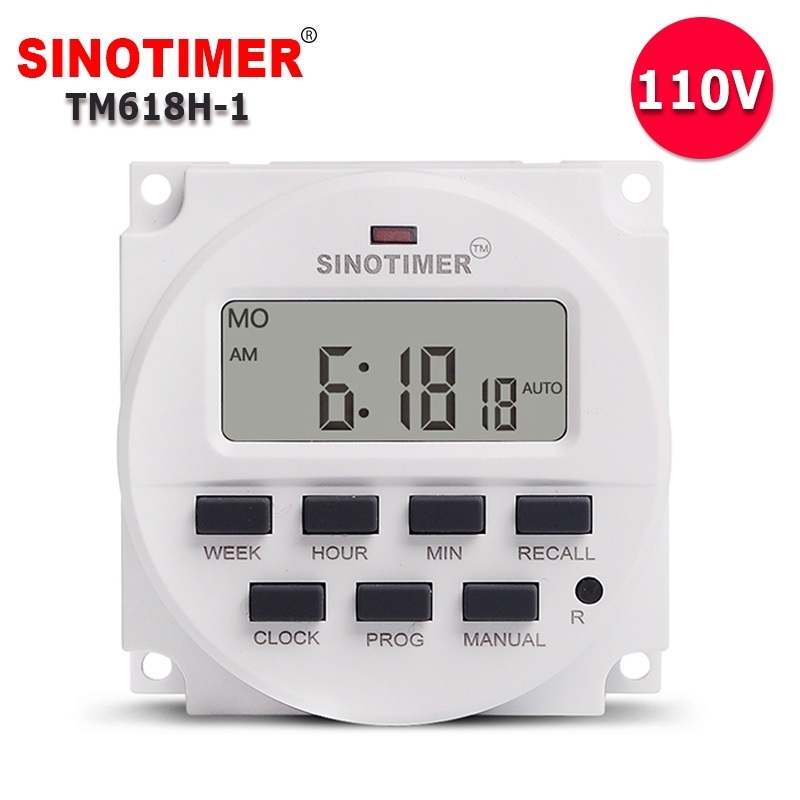

SINOTIMER 1.6 inch LCD Large Display TM618 Timer Module Weekly programmable
TM618H-1 can automatically switch on and switch off various kinds of electric equipment at a preset time . It is widely used in 7 days programmable control of streetlight, neon light (sign), lamp, water heater, air conditioner, billboard, electric cooker, booster, sprayer, bottler, preheater, agriculture facilities and broadcasting equipment etc. The digital timer switch is within battery, to save the programs for power failiure. it has the features of low consumption, high-accuracy CMOS chip, strongly anti-jamming, simple and easy to set, confirms to IEC 60367 and CE certificated.
Item Features:
* Ideal for household use in pannel mounted
* 24 hours / 7 days a week programmable
* Auto time error correction +/- 30 sec, weekly
* Repeat programs with 16 on/off settings, and setting on/off manually
Technical Data:
|
Model |
TM618H-1 |
|
Temp.range: -20°C+50°C |
Power Supply: 120VAC |
|
Power consumption 4.5 VA (MAX) |
Display: LCD |
|
Switching contact: 1 changeover switch |
Programs:16 on/off each day or week |
|
Hysteresis 2 sec/day (25°C) |
Mini interval: 1 mins |
|
Capacity: 16A 250V AC |
Black-out: 60 days |
|
Timer range: 1min~168hr |
Recharge battery: 3V |
|
Average error: 1s/24h, 25°C |
Weight: 0.15kg |
