Quick Details
-
Voltage:
-
220V-380V
-
Dimension(L*W*H):
-
550*400*850mm
-
Weight (KG):
-
250 KG
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After sale service:
-
best
-
Quality:
-
good
-
Capacity:
-
big
-
Efficiency:
-
high
-
Design:
-
Suitable
-
Raw material:
-
stainless steel
-
Price:
-
reasonable
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Certification:
-
ISO 9001
Quick Details
-
Output (kg/h):
-
200 - 2000 kg/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YW
-
Voltage:
-
220V-380V
-
Dimension(L*W*H):
-
550*400*850mm
-
Weight (KG):
-
250 KG
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After sale service:
-
best
-
Quality:
-
good
-
Capacity:
-
big
-
Efficiency:
-
high
-
Design:
-
Suitable
-
Raw material:
-
stainless steel
-
Price:
-
reasonable
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Certification:
-
ISO 9001

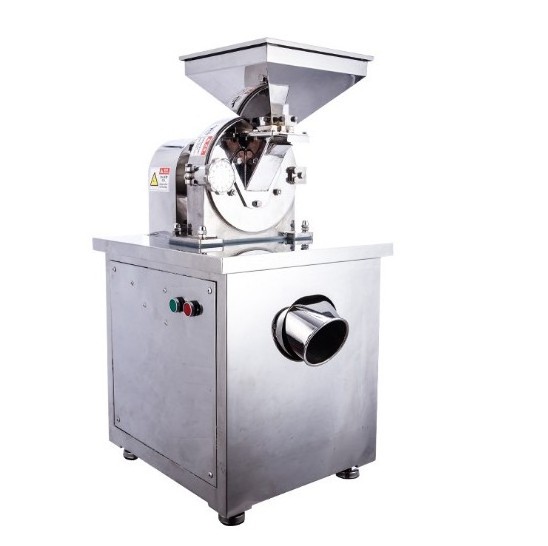

Tooth plate water cooling tea leaf / tobacco grinder mill
Description tea leaf grinder mill:
1. This machine is to pulverize grain, Chinese medicine industrial chemical and various materials but no for
inflammable and explosive,it’s applied to medical, chemical and foodstuff.
2. Have confirmed to GMP standards.
3. Made of stainless steel
4. Used for Medical , herbal medicine,sugar,salts,dry vegetables,roots ,nuts shellers, dry grains, etc brittle and
hard things
Working Method :
The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and
crush the target materials. The size of granules can be achieved by changing of the screen. The machine has the features
of easy structure, solid, stable running and good efficiency. The crushed material is discharged directly from the
grinding chamber of the main frame. In addition, the whole machine is made of stainless steel, with smooth inside walls
to avoid powder accumulation on the inside walls. Those pharmaceutical, chemical and food stuff products from the
machine are in accordance with national requirement, achieving "GMP" standard.
Technical Data
|
Model |
18 |
20 |
30 |
40 |
60 |
80 |
100 |
|
Capacity(kg/h) |
10-50 |
60-150 |
100-400 |
160-1000 |
500-1200 |
1000-5000 |
2000-8000 |
|
Speed of principal axis(r/min) |
6000 |
4500 |
3800 |
3400 |
2800 |
2000 |
1500 |
|
Size of input granules(mm) |
<6 |
<6 |
<6 |
<10 |
<12 |
<12 |
<12 |
|
Fineness of products(mesh) |
20-120 |
12-120 |
20-120 |
12-120 |
20-120 |
20-120 |
20-120 |
|
Power(KW) |
2.2 |
4 |
5.5 |
11 |
18.5 |
37 |
55 |
|
Weight(kg) |
100 |
280 |
350 |
550 |
680 |
1500 |
2500 |
|
Overall size (mm) |
550*400 *850 |
550*600 *1250 |
600*700 *1450 |
800*900* 1550 |
900*900* 1880 |
1100*950* 1960 |
1350*1000* 2100 |
Main parts of tea leaf grinder mill
Latest production machine for show
Tea leaf grinder mill before delivery
|
Service |
All produts purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
a, Before sending the machine, we will test and adjust, so you can use directly when you get it.
Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
a, Any problems occur while using, professional advice will be offered.
|
