Quick Details
-
Brand Name:
-
wolon
-
Use:
-
FTTH
-
Product name:
-
ONU ONT
-
Application:
-
FTTX Network
-
Model:
-
HG8546M
-
Ports:
-
1G3F+2WIFI+1POT+1USB XPON ONU 2.4G WIFI Single Band
-
Color:
-
White
-
Certificate:
-
ISO9001
-
Warranty:
-
3 Years
-
Power supply:
-
12V
-
Function:
-
Distribution Fiber System (FTTH)
Quick Details
-
Type:
-
Enterprise Router
-
Model Number:
-
HG8546M
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
wolon
-
Use:
-
FTTH
-
Product name:
-
ONU ONT
-
Application:
-
FTTX Network
-
Model:
-
HG8546M
-
Ports:
-
1G3F+2WIFI+1POT+1USB XPON ONU 2.4G WIFI Single Band
-
Color:
-
White
-
Certificate:
-
ISO9001
-
Warranty:
-
3 Years
-
Power supply:
-
12V
-
Function:
-
Distribution Fiber System (FTTH)

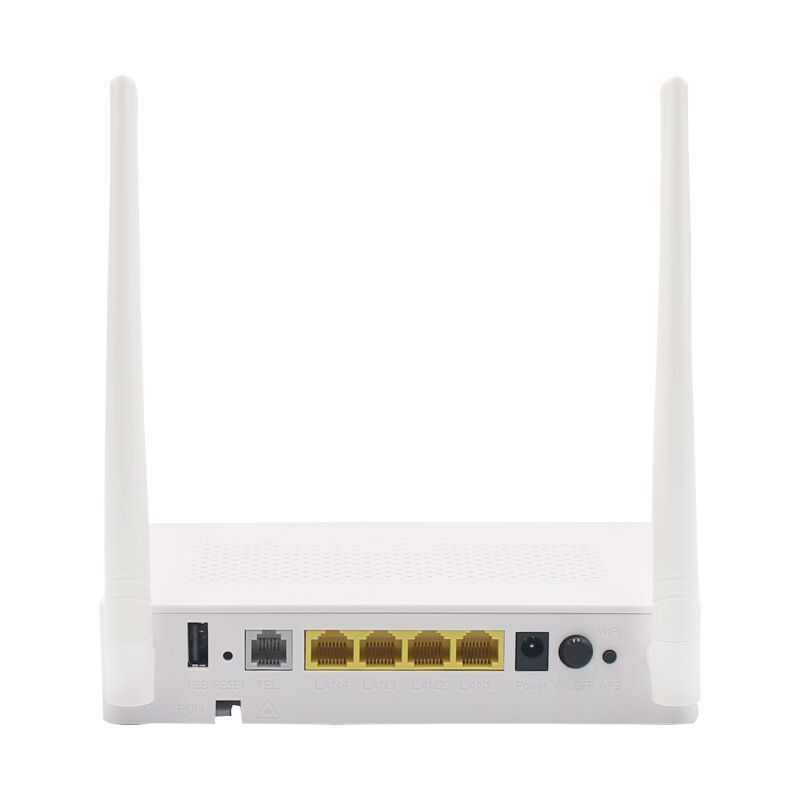

Wolon ONU HG8546M XPON EPON GPON ONU 4LAN 1voice WIFI USB Antenna ONU ONT English Version 5DB good signal
1. Functional Feature
Support GPON mode and EPON mode
Support 2.4G WIFI and 2*2 MIMO
Support SIP Proctol for Voip Service
Support LAN IP and DHCP Server configuration
Support Port Mapping and Loop-Detect
Support Firewall function and ACL function
Support IGMP Snooping/Proxy multicast feature
Support TR069 remote configuration and maintenance
|
Technical item |
Details |
|
PON Interface |
1 GPON /EPON ( Class B+ ) |
|
Receiving sensitivity: ≤-27dBm |
|
|
Transmitting optical power: +0.5~+5dBm |
|
|
Transmission distance: 20KM |
|
|
Wavelength |
TX: 1310nm, RX: 1490nm |
|
Optical Interface |
SC/UPC Connector |
|
Design Scheme |
MTK7525 |
|
Chip Spec |
CPU 950MHz,DDR2 128MB |
|
Flash |
SPI NAND Flash 128MB |
|
LAN Interface |
1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|
Wireless |
Compliant with IEEE802.11b/g/n |
|
Operating frequency: 2.400-2.4835GHz |
|
|
support MIMO, rate up to 300Mbps |
|
|
2T2R,2 external antenna 5dBi |
|
|
Support: Multiple SSID |
|
|
Channel: Auto |
|
|
Modulation type: DSSS, CCK and OFDM |
|
|
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM |
|
|
POTS interface |
1 FXS, RJ11 connector |
|
Support: G.711/G.723/G.726/G.729 codec |
|
|
Support: T.30/T.38/G.711 Fax mode, DTMF Relay |
|
|
Line testing according to GR-909 |
|
|
LED |
10 LED, For Status of WIFI , WPS , PWR , LOS , PON , LAN1~LAN4 , FXS |
|
Push-Button |
3,For Function of Reset, WLAN, WPS |
|
Operating Condition |
Temperature: 0 ℃ ~+50 ℃ |
|
Humidity: 10% ~ 90% ( non-condensing ) |
|
|
Storing Condition |
Temperature: -30 ℃ ~+60 ℃ |
|
Humidity: 10%~90% ( non-condensing ) |
|
|
Power Supply |
DC 12V/1A |
|
Power Consumption |
≤6W |
|
Dimension |
180mm×107mm×28mm ( L×W×H ) |
|
Net Weight |
0.2Kg |
|
Pilot Lamp |
Status |
Description |
|
WIFI |
On |
The WIFI interface is up. |
|
Blink |
The WIFI interface is sending or/and receiving data (ACT). |
|
|
Off |
The WIFI interface is down. |
|
|
WPS |
Blink |
The WIFI interface is securely establishing a connection. |
|
Off |
The WIFI interface does not establish a secure connection. |
|
|
PWR |
On |
The device is powered up. |
|
Off |
The device is powered down. |
|
|
LOS |
Blink |
The device doses not receive optical signals or with low signals. |
|
Off |
The device has received optical signal. |
|
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
|
LAN1~LAN4 |
On |
Port (LANx) is connected properly (LINK). |
|
Blink |
Port (LANx) is sending or/and receiving data (ACT). |
|
|
Off |
Port (LANx) connection exception or not connected. |
|
|
FXS |
On |
Phone has registered to the SIP Server. |
|
Blink |
Phone has registered and data transmission (ACT). |
|
|
Off |
Phone registration is incorrect. |
