Quick Details
-
Weight:
-
46 KG
-
Product name:
-
DTF printer
-
Print head:
-
XP600
-
print width:
-
300mm
-
Print speed:
-
6pass 3㎡/h
-
Brand:
-
LANSONG
-
Interface:
-
USB
-
Language:
-
Chinese\English
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LANSONG
-
Dimensions(L*W*H):
-
870*360*450mm
-
Weight:
-
46 KG
-
Product name:
-
DTF printer
-
Print head:
-
XP600
-
print width:
-
300mm
-
Print speed:
-
6pass 3㎡/h
-
Brand:
-
LANSONG
-
Interface:
-
USB
-
Language:
-
Chinese\English
-
After Warranty Service:
-
Video technical support
|

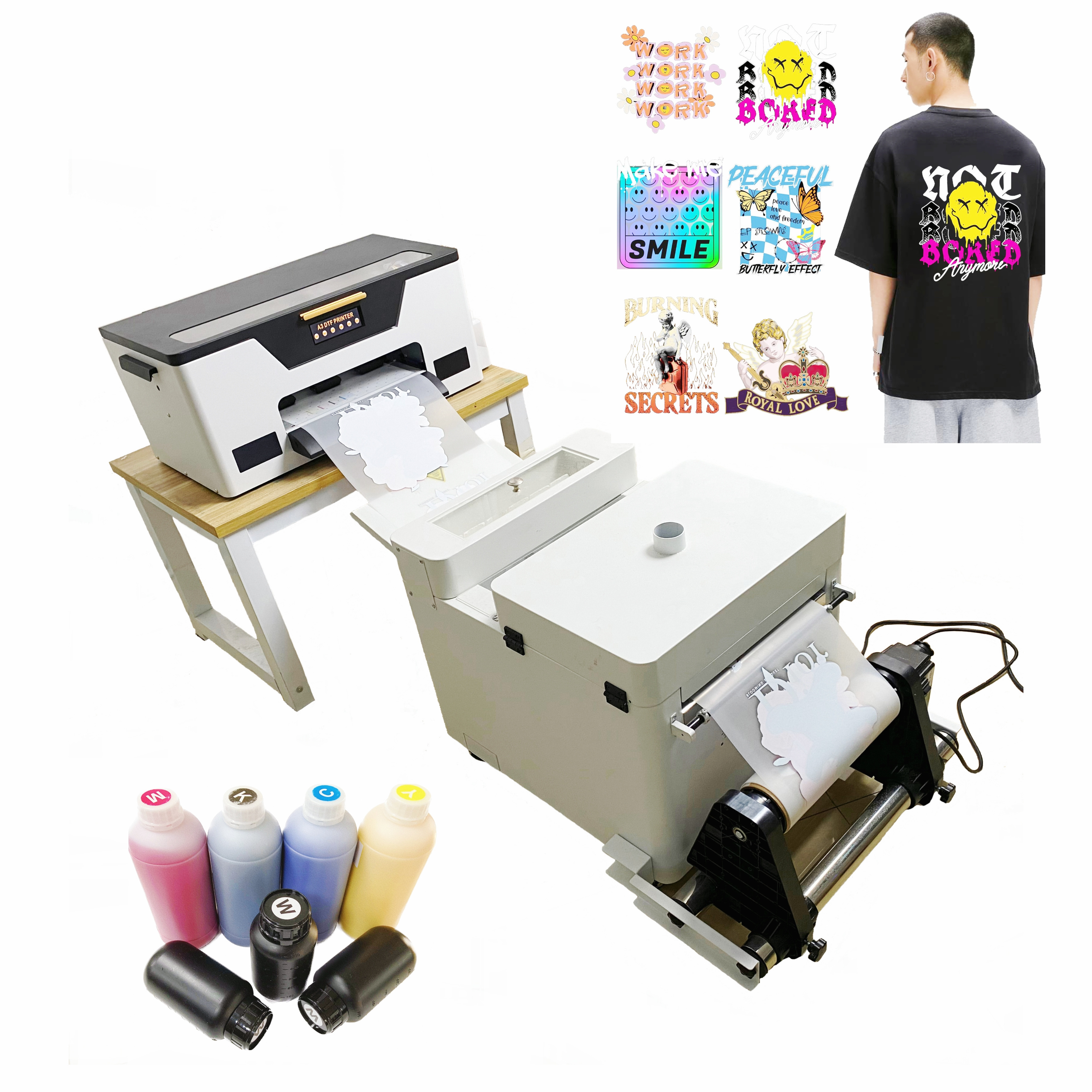

LANSONG Factory Price A3 DTF Printing Machine PET Film dtf printer a3 With Powder Shake Machine
|
|
|
||
|
Printing method
|
|
Piezo ink-jet technology
|
||
|
Print head
|
Standard cofiguration
|
1pcs*EPS F1080 Piezo print head
|
||
|
|
Number of nozzles
|
2160 staggered, 180 x 12 rows (180 x 6 rows per each head)
|
||
|
|
Jetting frequency
|
16kHz max.
|
||
|
|
Drop volume
|
3.5~15pl (Variable data single drop & multi drop)
|
||
|
Print resolution (dots per inch)
|
|
360*1080dpi, 360*2160dpi,720*2160dpi; Uni-direction/Bi-dirction
|
||
|
Print Head mainten technology
|
|
Auto keep wet cap station system & Clean flashing during printing and idle
|
||
|
Media type
|
Roll feed media
|
Film, paper, leather etc with thickness less than 3mm
|
||
|
Media
|
Maximum printing width
|
310mm Width X, Roll feed Y
|
||
|
Film type
|
DTF film
|
Professional Release liner DTF film
|
||
|
Transfer media
|
Garment transfer
|
Cotton, Nylon, Linen, Polyester, Chemical fiber, Leather etc.
|
||
|
Film Feeding
|
Automatic Release
|
Automatic tenssion release roller
|
||
|
Film Take up
|
Automatic Take up
|
Automatic detect electronic take up Roller
|
||
|
Film vacuum system
|
Automatic adsorption
|
Automatic adsorption aluminum vacuum table
|
||
|
Film size
|
Roll type
|
310mm*100meter/Roll
|
||
|
Ink
|
Type
|
Aqueous DTF pigment ink
|
||
|
|
Color
|
KYCMCM+W
|
||
|
|
Ink tank capacity
|
220ml per each color
|
||
|
Ink process unit
|
White ink Stirring
|
Automatic white ink stirring system
|
||
|
|
White ink circulation
|
Automatic white ink circulation system
|
||
|
Powder type
|
Hot melt powder
|
Grossus, Medium, Fines
|
||
|
Powder dusting
|
Automatic detect
|
Automatic detect & Speed adjustable
|
||
|
Powder melt baking
|
Hot melt
|
Far infrared rays baking @ Speed adjustable
|
||
|
Dimensions
|
Machine size
|
Printer: 33.8(W) × 13.8(D) × 15(H) in. (860 × 350 × 380mm)
|
||
|
|
|
Powder process system: 28.4(W) × 21.7(D) ×25.6(H) in. (720 × 550 × 650mm)
|
||
|
|
Packing size
|
Printer packing: 39.3(W) × 19.6(D) ×19.6(H) in. (100 × 50 × 50CM)
|
||
|
|
|
Powder process system packing: 31.5(W) × 24.0(D) ×28.4(H) in. (780 × 610 ×710mm)
|
||
|
Weight
|
Net weight
|
133 lb (60 kg) for All
|
||
|
|
Gross weight
|
188 lb (85 kg) for All
|
||
|
Environment
|
Temperature
|
59 to 86 °F (15 to 30 °C)
|
||
|
|
Humidity
|
40 to 80 %
|
||
|
Working Power
|
|
Printer 200W, Powder process system 1100W
|
||
|
Included items
|
|
Enthernet cable, cleaning kit, USB Flash of software etc.
|
||
|
Connectivity
|
|
Enthernet cable
|
||
|
Power requirements
|
|
8A Single-phase 220 V, 50HZ
|
||
|
Acoustic noise level
|
|
75 dB (A) or less
|
||
|
|
|
|
||
|
Software System Requirements
|
|
|
||
|
Print control
|
System
|
Windows® 7/10 (64 bit) Recommend
|
||
|
(Bundled)
|
CPU
|
Intel® Core™ i5, 2.5 GHz or more
|
||
|
|
RAM
|
8 GB or more
|
||
|
|
Video card and monitor
|
A resolution of 1,152 × 854 with 16 bit color or higher
|
||
|
|
HDD
|
Install space 1 GB or more
|
||
|
|
|
Working space 100 GBProduct Description
|
||
