Quick Details
-
Model Number:
-
XC-9615
-
Dimension:
-
283.1x269x224.3mm
-
Power Supply Mode:
-
POE Power
-
SNR:
-
≥80dB
-
Output Power:
-
≤65W
-
The body material:
-
Mental
-
Interface:
-
RJ45 Ethernet Port, Power Input
-
Weight:
-
2KG
-
S/N (Signal-to-Noise) Ratio:
-
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ,60Hz~18KHz
-
Frequency Response:
-
100Hz-18kHz
-
Power Supply:
-
DC 24V/2.7A or PoE (IEEE802.3af)
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
MP3/PCM/ADPCM/G711.a/G711.u/G729
-
Maximum SPL:
-
97dB±3dB
-
Optional Accessories:
-
Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)
-
IP Rating:
-
IP65
Quick Details
-
Warranty:
-
2 year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Spon
-
Model Number:
-
XC-9615
-
Dimension:
-
283.1x269x224.3mm
-
Power Supply Mode:
-
POE Power
-
SNR:
-
≥80dB
-
Output Power:
-
≤65W
-
The body material:
-
Mental
-
Interface:
-
RJ45 Ethernet Port, Power Input
-
Weight:
-
2KG
-
S/N (Signal-to-Noise) Ratio:
-
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ,60Hz~18KHz
-
Frequency Response:
-
100Hz-18kHz
-
Power Supply:
-
DC 24V/2.7A or PoE (IEEE802.3af)
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
MP3/PCM/ADPCM/G711.a/G711.u/G729
-
Maximum SPL:
-
97dB±3dB
-
Optional Accessories:
-
Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)
-
IP Rating:
-
IP65
Product Parameters

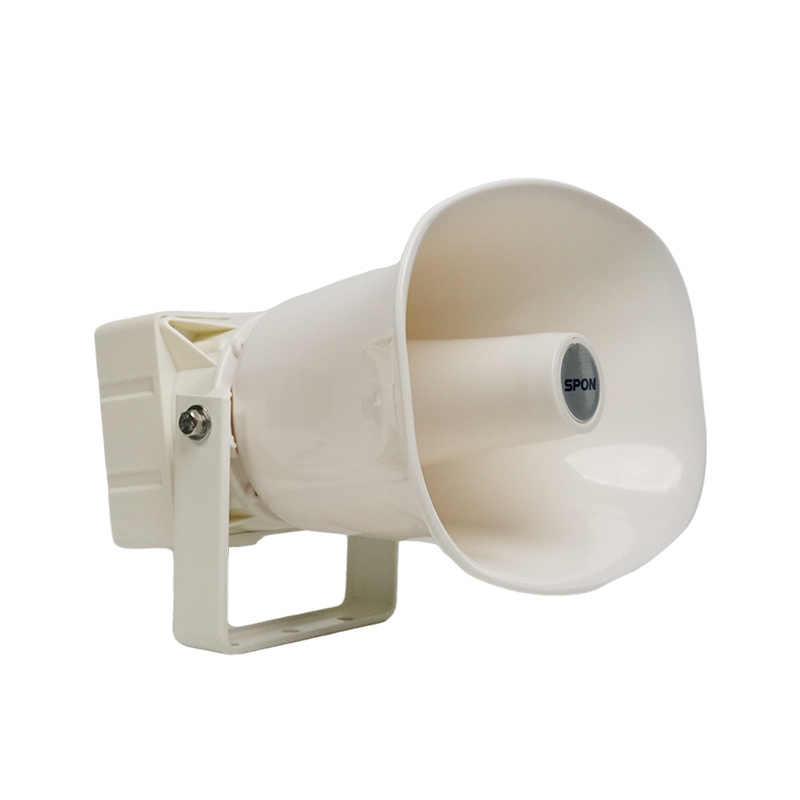

IP POE Horn Speaker
The IP Horn Speaker ensures quick, clear, and adaptable communication, making it simple to deploy and manage messages, notifications, and announcements across various settings.
Ideal for voice announcements and emergency notification alerting in warehouse, factory plant, sea port, outdoor parking lot, bus station, school playground and other outdoor public areas.
Weatherproof Design
Built to withstand outdoor conditions with an IP65 weatherproof rating. Dynamic Volume Control: Unique "dynamic volume control" feature automatically adjusts output volume based on ambient noise levels.
Easy Connectivity
Utilizes a standard RJ45 network interface, making it compatible with Ethernet or POE switch ports. Supports cross-segment and cross-router connections.
SIP & VoIP Integration:
The SIP Speaker Horn enhances communication by working seamlessly with VoIP telephone systems, enabling live voice announcements for efficient and effective messaging. This IP Speaker also supports the globally recognized SIP protocol, ensuring smooth integration into various communication systems.
Quality Sound
Contains a high-fidelity speaker and stereo Class D power amplifier for clear audio output.
Powerful Management
The IP Horn Speaker integrates with SPON® XC-9000 audio management software, enabling features such as live and scheduled voice announcements, background music, emergency alerts, and zone paging for enhanced communication and control.
|
Power Supply:
|
DC 24V/2.7A or PoE (IEEE802.3af)
|
|
|
|
|||
|
Power Consumption:
|
≤65W
|
|
|
|
|||
|
Rated Power Output:
|
20W (at DC 24V/2.7A powered)
15W (at PoE powered) |
|
|
|
|||
|
Network Protocol:
|
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
|
|
|
|
|||
|
Audio Codec:
|
MP3/PCM/ADPCM/G711.a/G711.u/G729
|
|
|
|
|||
|
Maximum SPL:
|
97dB±3dB
|
|
|
|
|||
|
S/N (Signal-to-Noise) Ratio
|
AUX1:≥84dB AUX2:≥84dB MIC:≥80dB ，60Hz～18KHz
|
|
|
|
|||
|
Frequency Response:
|
100Hz-18kHz
|
|
|
|
|||
|
Interface:
|
1×RJ45 Ethernet Port, 1×Power Input
|
|
|
|
|||
|
IP Rating:
|
IP65
|
|
|
|
|||
|
Dimensions:
|
283.1×269×224.3mm
|
|
|
|
|||
|
Weight:
|
2.0kg
|
|
|
|
|||
|
Standard Accessories:
|
1×2-Pin Terminal Block Connector, 1×Installation Manual
|
|
|
|
|||
|
Optional Accessories:
|
DC 24V/2.7A Power Adapter
IEC C13 Power Cord (US/EU/UK/AU) |
|
|
|
|||
Connection Topology
Dimensional Drawing
