Quick Details
-
Width of bed (mm):
-
380 mm
-
Spindle Motor Power(kW):
-
5.5
-
Travel (X Axis)(mm):
-
550 mm
-
Travel (Z Axis)(mm):
-
500 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
fuhe
-
Model Number:
-
JTVC640 850C
-
Weight (KG):
-
2700
-
Marketing Type:
-
New Product
Quick Details
-
Type:
-
VERTICAL
-
Max. Length of Workpiece (mm):
-
300
-
Max. Spindle Speed (r.p.m):
-
8000 r.p.m
-
Width of bed (mm):
-
380 mm
-
Spindle Motor Power(kW):
-
5.5
-
Travel (X Axis)(mm):
-
550 mm
-
Travel (Z Axis)(mm):
-
500 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
fuhe
-
Model Number:
-
JTVC640 850C
-
Weight (KG):
-
2700
-
Marketing Type:
-
New Product
|

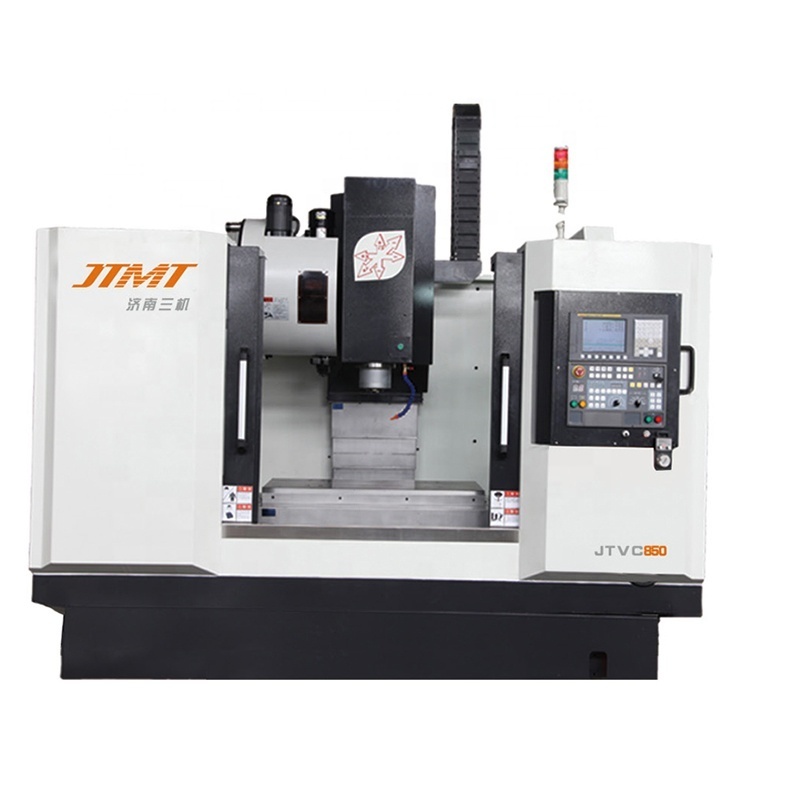

Machine paramet ers |
Unit |
JTVC640 |
JITVC850C |
|
Workbench area (length × Wide) |
mm |
1000×380 |
1000×530 |
|
T-groove (Qty × size × Spacin g) |
mm |
3×14×100 |
5×18×100 |
|
Maximum load of workbench |
mm |
300 |
600 |
|
NO. Spindle taper hole NO. |
mm |
NO.40/BT40 |
NO.40/BT40 |
|
Maximum spindle sp eed |
rpm |
8000 |
8000 |
|
Spindle motor |
Kw |
5.5/7.5 |
7.5/11 |
|
X,Y, Z axis travel |
mm |
550.400.500 |
800.500.700 |
|
Distance from spindle head to work ta ble |
mm |
100-600 |
110-810 |
|
Distance from main shaft to column guide ra il surface |
mm |
430 |
575 |
|
Fast moving speed of X , Y and Z axes |
m/min |
20.20.20 |
20.20.20 |
|
positioning accura cy |
mm |
±0.005/300 |
±0.005/300 |
|
Repetitive positioning accur acy |
mm |
±0.003 |
±0.003 |
|
Magazine capac ity |
|
16 |
20 |
|
Tool change speed |
sec. |
7/2.5 |
7/2.5 |
|
Tool magazine form |
|
disc |
disc |
|
Air supply press ure |
kgf/cm |
6.5 |
6.5 |
|
Machine tool profile |
mm |
2200×1600×2300 |
2700×2300×2900 |
|
Machine weight |
kg |
2700 |
5800 |
|
Power demand |
KVN |
12 |
15 |
|
CNC system |
|
( Mitsubishi ),KND,FANUC-0i-MF ,,( Siemens ) |
|
