cheapest micro switch manufacturer DEWO DV16 micro switch Air pressure snap action microswitches 10a 16A 250v
cheapest micro switch manufacturer DEWO DV16 micro switch Air pressure snap action microswitches 10a 16A 250v
cheapest micro switch manufacturer DEWO DV16 micro switch Air pressure snap action microswitches 10a 16A 250v
cheapest micro switch manufacturer DEWO DV16 micro switch Air pressure snap action microswitches 10a 16A 250v
cheapest micro switch manufacturer DEWO DV16 micro switch Air pressure snap action microswitches 10a 16A 250v
cheapest micro switch manufacturer DEWO DV16 micro switch Air pressure snap action microswitches 10a 16A 250v
cheapest micro switch manufacturer DEWO DV16 micro switch Air pressure snap action microswitches 10a 16A 250v
cheapest micro switch manufacturer DEWO DV16 micro switch Air pressure snap action microswitches 10a 16A 250v

cheapest micro switch manufacturer DEWO DV16 micro switch Air pressure snap action microswitches 10a 16A 250v

FOB Reference Price: Get Latest Price
≥100 Pieces
US $0.35
≥1000 Pieces
US $0.31
≥100000 Pieces
US $0.15
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
DEWO
Model Number:
DV-16-A01-MM1-200E, DV-S16-A01-MM1-200E
Max. Current:
20A
Operating Temperature:
40T125, 40T125
Protection Level:
IP40
Item:
16A micro switch
Electrical Life:
50,000cycles
Mechanical Life:
1,000,000cycles
Autuator:
01 lever
Terminal Type:
solder terminal
Circuit:
SPDT/SPST-NO/SPST-NC
Operating Force:
0.5~2.5N
Approval:
UL, KC, ENEC, CQC, CB, CUL

Quick Details

Whether the smart:
NO
Max. Voltage:
250V
Place of Origin:
Guangdong, China
Brand Name:
DEWO
Model Number:
DV-16-A01-MM1-200E, DV-S16-A01-MM1-200E
Max. Current:
20A
Operating Temperature:
40T125, 40T125
Protection Level:
IP40
Item:
16A micro switch
Electrical Life:
50,000cycles
Mechanical Life:
1,000,000cycles
Autuator:
01 lever
Terminal Type:
solder terminal
Circuit:
SPDT/SPST-NO/SPST-NC
Operating Force:
0.5~2.5N
Approval:
UL, KC, ENEC, CQC, CB, CUL

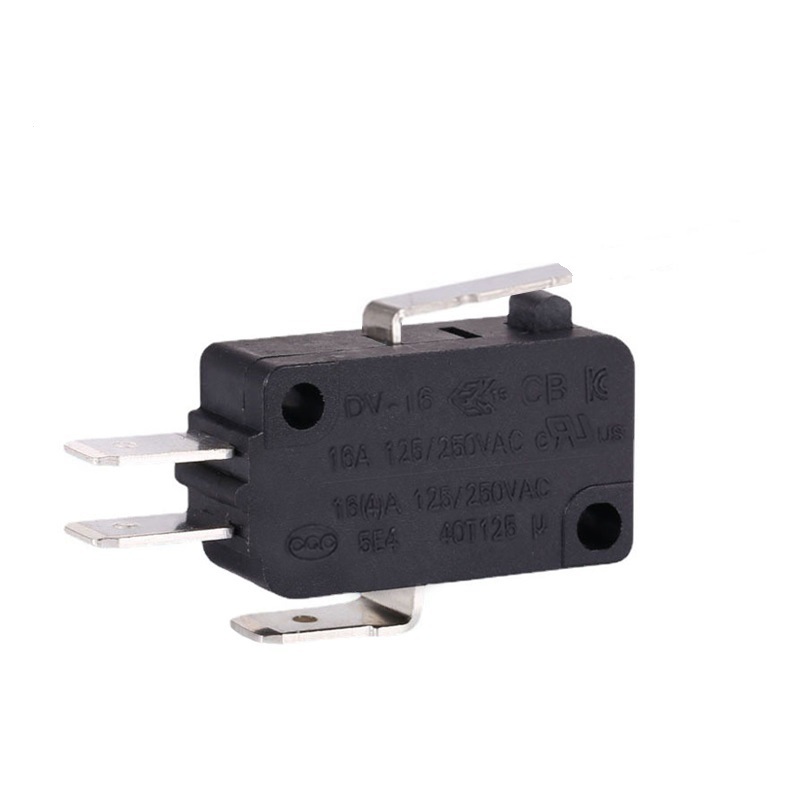

Air pressure snap action 15a 250v t85 micro switch

Product Description

Features :

(1) Various levers and terminal types are available for choice.

(2) Compact design, assemble easily.

(3) Fast action, long life, which could decline cost.

(4) Quality is reliable, has got UL, CUL, ENEC, CQC,CB, SGS certificates.

(5) Strict inspection: automated machine and human double full-inspection.

(6) Widely used in home appliances, electronic devices, automobile industry automation machines.

Item

Air pressure  micro switch

Model Number

DV-16-A01-MM1-200E

Rating

16A 250VAC

Temperature Range

-45°C~+125°C

IP Code

IP40

Dimension

40*19.3*10.3mm

Material of Case & Knob

PBT

Material of Contacts

AgNi10

Material of Terminal

Cu

Life

Electrical Service Life

50,000Cycles

Mechanical Service Life

1,000,000Cycles

Approval

UL, CUL, ENEC, CQC,CB, KC
