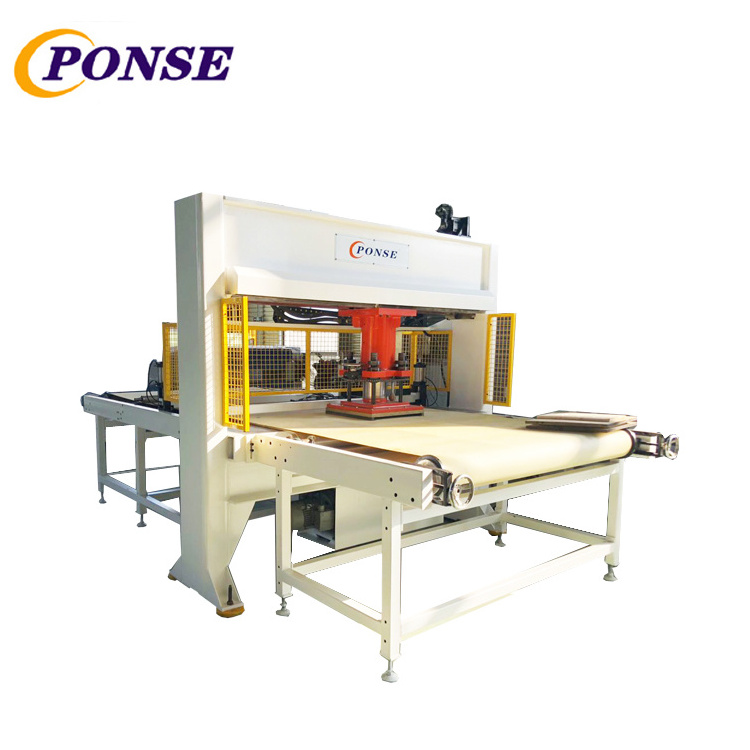

Hydraulic Leather Moving Head Cutting Press Machine for Shoes

Hydraulic Leather Moving Head Cutting Press Machine for Shoes

FOB Reference Price: Get Latest Price

≥1 Sets

US $18000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Production Capacity:: 10000pcs/day

Place of Origin:: Jiangsu, China

Brand Name:: PONSE

Power:: 2.2

Dimension(L*W*H):: 3.6*2.3*2.3m

Weight:: 2.8

Features:: Cutting

Name:: Micom control traveling head cutting machine for bra sponge

Color:: Customize

Certification:: CE, ISO9001

Max scissoring forxe:: 400KN

Stroke adjustment range:: 5-130mm

Cutting speed:: 0.18m/s

Diameter of suction disc:: 300mm

Size of working table:: 1600*500mm

Key Selling Points:: Multifunctional

Quick Details

Voltage:: 220V/380V, 380V, 220V

Marketing Type:: New Product 2023

Application:: cutting fabric leather and so on

Production Capacity:: 10000pcs/day

Place of Origin:: Jiangsu, China

Brand Name:: PONSE

Power:: 2.2

Dimension(L*W*H):: 3.6*2.3*2.3m

Weight:: 2.8

Features:: Cutting

Name:: Micom control traveling head cutting machine for bra sponge

Color:: Customize

Certification:: CE, ISO9001

Max scissoring forxe:: 400KN

Stroke adjustment range:: 5-130mm

Cutting speed:: 0.18m/s

Diameter of suction disc:: 300mm

Size of working table:: 1600*500mm

Key Selling Points:: Multifunctional

The machine is suitable for cutting single layer or multiple layers of leather, rubber, plastic, paperboard, fabric, chemical fiber, nonwoven cloth and etc. by forming cutter.

1. Gantry frame structure made of profile steel is adopted, with high intensity and without deformation.
2. The cutting head can automatically move horizontally, with excellent operating visual field and safe and reliable operation.
3. Punch up position after return can be arbitrary set and to reduce unnecessary idle travel, greatly improve work efficiency
4. Use of special differential oil hydraulic system, cutting light, fast, and low noise.
5. Operation with both hands makes high safety, easy and convenient.
6. Products of special specifications can be customized.

Model number	PS/E1-300	PS/E1-300
Max. Cutting Force	300KN	400KN
Working Table Size	1760*500mm	1760*500mm
Cutting Head Size	500*500mm	500*500mm
Adjustable Stroke	10-125mm	10-125mm
Cutting speed	0.18m/s	0.18m/s
Upper and lower working mesa	40-200mm	40-200mm
Motor Power	2.2KW	3KW
Vice motor power	0.55KW	0.55KW
Machine Size	22007202000mm	24007202000mm
Gross Weight	1600kg	2100kg

Automatic Ball Cutting Machine offer a wide & easily accessible working area suitable for cutting a wide variety of synthetic materials in either roll or sheet form. The traveling head presses are versatile die cutting machines designed to use small to medium cutting dies to cut a wide variety of materials.

such as:
·Hard-board, paper, textiles, plastics, sponge, leather, rubber, packing, floor covering,carpeting, glass-fiber cloth, cork, and more.Balls, labels, envelopes, paper tubes, garments, gaskets, plastic novelties, rubber products, shoes, leather goods, toys and more.
