- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
MILES
-
Model Number:
-
Model-400TD
-
Voltage:
-
110V-240V, 220V/110V,50/60hz, Ac
-
Dimension(L*W*H):
-
1850*580*1220mm
-
Weight:
-
120 KG
-
Model:
-
MT-300TD/400TD/500TD/600TD
-
Max cutting width:
-
300/400/500/600mm
-
Cutting length:
-
1-9999mm (adjustable)
-
Cutting precision:
-
0.1mm
-
Cutting speed:
-
30-120 pcs/min
-
Language:
-
Chinese and English
-
Package:
-
Wooden case
-
Optional:
-
Electronic eye, Spring device, Static eliminator
Quick Details
-
Machine Type:
-
bag making machine
-
Bag Type:
-
plastic bag
-
Material:
-
Plastic
-
Place of Origin:
-
China
-
Brand Name:
-
MILES
-
Model Number:
-
Model-400TD
-
Voltage:
-
110V-240V, 220V/110V,50/60hz, Ac
-
Dimension(L*W*H):
-
1850*580*1220mm
-
Weight:
-
120 KG
-
Model:
-
MT-300TD/400TD/500TD/600TD
-
Max cutting width:
-
300/400/500/600mm
-
Cutting length:
-
1-9999mm (adjustable)
-
Cutting precision:
-
0.1mm
-
Cutting speed:
-
30-120 pcs/min
-
Language:
-
Chinese and English
-
Package:
-
Wooden case
-
Optional:
-
Electronic eye, Spring device, Static eliminator
Video Description
Product Description

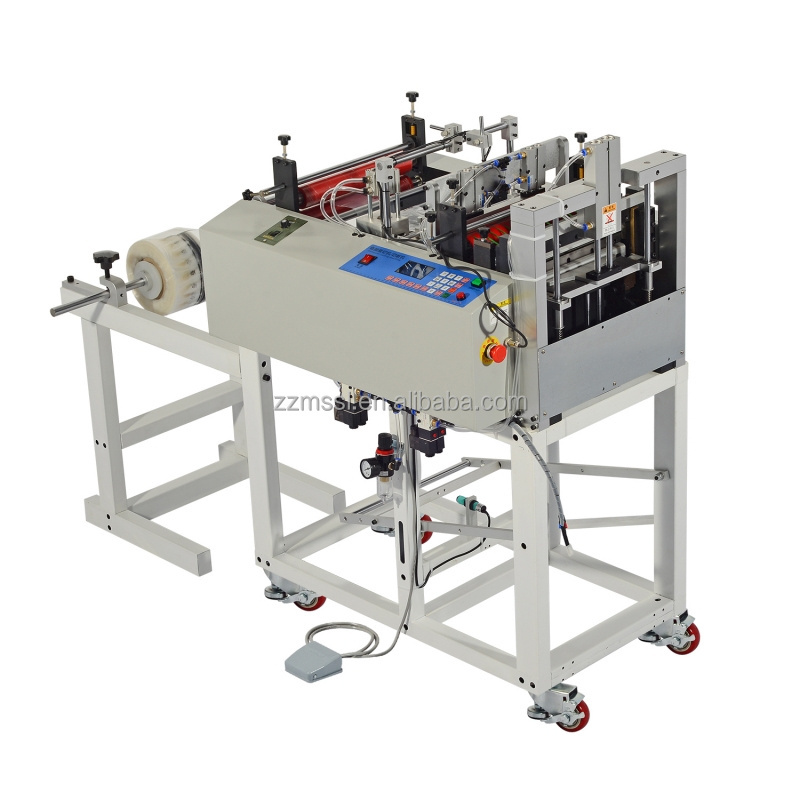

Fully Automatic Plastic Bag Cutting and Sealing Machine Plastic Bag Making Machine For Shopping Bag
This bag making machine machine is suitable for all kinds of plastic films, such as PE/PVC/PET/OPP/PP film, anti-static film,printing packaging film, etc. The high-power stepping motor precisely controls the cutting length, automatic counting.
Specification
|
Model
|
MT-300TD/400TD/500TD/600TD
|
|
Max cutting width
|
300/400/500/600mm
|
|
Cutting length
|
1-9999mm (adjustable)
|
|
Cutting precision
|
0.1mm
|
|
Cutting speed
|
30-120 pcs/min
|
|
Voltage
|
220V/110V,50/60hz, Ac
|
|
Language
|
Chinese and English
|
|
Package
|
Wooden case
|
|
Optional
|
Electronic eye, Spring device, Static eliminator
|
Details Images
Control Panel
LCD multi-function large screen display, one-key switch between Chinese and English, easy to operate.
Feeding Rubber Roller
It is made of special superior rubber, which is wear-resistant, pressure-resistant and high temperature resistant.
Cutting Blade
Using high-quality SKD11 high-speed steel knife,
the blade is sharp and durable. Ensure that the section is flat and free of burrs.
Automatic Feeding System
Tension System, High-sensitivity photoelectric sensor cooperates with motor to automatically sense pre-feeding. Speed controller. Adjust the speed at any time.
Punching Device
Different molds can be made (round hole/ square hole/ aircraft hole, etc.), punching according to the mold.
Matsushita Electronic Eye
Fully automatic location tracking.
Positioning and cutting, higher accuracy.
Pneumatic Receiving
The materials are collected neatly.
Spring Device
Flatten and straighten the material. Prevent wrinkles.
