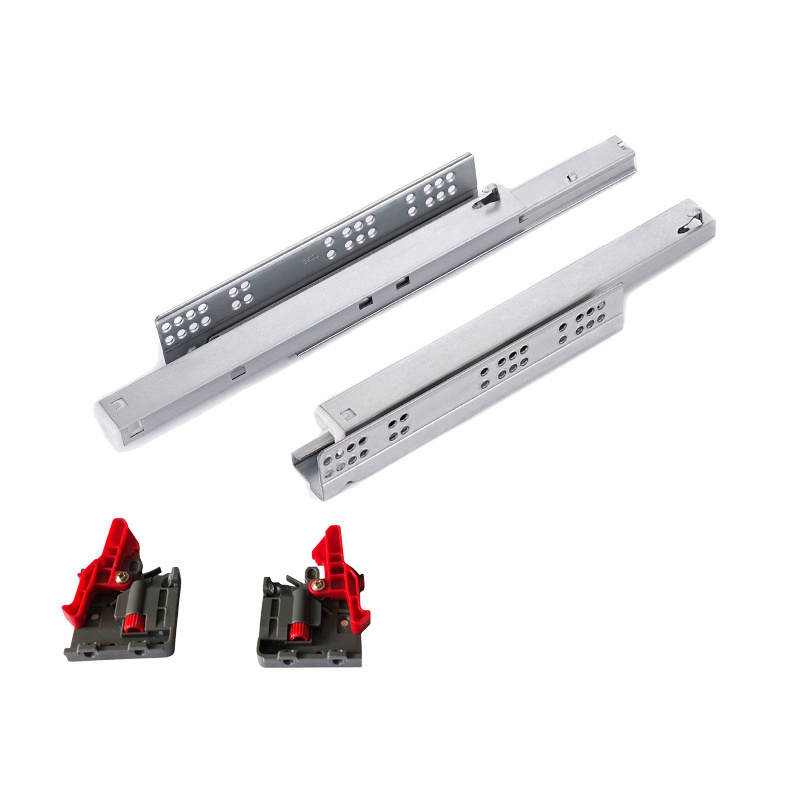

450mm Drawer Slide For Cupboard Push to Open Drawer Runners 3-Fold Undermount Drawer Slide with Clips

450mm Drawer Slide For Cupboard Push to Open Drawer Runners 3-Fold Undermount Drawer Slide with Clips

FOB Reference Price: Get Latest Price

≥300 Pairs

US $4.76

≥1000 Pairs

US $4.13

≥3000 Pairs

US $3.95

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: Q235 Cold rolled steel

Place of Origin:: Guangdong, China

Brand Name:: WALITON

Model Number:: WLT-Y0618P

Usage:: EU type Cabinet Drawers wire basket

Mounting Type:: Under mounting

Extension Travel:: Full Extension

Special Features:: Push to Open

Drawer Box Length:: 450mm (18")

Max Drawer Side Thickness:: < 16MM

Net Weight(Non Accessories Included):: 2.113 kgs

Loading Rate:: 35 kgs

Release Lever Adjustment Type:: Plastic Locking Device 1D

Quick Details

Application:: Kitchen, Drawer, wardrobe, drawer, kitchen, Wood residential and commercial furniture, Drawers requiring concealed soft-close slides, Woodworking & Cabinetry, MEDICAL & HEALTHCARE, pantry pullouts, garbage pullouts, large file drawers, other specialty uses

Design Style:: Modern

Type:: Soft closing drawer slide

Material:: Q235 Cold rolled steel

Place of Origin:: Guangdong, China

Brand Name:: WALITON

Model Number:: WLT-Y0618P

Usage:: EU type Cabinet Drawers wire basket

Mounting Type:: Under mounting

Extension Travel:: Full Extension

Special Features:: Push to Open

Drawer Box Length:: 450mm (18")

Max Drawer Side Thickness:: < 16MM

Net Weight(Non Accessories Included):: 2.113 kgs

Loading Rate:: 35 kgs

Release Lever Adjustment Type:: Plastic Locking Device 1D

Specification

Full Extension Push to Open Undermount Drawer Runner (Slide On) 450mm (18")

Compatible with 1/2" to 5/8" Drawer Side Material Thickness Telescopic Slide

* Mounting Type: UNDER-MOUNT

* Feature: Push to Open
* Loading Rate: 77 lbs.

* Travel: Full-Extension
* Disconnect Type: Non-Disconnect
* Finish: Galvanized Steel

* Galvanized Steel Thickness: 1.8*1.4*1.0
* Drawer Lengths(NL): 450mm (18 inch.)

*Net Weigt/Pair: 2.113kgs

*Cycling Testing: 50000

Item No.	Size (Inch)	Net Weight （kgs /set)	Carton Dimension (cm)	Packing QTY（set/carton）	G.W （kgs/carton)	N.W （kgs/carton)
WLT-Y0612P	12	1.421	392812	10	14.51	14.21
WLT-Y0614P	14	1.652	442812	10	16.87	16.52
WLT-Y0616P	16	1.883	492812	10	19.23	18.83
WLT-Y0618P	18	2.113	542812	10	21.58	21.13
WLT-Y0620P	20	2.344	592812	10	23.94	23.44
