- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ONEPAPER
-
Weight:
-
3200 KG
-
Dimension(L*W*H):
-
4300*1260*2180
-
Packing form:
-
Three-dimensional
-
Packing material:
-
CPP PE BOPP film
-
Maximum packing dimensions:
-
L220*W120*H120mm
-
Packing speed:
-
50-100bags/min
-
Heating power:
-
4.70KW
-
Motor power:
-
12.00KW
-
Total power:
-
17.20KW
-
Power supply type:
-
Three phase four wire 380V 50Hz
-
Air supply:
-
0.5-0.7Mpa
-
Air consumption:
-
200-300L/min
Quick Details
-
Voltage:
-
380V
-
Power:
-
17.2KW
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONEPAPER
-
Weight:
-
3200 KG
-
Dimension(L*W*H):
-
4300*1260*2180
-
Packing form:
-
Three-dimensional
-
Packing material:
-
CPP PE BOPP film
-
Maximum packing dimensions:
-
L220*W120*H120mm
-
Packing speed:
-
50-100bags/min
-
Heating power:
-
4.70KW
-
Motor power:
-
12.00KW
-
Total power:
-
17.20KW
-
Power supply type:
-
Three phase four wire 380V 50Hz
-
Air supply:
-
0.5-0.7Mpa
-
Air consumption:
-
200-300L/min
|

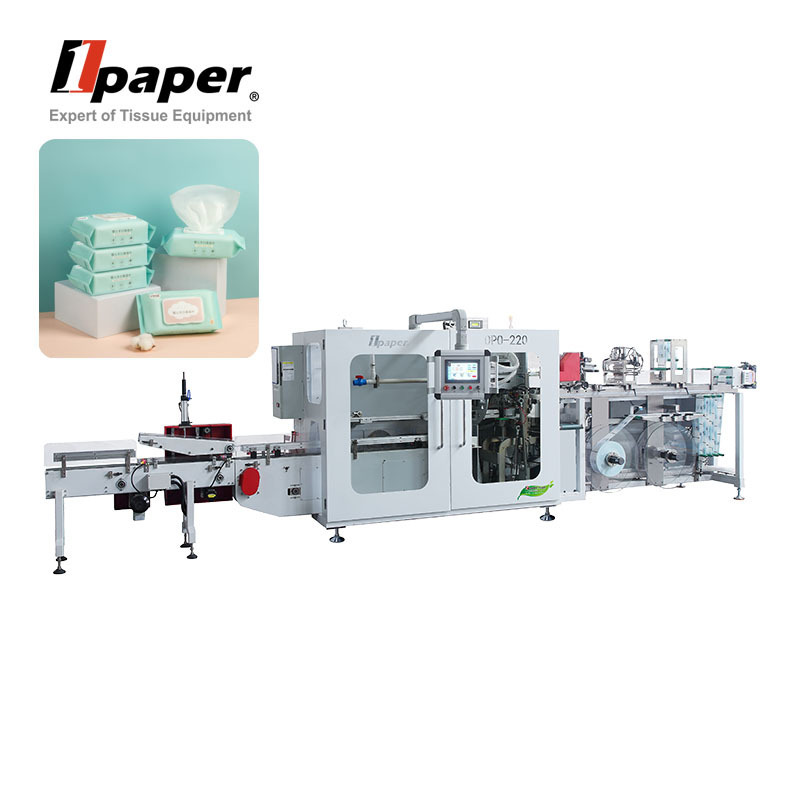

Product name
|
|
Cotton soft towel packing machine
|
|
|
Item/model
|
|
OPO-220M
|
|
|
Packaging form
|
|
Bagging and sealing packaging
|
|
|
Packing material
|
|
CPP film,PE film,BOPP film
|
|
|
Packing specification
|
|
L:80-220mm, W:80-120mm, H:40-100mm
|
|
|
Packing speed
|
|
≤70 bags/minute
|
|
|
Heating power
|
|
3.5KW
|
|
|
Motor power
|
|
9.5KW
|
|
|
Total power
|
|
13KW
|
|
|
Power supply type
|
|
Three-phase four-wire 380V 50Hz
|
|
|
Machine noise
|
|
≤80dB
|
|
|
Air supply
|
|
0.5-0.8 MPa
|
|
|
Air consumption
|
|
200-260L/min
|
|
|
Outline dimensions |
Main machine
|
L5400×W1400×H1850mm
|
|
|
|
Conveying mechanism
|
L1330×W450×H1440mm
|
|
|
machine weight
|
|
≈3300Kg
|
|
soft facial tissue wrapping machine
The package rang is large, the adjustment is convenient, and the quick conversion between various spexitications and sizes can be realized
If you want to learn more about this
cotton soft towel packing machine
Low Price Semi Auto Soft Pocket Tissue Packing Machine Paper Bagging Packaging Machine
Soft Paper Towel Packing Machine
The
soft paper towel packing machine
can complete the steps of batch numbering(optional), cutting and tearing, filming, feeding, wrapping, end sealing, corner folding, side sealing, output, etc.
Facial Tissue Bagging Machine
The
facial tissue bagging machine
adopts automatic material sorting and conveying mechanism , which is convenient for linkage production with automatic production line, which can greatlly reduce labor costs.
soft drawn facial tissue packing machine
The Soft Drawn Facial Tissue Wrapping Machine
is used full servo motor and 10" touch screen, motion control systom, the man-machine interdace display operation is clearer
and simpler. The automation and intelligence are high, the speed is fast, and the operation is more efficient and more humane.
and simpler. The automation and intelligence are high, the speed is fast, and the operation is more efficient and more humane.
Wet Facial Tissue Machine
The
wet facial tissue machine
adopted the photoelectric eye automatic detection and tracking systom, and the empty package does not rake the film, withc sace the packaging materials to the greatest extent, The package film adotps inflatable feeding.
soft drawing facial tissue wrapping machine
The
soft drawing facial tissue wrapping machine adopts flat push type, stable high-speed speration, modularized packaging areak, it is more convenient to change products.
soft drawing facial tissue packing machine
The material pushing transmission sdopts full servo continuous pushing mode, which is stable efficient and fast.
Product Description
|
Product name
|
|
Facial tissue folding machine
|
|
|
Item/model
|
|
F1 SERIES
|
|
|
Folding form
|
|
V-fold
|
|
|
Standing roll
|
|
2 standards can be added according to customer requirements
|
|
|
Max diameter of jumbo roll
|
|
1500mm
|
|
|
Inner diameter of jumbo roll
|
|
Around 3 inches
|
|
|
Jumbo roll basis weight
|
|
12-16g/m²(2 layers),18-22g/m²(1 layer)wood pulp paper,35-80 square meters of non-woven fabric (1 layer)
|
|
|
Folded size
|
|
Customized within the scope according to customer requirements
|
|
|
Folding speed
|
|
≤120 m/min
|
|
|
Fan power
|
|
18.5KW, This power is the data of 6-line machine)
|
|
|
Total power
|
|
22.5KW, This power is the data of 6-line machine)
|
|
|
Power supply type
|
|
Three-phase four-wire 380V 50Hz
|
|
|
Machine noise
|
|
≤80dB
|
|
|
Air supply
|
|
0.5-0.8MPa
|
|
|
Air consumption
|
|
120-160L/min
|
|
If you want to learn more about this
facial tissue folding machine.
|
Product name
|
Facial tissue paper cutting machine
|
|
|
|
Item/model
|
OPQ-258I (single passage)
|
OPQ-258 II (double passage)
|
|
|
Raw material specification
|
Width 45-110mm adjustable, thickness 25-150mm adjustable (products of other sizes can be customized)
|
|
|
|
Production capacity
|
60-260cuts/minute
|
|
|
|
Cutting length
|
Can be freely set (within the adjustable range)
|
|
|
|
Round knife size
|
Φ610mm
|
|
|
|
Power
|
Three-phase four-wire 380V 50Hz 7.4KW
|
Three-phase four-wire 380V
50Hz 10.6KW |
|
|
Air supply
|
0.5Mpa-0.8Mpa
|
|
|
|
Air consumption
|
100-160L/H
|
|
|
|
Outline dimensions
|
L2015×W1820×H2100mm
|
L2015×W1820×H2100mm
|
|
|
Machine weight
|
2600Kg
|
2800Kg
|
|
If you want to learn more about this
facial tissue cutting machine.
|
Product name
|
|
High -speed soft drawn tissue paper packing machine
|
|
|
Item/model
|
|
OPR-128S/150S
|
|
|
Packaging form
|
|
Three-diamensional
|
|
|
Packing material
|
|
CPP film,PE film,BOPP film
|
|
|
Packing specification
|
|
L:90-180mm, W:80-110mm, H:20-80mm
|
|
|
Maximum packing dimensions
|
|
L180*W110*H80mm
|
|
|
Packing speed
|
|
128/150 bags/minute
|
|
|
Heating power
|
|
6.50KW
|
|
|
Motor power
|
|
16.00KW
|
|
|
Total power
|
|
22.50KW
|
|
|
Power supply type
|
|
Three-phase four-wire 380V 50Hz
|
|
|
Air supply
|
|
0.5-0.8MPa
|
|
|
Air consumption
|
|
200-260L/min
|
|
|
Outline dimensions |
Main machine
|
L4050×W1400×H1915mm
|
|
|
|
Conveying mechanism
|
L3850×W750×H1420mm
|
|
|
machine weight
|
|
≈3500Kg
|
|
|
Product name
|
|
Soft drawn tissue paper packing machine
|
|
|
Item/model
|
|
OPR-118
|
|
|
Packaging form
|
|
Three-diamensional
|
|
|
Packing material
|
|
CPP film,PE film,BOPP film
|
|
|
Packing specification
|
|
L:95-230mm, W:80-120mm, H:20-150mm
|
|
|
Packing speed
|
|
50-100 bags/minute
|
|
|
Heating power
|
|
4.70KW
|
|
|
Motor power
|
|
12.00KW
|
|
|
Total power
|
|
17.20KW
|
|
|
Power supply type
|
|
Three-phase four-wire 380V 50Hz
|
|
|
Air supply
|
|
0.5-0.7 MPa
|
|
|
Air consumption
|
|
200-300L/min
|
|
|
Outline dimensions |
Main machine
|
L4300×W1260×H2180mm
|
|
|
|
Conveying mechanism
|
L3580×W488×H460mm
|
|
|
machine weight
|
|
≈3200Kg
|
|
If you want to learn more about this
soft drawn tissue paper packing machin
e
|
Product name
|
|
Box drawn tissue paper packing machine
|
|
|
Item/model
|
|
OPH-120B
|
|
|
Paper quality of carton
|
|
300-400g/m³
|
|
|
Maximum packing dimensions
|
|
L:100-130mm, W:80-140mm, H:40-100mm
|
|
|
Packing speed
|
|
128/150 bags/minute
|
|
|
Hot melt machine power
|
|
4KW
|
|
|
Motor power
|
|
4.87KW
|
|
|
Total power
|
|
8.87KW
|
|
|
Power supply type
|
|
Three-phase four-wire 380V 50Hz
|
|
|
Machine noise
|
|
≥80dB
|
|
|
Air supply
|
|
0.5-0.8MPa
|
|
|
Air consumption
|
|
160-200L/min
|
|
|
Outline dimensions |
Main machine
|
L4550×W1650×H1950mm
|
|
|
|
Conveying mechanism
|
L4000×W660×H1200mm
|
|
|
machine weight
|
|
≈2150Kg
|
|
|
Product name
|
|
Soft drawn facial tissue tundish packing machine
|
|
|
Item/model
|
|
OPZ-500SC
|
|
|
Packaging Materials
|
|
Prefabricated bag (PE)
|
|
|
Maximum bag size
|
|
L640×W450mm
|
|
|
Package style
|
|
Single row 3-6 packs, double row 3-6 packs (according to size)
|
|
|
Medium bag inventory
|
|
≤300个(pcs)
|
|
|
Packing specification
|
|
L120-420mm,W100-210mm, H40-110mmsingle row
|
|
|
|
|
L120-420mm,W100-450mm,H40-110mmDouble row
|
|
|
Production capacity
|
|
≤35(bags/minute)
|
|
|
Power
|
|
Three-phasefour-wire 380V 50Hz 11.4KW
|
|
|
Air supply
|
|
0.6Mpa-0.8Mpa
|
|
|
Air consumption
|
|
180-300L/H
|
|
|
Outline dimensions
|
Host
|
L7200×W3550×H1950mm
|
|
|
|
Conveyor
|
L4050×W1300×H950mm
|
|
|
Machine weight
|
|
2600Kg
|
|
