Quick Details
-
Brand Name:
-
DELIXI
-
Model Number:
-
KG816B
-
Operating Temperature:
-
-25~+45
-
Function:
-
Delay Timing setting control
-
Application:
-
Lighting Products
-

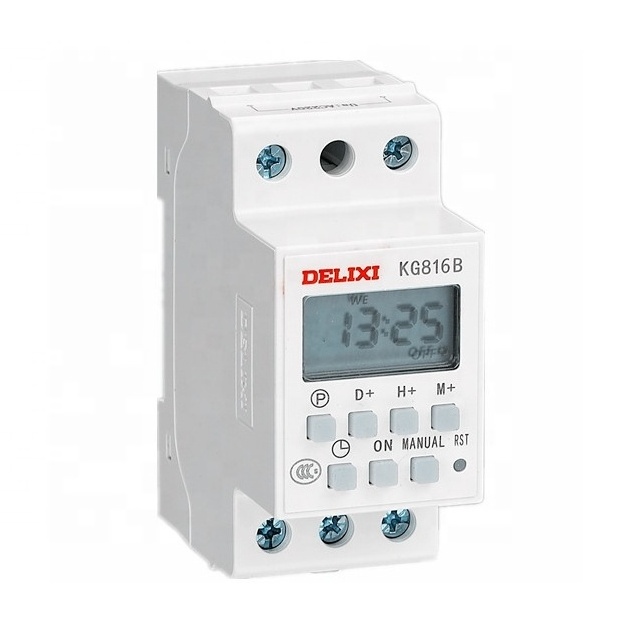

Product Name:
-
Digital Programmable Time Switch
-
time:
-
24 hours
-
warranty:
-
18 Months
-
rated voltage:
-
AC220V / AC380V
-
Type:
-
Relay type
-
Size:
-
width 37mm
-
Wiring:
-
2wire connection
-
Setting:
-
8times of ON and OFF everyday
-
Certification:
-
CE
Quick Details
-
Max. Current:
-
10A
-
Max. Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DELIXI
-
Model Number:
-
KG816B
-
Operating Temperature:
-
-25~+45
-
Function:
-
Delay Timing setting control
-
Application:
-
Lighting Products
-
Product Name:
-
Digital Programmable Time Switch
-
time:
-
24 hours
-
warranty:
-
18 Months
-
rated voltage:
-
AC220V / AC380V
-
Type:
-
Relay type
-
Size:
-
width 37mm
-
Wiring:
-
2wire connection
-
Setting:
-
8times of ON and OFF everyday
-
Certification:
-
CE
Specification
|
Model
|
KG816B Time control switch
|
|
Conventional thermal current
|
10A
|
|
AC-15 (Ue) rated voltage
|
380/240V
|
|
AC-15 (Ie)
|
1.9/3A
|
|
Control circuit voltage(Us)
|
AC220V, AC380V
|
|
Daily Travel time error
|
within +/-2s (24hours)
|
|
Number of Switching
|
Setting 8 times opening, and 8 times closing every day
|
|
Mechanical life
|
≥1,000,000 times
|
|
Electrical life
|
≥100,000times
|
|
Shell protection rating
|
IP50
|
|
Setting
|
The longest time is controlled to 168 hours, and the shortest time
is controlled to 1 minute |
