Quick Details
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Secukey

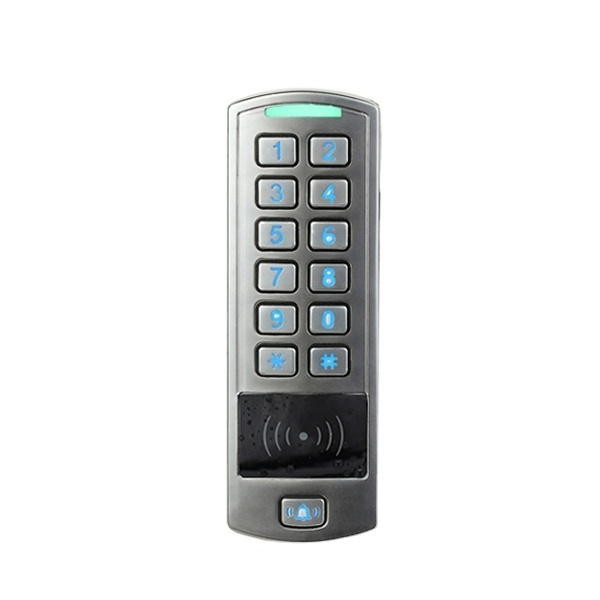

RFID Readers Metal Keypads Access Control Powerful NFC RFID Card Reader Functions High Safety Level Waterproof IP66
Main Features
SK6-X
Universal Keypad (EM + HID + MF)
> Waterproof, conforms to IP66
>
One relay, 600 users
>
Card type: 125KHz EM card,125KHz HID card, and 13.56Mhz Mifare Card
>
PIN length: 4~6 digits
>
Wiegand 26~37 bits input & output
>
Can be used as Wiegand reader with LED & Buzzer output
>
Pulse mode, Toggle mode
>
2 devices can be interlocked for 2 doors
>
12~28V AC/ DC
Specification
|
User Capacity
Common Users
Panic Users
|
600
598
2
|
|
Operating Voltage
Idle Current
Active Current
|
12~28V AC/DC
< 65mA
< 100MA
|
|
Proximity Card Reader
Radio Technology
Read Range
|
HID & EM & Mifare
125KHz &13.56Mhz
2~6 cm
|
|
Wiring Connections
|
Relay output, exit button, alarm, door contact,
Wiegand input, Wiegand output
|
|
Relay
Adjustable Relay Output Time
Lock Output Load
|
One (NO, NC, Common)
0~99 Seconds (5 seconds default)
2 Amp Maximum
|
|
Wiegand Interface
Wiegand Input
Wiegand Output
PIN Output
|
Wiegand 26~37bits
26~37bits
26~37bits
4 bits, 8 bits(ASCII), 10 digits Virtual Number
|
|
Environment
Operating Temperature
Operating Humidity
|
Meets IP66
-40
°
C ~ 60
°
C (-40
°
F ~ 140
°
F)
0%RH ~ 98%RH
|
|
Physical
Surface Finish
Dimensions
Unit Weight
Shipping Weight
|
Zinc-Alloy Enclosure
Powder Coat
L150xW51xH23mm
500g
600g
|
