▲Latest designed Drilling Boom, Multi-angle operation. And the drill rig is equipped with drill pipe sticking prevention system, reduce the sticking drilling rate.
▲Powerful and reliable engine,adopt Yuchai China stage Ⅲ diesel engine as driving force which has advantages of large power, small volume, small vibration and reliable operation.
▲Multi-directional Drilling Design.For complex drilling conditions.Heavy duty box type beam for better resistance to pulling, pressing, cutting, bending, and twisting force. Simple design for convenient maintenance and precision positioning.
▲A luffing mechanism is used for the carriage swing angle adjustment. The total swing angle is 130° (95° to the right and 35° to the left).There is no need to change the pivot for the switching between horizontal hole and vertical hole.
▲A special rod positioning mechanism is adopted to guide the drilling tools during the entire drilling process, avoiding any hole deviation.
- Product Details
- {{item.text}}
Quick Details
-
Drilling Diameter:
-
90-105mm
-
Drilling Depth:
-
24m
-
Mobility:
-
portable
-
Product Name:
-
integrated drill rig
-
Capacity:
-
12 m³/min
-
Discharge pressure:
-
15 bar
-
Specification of drilling rod:
-
64*3000mm
-
Hole Diameter:
-
90-105 mm
-
Hole Depth:
-
24 m
-
Rotary Torque(Max.):
-
1680 N.m(Max)
-
Leveling angle of track:
-
±10°
-
Traveling Speed:
-
0-3km/h
-
Climbing capacity:
-
25°
Quick Details
-
Place of Origin:
-
Henan, China
-
Dimension(L*W*H):
-
8850*2180*2830mm
-
Weight:
-
13800 KG
-
Drilling Diameter:
-
90-105mm
-
Drilling Depth:
-
24m
-
Mobility:
-
portable
-
Product Name:
-
integrated drill rig
-
Capacity:
-
12 m³/min
-
Discharge pressure:
-
15 bar
-
Specification of drilling rod:
-
64*3000mm
-
Hole Diameter:
-
90-105 mm
-
Hole Depth:
-
24 m
-
Rotary Torque(Max.):
-
1680 N.m(Max)
-
Leveling angle of track:
-
±10°
-
Traveling Speed:
-
0-3km/h
-
Climbing capacity:
-
25°
Product Description

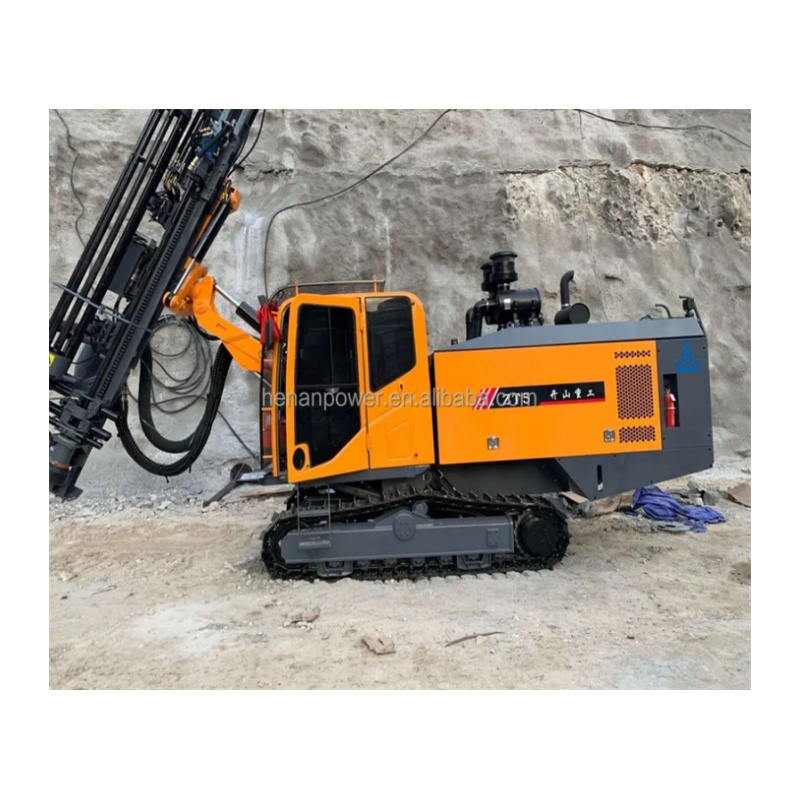

The ZT5 integrated down the hole drill rig for open use can drilling vertical, inclined and horizontal holes, mainly used for open-pit mine, stonework blast holes and pre-splitting holes, It is driven by the Yuchai China stage Ⅲ diesel engine and the two-terminal output can drivel the screw compression system and hydraulic transmission system.
The drill rig is equipped with the automatic rod handling system, drill pipe floating joint module, drill pipe lubrication module, drill pipe sticking prevention system, hydraulic dry dust collection system, air conditioning cab, etc. optional drilling angle and depth indication function. The drill rig is characterized by excellent integrity, high automation, efficient drilling, environment-friendliness, energy conservation, simple operation, flexibility and travelling safety, etc.
Product Parameters
|
Model
|
ZT5
|
|
Transport dimensions (L×W×H)
|
8850×2180×2830 mm
|
|
Weight
|
13800kg
|
|
Drilling hardness
|
f=6-20
|
|
Drilling diameter
|
90-105 mm
|
|
Ground clearance
|
430 mm
|
|
Leveling angle of track
|
±10°
|
|
Travelling speed
|
0-3Km/h
|
|
Climbing capacity
|
25°
|
|
Traction
|
120KN
|
|
Rotary torque (Max)
|
1680N·m (Max)
|
|
Rotation speed
|
0-120rpm
|
|
Lifting angle of drill boom
|
up47°, down20°
|
|
Swing angle of drill boom
|
Right 50°, left 20°
|
|
Swing angle of carriage
|
Right 95°, left 35°
|
|
Tilt angle of beam
|
120°
|
|
Compensation stroke
|
1200 mm
|
|
Rotation Head stroke
|
3490 mm
|
|
Maximum propelling force
|
25 KN
|
|
Method of propulsion
|
Motor+roller chain
|
|
Depth of economical drilling
|
24 m
|
|
Number of rods
|
7+1
|
|
Specifications of drilling rod
|
Φ64x 3000 mm
|
|
DTH hammer
|
M30
|
|
Engine
|
Yuchai YCA07240-T300
|
|
Rated power
|
176 KW
|
|
Rated revolving speed
|
2200 r/min
|
|
Screw air compressor
|
Zhejiang Kaishan
|
|
Capacity
|
12 m³/min
|
|
Discharge pressure
|
15 bar
|
|
Traveling control system
|
Hydraulic pilot
|
|
Drilling control system
|
Hydraulic pilot
|
|
Anti-Jamming
|
Automatic electro-hydraulic anti-jamming
|
|
Voltage
|
24V DC
|
|
Safe cab
|
Meet the requirements of ROPS & FOPS
|
|
Indoor noise
|
Below 85dB(A)
|
|
Seat
|
Adjustable
|
|
Air-conditioning
|
Standard temperature
|
|
Entertainment
|
Radio
|
Product Advantages
Detail Display
Automatic loading and unloading drill pipe
Rod storage rack and auto changer. High efficient,fast and reliable mechanical rod changer.Clamp type hydraulic handling platform for difference sizes of rod to handle easily.
Air conditioning cab
The drill rig is equipped with the air conditioning cab,Rock falling protect FOPS and Rollover proof ROPS，all view AC cab with noise and shock proof.
Chassis
Track type heavy duty chassis, Powerful traction force and high ground clearance for strong off road capabilities.
Dust collector
ZT5 is with Dust Collector.Reduce dust and protect workers’ health. Reduce air pollution and protect the atmospheric environment.
Product Application
The ZT5 integrated down the hole drill rig for open use can drilling vertical, inclined and horizontal holes, mainly used for open-pit mine,stonework blast holes and pre-splitting holes
