Quick Details
-
Type:
-
In-line, Air cooled 3Cylinder, 4 Cycle Diesel Engine
-
Displacement:
-
2.827 Liters
-
Compression Ration:
-
17
-
Direction of rotation:
-
Counterclockwise(face to flywheel end)
-
Combustion system:
-
Direct injection
-
Inspiration:
-
Natural intake
-
Oil consumption ratio:
-
2.04g/kwh(limit value)
-
Fuel consumption ratio:
-
263.8g/kwh(limit value)
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Deutz
-
Model:
-
F3L912
-
Type:
-
In-line, Air cooled 3Cylinder, 4 Cycle Diesel Engine
-
Displacement:
-
2.827 Liters
-
Compression Ration:
-
17
-
Direction of rotation:
-
Counterclockwise(face to flywheel end)
-
Combustion system:
-
Direct injection
-
Inspiration:
-
Natural intake
-
Oil consumption ratio:
-
2.04g/kwh(limit value)
-
Fuel consumption ratio:
-
263.8g/kwh(limit value)

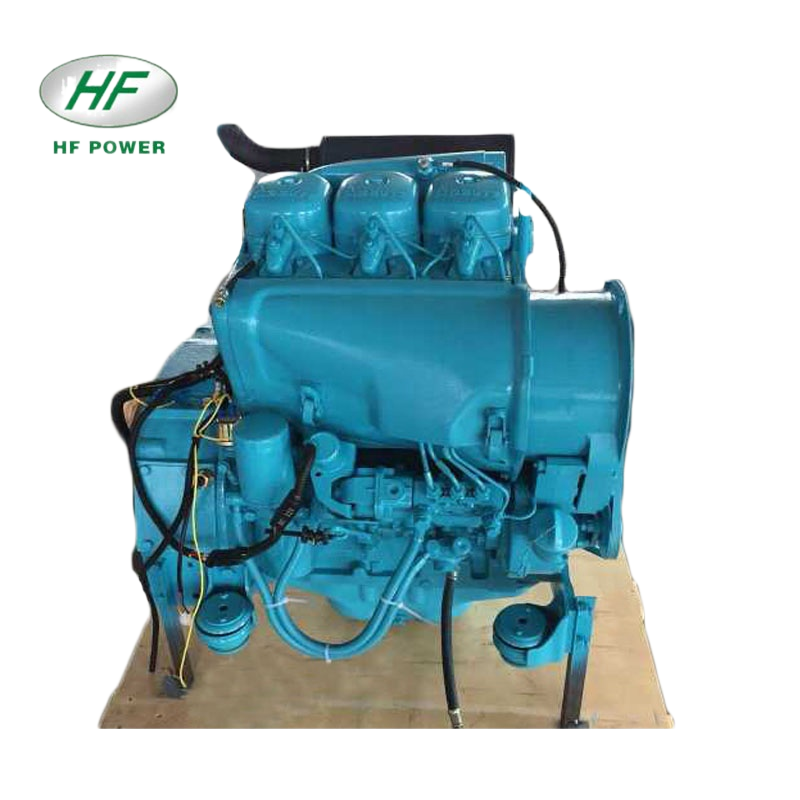

Deutz 3 cylinder deutz f3l912 engine
(1)Small seize,light weight ,low fuel consumption,long service time
(2)Wide application:engineering machineries, mining machineries,automobiles, agriculural equipments generating
equipments, medium and small ship ect.
(3)Fine adaptablity:reliable in dry,hot cold weather and in poor water quality condition as well as in highland area
and low pollution requested working environment
As export company of the factory ,we' ve been on machinery industry with 10 years with clients from Middle East,
South America, Africa, Australia and Southeast Asia, including government departments of some country.
|
In-line, 3Cylinder, 4 Cycle Diesel Engine |
|
|
Bore×Stroke |
100mm×120mm |
|
Displacement |
2.827 Liters |
|
Compression Ration |
17:1 |
|
Cooling Way |
Air cooled |
|
Combustion system |
Direct injection |
|
Inspiration |
Natural intake |
|
Direction of rotation |
Counterclockwise(face to flywheel end) |
|
Fuel consumption ratio |
263.8g/kwh(limit value) |
|
Oil consumption ratio |
2.04g/kwh(limit value) |
|
Lubricant Capacity |
8Liters |
|
Net Weight |
330kg |
|
Overall Dimension(L×W×H) |
722mm×664mm×814mm |
|
Usage |
Power class |
Power |
Speed (rpm) |
|||||
|
1500 |
1800 |
2000 |
2150 |
2300 |
2500 |
|||
|
Construction equipment |
ISO 3046/1(IFN) (Highly intermittent) |
P(kW) |
26 |
31 |
34 |
36 |
38 |
40 |
|
P(HP) |
35 |
42 |
46 |
49 |
52 |
54 |
||
|
ISO 3046/1(IFN) (Intermittent) |
P(kW) |
25 |
29 |
32 |
35 |
36 |
38 |
|
|
P(HP) |
34 |
39 |
44 |
48 |
49 |
52 |
||
|
ICFN (Continuous) |
P(kW) |
24 |
28 |
30 |
32 |
35 |
|
|
|
P(HP) |
33 |
38 |
41 |
44 |
48 |
|
||
|
Genset |
ICXN (Continuous) |
P(kW) |
24 |
28 |
|
|
|
|
|
P(HP) |
33 |
38 |
|
|
|
|
||
|
Marine
|
ICXN |
P(kW) |
24 |
28 |
30 |
32 |
35 |
|
|
P(HP) |
33 |
38 |
41 |
44 |
48 |
|
||
|
I0FN |
P(kW) |
|
|
|
36 |
38 |
40 |
|
|
P(HP) |
|
|
|
49 |
52 |
54 |
||
Deutz F3L912 diesel engine Standard configuration:
oil filter, diesel filter,oil batch air filter,12V starting motor,12Vcharged generator,4 engine elastic supports,flywheel:6.5, flywheel housing:SAE5, cylinder head temperature sensor and alarm switch,oil pressure sensor and alarm switch,diesel engine accelerator adjust device,mechanical adjusting speed device, diesel engine paint(gray),exhaust manifold silencer,mechanical shut down,optional:electric shut down device 12V
Click here for more information
concrete pump, water pump,agriculture irrigation pump,
fire pump, hydraulic pump, drilling, Triangular prism pump,
skid steer,tractor, construction machinery, generator set
2. About 280 technical employees in the factory
3. More than 30 years experience in diesel engine field
4. High quality and competitive price
5. Professional service and prompt reply
Certificate
