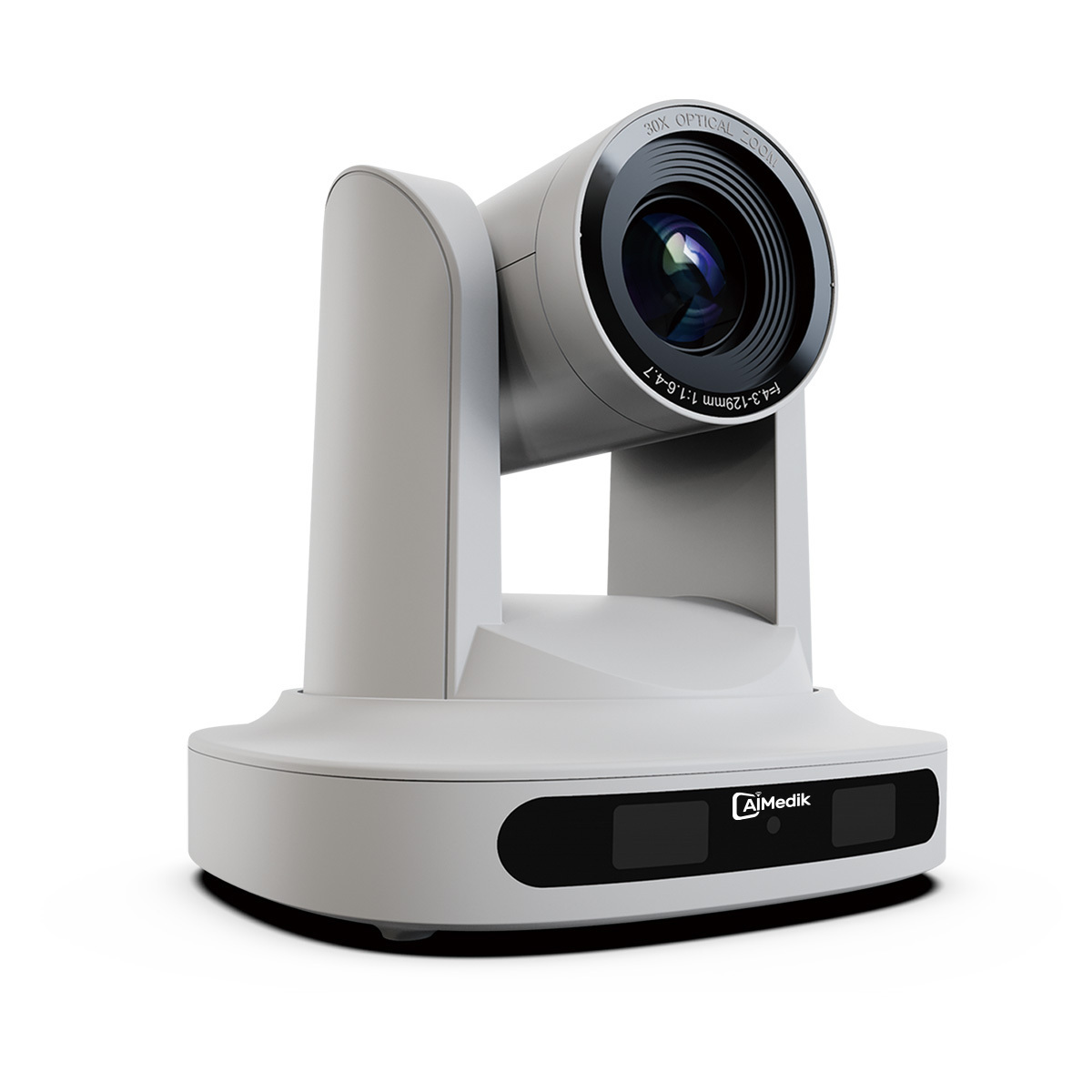

Quick Details
-
Model Number:
-
AP30
Quick Details
-
Type:
-
Network Conference System
-
Place of Origin:
-
China
-
Brand Name:
-
AIMEDIK
-
Model Number:
-
AP30
Specification
|
MODEL NO.
|
|
AP20
|
AP30
|
AP20-NDI
|
AP30-NDI
|
|||
|
INTERFACES
|
Video Out
|
SDI, HDMI
|
|
|
|
|||
|
|
LAN Port
|
IP Streaming: RTSP/RTMP/SRT
|
|
|
|
|||
|
|
|
POE
|
POE
|
POE&NDI丨 HX
|
POE&NDI丨 HX
|
|||
|
|
Audio Input
|
3.5mm audio (Line-level)
|
|
|
|
|||
|
|
Control Interface
|
RS-232 In and Out, RS485 In
|
|
|
|
|||
|
|
Control Protocol
|
Onvif, VISCA over IP/ VISCA/ Pelco-D/P
|
|
|
|
|||
|
|
Video Format
|
HDMI/ SDI Video up to 1080P60
|
|
|
|
|||
|
CAMERA PARAMETERS
|
Optical Zoom
|
20×
|
30×
|
20×
|
30×
|
|||
|
|
Focal Length
|
F=5.5~110mm
|
F=4.3~129mm
|
F=5.5~110mm
|
F=4.3~129mm
|
|||
|
|
View Angle
|
3.3°(tele)
|
2.34°(tele)
|
3.3°(tele)
|
2.34°(tele)
|
|||
|
|
|
54.7°(wide)
|
65.1°(wide)
|
54.7°(wide)
|
65.1°(wide)
|
|||
|
|
Aperture Value
|
F1.6 ~ F3.5
|
F1.6 ~ F4.7
|
F1.6 ~ F3.5
|
F1.6 ~ F4.7
|
|||
|
|
Sensor
|
1/2.8 inch, High quality HD CMOS sensor
|
|
|
|
|||
|
|
Effective Pixels
|
16: 9, 2.07 Megapixel
|
|
|
|
|||
|
|
Digital Zoom
|
10×
|
|
|
|
|||
|
|
Minimum Illumination
|
0.5Lux (F1.8, AGC ON)
|
|
|
|
|||
|
|
DNR
|
2D & 3D DNR
|
|
|
|
|||
|
|
SNR
|
>55dB
|
|
|
|
|||
|
|
White Balance
|
Auto/ Manual/ One Push/ 3000K/ 3500K/ 4000K/ 4500K/ 5000K/ 5500K/ 6000K/ 6500K/ 7000K
|
|
|
|
|||
|
|
WDR
|
OFF/ Dynamic level adjustment
|
|
|
|
|||
|
|
Video Adjustment
|
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve
|
|
|
|
|||
|
|
Other Camera Parameters
|
Auto Focus, Auto Aperture, Auto Electronic Shutter, BLC
|
|
|
|
|||
|
PTZ PARAMETERS
|
Rotation Angle
|
Pan: ±170°, Tilt: -30°~+90°
|
|
|
|
|||
|
|
Rotation Speed
|
Pan: 60°/sec (Range: 0.1 -180°/sec), Tilt: 30°/sec (Range: 0.1-80°/sec)
|
|
|
|
|||
|
|
Preset Number
|
255 presets (10 presets by remote controller)
|
|
|
|
|||
|
OTHERS
|
Input Voltage
|
DC12V±10%
|
|
|
|
|||
|
|
Input Current
|
1A (Max)
|
|
|
|
|||
|
|
Consumption
|
12W (Max)
|
|
|
|
|||
|
|
Temperature
|
Working Temperature: -10~+50°C, Store Temperature: -10~+60°C
|
|
|
|
|||
|
|
Working Humidity
|
Working Humidity: 20~80% RH (no condensation), Store Humidity: 20~95% RH (no condensation)
|
|
|
|
|||
|
|
Dimension
|
170×170×180.31mm
|
|
|
|
|||
|
|
Weight
|
Net weight: 1.25kg; Gross weight: 2.1kg
|
|
|
|
|||
|
|
Accessories
|
Power Supply, RS232 Control Cable, Remoter, Manual
|
|
|
|
|||
|
|
Installation Methods
|
1/4 inch tripod hole; Bracket installation for Optional
|
|
|
|
|||
