Quick Details
-
Bottle Volume(ml):
-
500 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HANYU
-
Year:
-
new
-
Voltage:
-
380-240-110V/50-60HZ
-
Dimension(L*W*H):
-
1870*630*1450MM
-
Hollow part volume:
-
100-2000ml
-
Clamping Force (kN):
-
80
-
Power (kW):
-
8
-
Weight (KG):
-
650 KG
-
Weight:
-
1000kg
-
After-sales Service Provided:
-
No overseas service provided
-
Power(W):
-
10KW
-
Automatic:
-
No
-
pet bottle blowing machine:
-
bottle
-
Product name:
-
PET Bottle Blowing Machine
-
Suitable bottle:
-
100-2000ml Bottle
-
Key words:
-
Blowing Mold Machine
-
Bottle material:
-
Pet Plastic
-
Type:
-
Stretch Pet Blow Moulding
Quick Details
-
Neck Diameter(mm):
-
24.28 mm
-
Max.Bottle Diameter(mm):
-
120 mm
-
Max.Bottle Height(mm):
-
360 mm
-
Bottle Volume(ml):
-
500 ml
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HANYU
-
Year:
-
new
-
Voltage:
-
380-240-110V/50-60HZ
-
Dimension(L*W*H):
-
1870*630*1450MM
-
Hollow part volume:
-
100-2000ml
-
Clamping Force (kN):
-
80
-
Power (kW):
-
8
-
Weight (KG):
-
650 KG
-
Weight:
-
1000kg
-
After-sales Service Provided:
-
No overseas service provided
-
Power(W):
-
10KW
-
Automatic:
-
No
-
pet bottle blowing machine:
-
bottle
-
Product name:
-
PET Bottle Blowing Machine
-
Suitable bottle:
-
100-2000ml Bottle
-
Key words:
-
Blowing Mold Machine
-
Bottle material:
-
Pet Plastic
-
Type:
-
Stretch Pet Blow Moulding

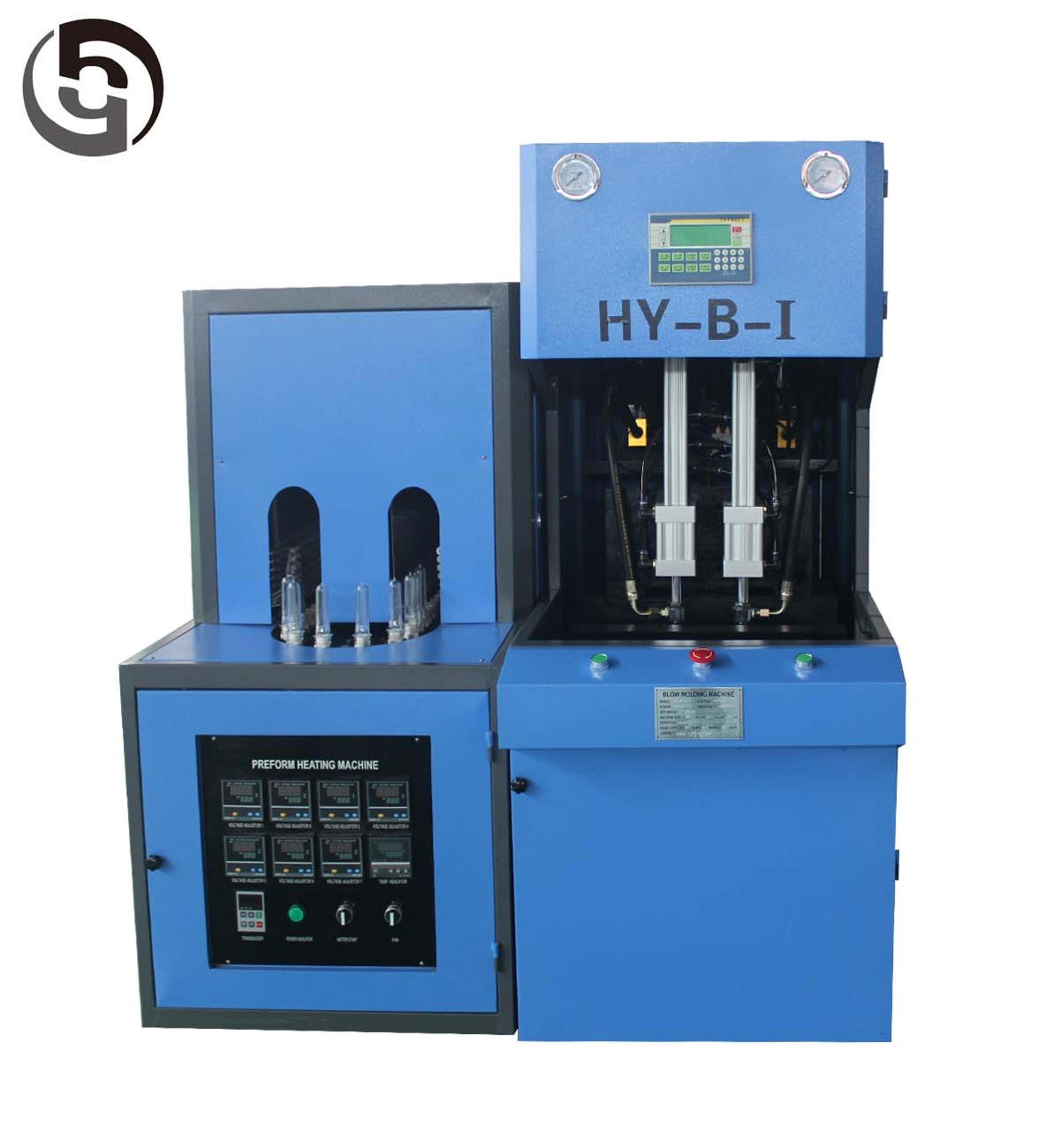

HY-B-I semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
1.Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode.
5.The machine is small with low investment, easy and safe to operate .
Technical parameter
|
Name
|
Item
|
Unit
|
Details
|
|
Blowing machine
|
Dimension
|
mm
|
1600*600*1610mm
|
|
|
Bottle volume (max)
|
ml
|
2000
|
|
|
Bottle volume (min)
|
ml
|
50
|
|
|
Bottle Neck Diameter (max)
|
mm
|
90
|
|
|
Bottle Neck Diameter (min)
|
mm
|
15
|
|
|
Body Diameter (max)
|
mm
|
125
|
|
|
Body Height( max)
|
mm
|
340
|
|
|
Number of Cavities
|
mold
|
2
|
|
|
Production output
|
pcs/h
|
800-1000BPH
|
|
|
Clamping force
|
T
|
5.7(56KN)
|
|
|
Mold thickness
|
mm
|
200(max)
|
|
|
Mold width
|
mm
|
360x390
|
|
|
Space between Tie-bars
|
mm
|
120-220
|
|
|
Diameter of Tie-bars
|
mm
|
63
|
|
|
Scope of Tie-bars
|
mm
|
405
|
|
|
Mold stroke
|
mm
|
170
|
|
|
Stretching stroke (max)
|
mm
|
420
|
|
|
Working pressure
|
Mpa
|
0.8-1.0Mpa
|
|
|
Blowing pressure
|
Mpa
|
2.0-3.0Mpa
|
|
|
Voltage/Power
|
V/KW
|
220V/1KW
|
|
Pre-heater
|
Dimension
|
mm
|
1870*630*1450mm
|
|
|
Weight
|
kg
|
260
|
|
|
Voltage/Power
|
V/KW
|
380V/14KW
|
|
|
Lamp
|
PCS
|
28
|
|
|
Working power
|
Kw
|
8kw
|
HY-B-I semi-automatic bottle blow molding machine Specification: HY-B-I semi-automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
1.Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the semi-auto mode.
5.The machine is small with low investment, easy and safe to operate.
Q4: How long is the delivery time?
Q5: Where is the Shipping departure port?
Q6: What’s the payment
Q7. What products does your company offer by yourself?
Q8: How about the quality of machine?
|
Packaging
|
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Packaging
|
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
