Technical data
1.Driving voltage: 220V,(12V, 24V or 110V)
2.Power consumption: 5VA(Only in on-off process)
3.Valve pressure: 2.0mpa
4.Allowed pressure differential: 1.0mpa
5.Applicable Medium Temperature: 2°C-95°C
6.Applicable Ambient Temperature: 0°C-60°C
2 way 3 way motorized valve features:
1.Type A and B actuator option
2.Size option:1/2'',3/4''.1''
3.Separated driver and valve body, for fast disassembly and installation
4.Special valve body has bigger allowed pressure differential
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Brass
-
Allowed pressure differential:
-
1.0mpa
-
Driving voltage:
-
220VAC(or 12V, 24V, 110V)
-
Power consumption:
-
5VA(only in on-off process)
-
Protection class:
-
IP65
-
Applicable medium:
-
Cold water, hot water
-
Applicable medium temperature:
-
2℃~95℃
-
Open and close time:
-
6.16 seconds for opening, 16 seconds for closing
-
Color:
-
Grey
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
msthermic
-
Model Number:
-
MV
-
Material:
-
Brass
-
Allowed pressure differential:
-
1.0mpa
-
Driving voltage:
-
220VAC(or 12V, 24V, 110V)
-
Power consumption:
-
5VA(only in on-off process)
-
Protection class:
-
IP65
-
Applicable medium:
-
Cold water, hot water
-
Applicable medium temperature:
-
2℃~95℃
-
Open and close time:
-
6.16 seconds for opening, 16 seconds for closing
-
Color:
-
Grey
Product Description

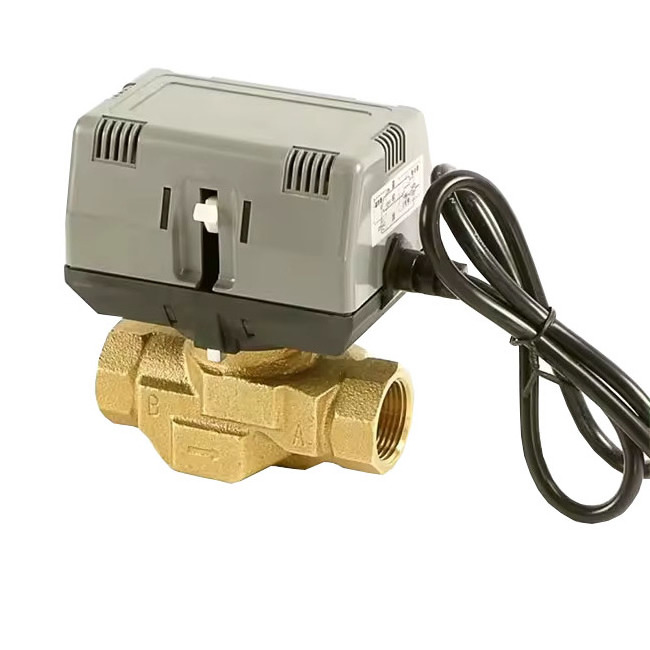

2 way 3 way motorized valve for fan coil unit
|
Name
|
Size
|
Parameter
|
L
|
N
|
KVS
|
|
2 way motorized valve
|
1/2''
|
DN15
|
90
|
114
|
4.5
|
|
|
3/4''
|
DN20
|
95
|
116
|
5.7
|
|
|
1''
|
DN25
|
105
|
128
|
8.7
|
|
3 way motorized valve
|
1/2''
|
DN15
|
90
|
133
|
4.3
|
|
|
3/4''
|
DN20
|
95
|
133
|
5.5
|
|
|
1''
|
DN25
|
105
|
144
|
8.3
|
