Q3512 Standard Rotary Turn Table Shot Blasting Machine for Alloy Wheel Surface Cleaning

Q3512 Standard Rotary Turn Table Shot Blasting Machine for Alloy Wheel Surface Cleaning

FOB Reference Price: Get Latest Price

≥1 Sets

US $3000

≥3 Sets

US $2900

≥5 Sets

US $2500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: Min 14.5kw & customized

Dimension(L*W*H):: Up to models

Spare parts:: Chrome&Mn Alloy Standard Part

Cleaning Process::: Shot blasting/Wheel blasting By motor driving

Surface finish level:: SA2.5 to SA3.0

Dust collector:: Cartridge/Bag type filter pulse reverse

Operate:: Fully Automatic Continuous blasting cleaning

Voltage:: 110V/220V/240V/380V

Rotational speed:: 1.6rpm

Roughness:: 25-130um

Blast chamber:: 10mm shell &10mm Mn Alloy liner

Certification:: ce

Quick Details

Place of Origin:: Shandong, China

Brand Name:: Hezhi

Weight (KG):: 500 KG

Power:: Min 14.5kw & customized

Dimension(L*W*H):: Up to models

Spare parts:: Chrome&Mn Alloy Standard Part

Cleaning Process::: Shot blasting/Wheel blasting By motor driving

Surface finish level:: SA2.5 to SA3.0

Dust collector:: Cartridge/Bag type filter pulse reverse

Operate:: Fully Automatic Continuous blasting cleaning

Voltage:: 110V/220V/240V/380V

Rotational speed:: 1.6rpm

Roughness:: 25-130um

Blast chamber:: 10mm shell &10mm Mn Alloy liner

Certification:: ce

Q3510C Q3512 Q3516 QH3512

Rotary swing table shot blasting machine is blast cleaning equipment for precise casting and forging parts especially in auto industry.

Rotary table disc rotates with work pieces on it . Blasting wheels on top blast steel shots and grits on work pieces. Table disc is resistant casting alloy with holes to let used steel shots and grits down to bottom screw conveyor for recycling. Rotary turn table shot blaster is also called table or swing table shot blasting machine

Standard table size 1200mm, 1400mm, 1600mm, 1800mm,

Customized table size :1000mm , 2000mm,

Also can customized High Configuration type of Double Table model and Octagonal Turntable model.

Application of Rotary Table Type Shot Blasting Machine Rotary table shot blast machine is suitable for: Precise casting parts, Forging part, Auto parts, Connecting rod,Clutch, Gear,Spring

Model	Q3512	Q3516	Q3518
Cleaning speed	3.7 r/min	3.7 r/min	3.7 r/min
Max loading weight	400 kg	500 kg	800 kg
Work piece dimension	φ250×600 mm	φ800×300 mm	φ1200×400 mm
Table disc diameter	φ1200 mm	φ1600 mm	φ1800 mm
Wheels QTY	2	2	2
Blasting capacity	2x120kg/min	2 x100kg/min	2 x100kg/min
Air volume	2800 m3/h	3800 m3/h	5200 m3/h
Power	~21kw	~22 kw	23 kw

Above parameters are standard one. Upgrade and update may happends.

Actual online order need to confirm with Hezhi and comply with PI or sales contract by two sides.

We can design and manufacture all kinds of non-standard shot blasting machines

According to customers' different work piece detail requirement ,weight and productivity .

Other kinds of shot blaster which suitable for clean alloy wheel:

wire mesh type shot blasting machine

spinner hanger type and overhead hanging type shot blasting machine.

Rotary Table / Disc

Table Diameter: 1400-1800mm

Work Pieces Dimension: Min 600*200mm

Table Load Capacity: Min 300kg

Table Power: 14.5 – 23kw

Blasting Chamber

Chamber Shell: 10mm fabrication steel

Chamber Liner: 10mm Mn alloy liner with high resistance.

Doors: 2 pcs of manual doors to close the chamber with lock .

Abrasive Recycling System

Screw conveyor: to deliver collected shots and grits from longitude screw to bucket elevator.

Bucket elevator: to lift used steel shots and grits from bottom to top separator.

Separator: to separate and get qualified shots and grits to abrasive hopper.

Dust Collection System

Filtration Rate: 99.9%, dustless shot blasting machine, healthy environment.

Cyclone Dust Collector: First sate dust collection.

Dust Collector: Cartridge type or bag type are second stage dust collection.

Fan Extractor: To extract dusts from piping to dust collector.

Ventilation Piping: to collect dusts from blasting chambers and separators.

Electric Control System

Model: Automatic ( manual type is available).

Control unit: PLC is optional .

Emergency Stop: on main control panel and rollers conveyors .

Power Iindicator: available on control panel .

Rotary table shot blasting machine in Hezhi Workshop:

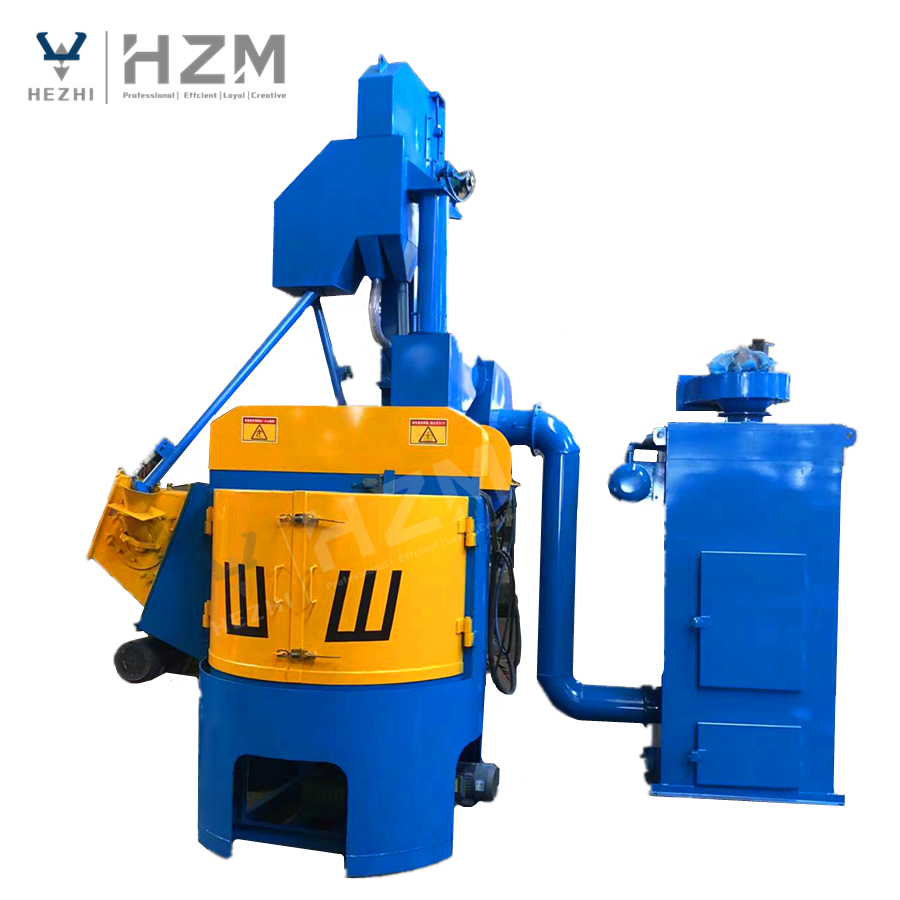

Finished turntable shot blaster equipment

Q35 Series turn table type shot blasting machine technical drawing

Qingdao Hezhi is a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.
We owned 3600m2 work shop area for production with 2x10 cranes.
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.

Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.

Choose Hezhi,Get factory price and reliable shot blasting Machinery!

Q: What is blasting speed of rotary table shot blasting machine ?
A :0.36 r/min.

Q: What is max loading weight of rotary table shot blasting machine ?
A :Steel shots, steel grits or steel cut wire

Q: What kind of abrasives are used for rotary table shot blasting machine ?
A: Steel shots, steel grits or steel cut wire.

Q :Is it necessary to dig pit for installation of rotary table shot blasting machine ?
A :No

Q: Is it possible to install rotary table shot blasting machine by buyer himself ?
A: Yes

Q: How many operators are needed to run rotary drum shot blasting machine ?
A: 1 oper ator.
