Quick Details
-
Brand Name:
-
Shanding
-
Fork Length:
-
1150mm
-
Fork Width:
-
170mm
-
Weight (KG):
-
680 kg
-
Total height (when the fork is lowest):
-
2080/1580/1830/2080/2330mm
-
Total height (when the fork is highest):
-
2080/2560/3060/3560/4060mm
-
Lifting height:
-
1600/2000/2500/3000/3500mm
-
Drive motor power:
-
DC1.5Kw
-
Increase motor power:
-
DC2.2Kw
-
Battery voltage/capacity:
-
2*12V/120Ah
-
Driving speed laden/unladen:
-
4/5Km/h
-
Maximum lifting speed without load:
-
100mm/s
-
Maximum lifting speed with full load:
-
50mm/s
-
Product Name:
-

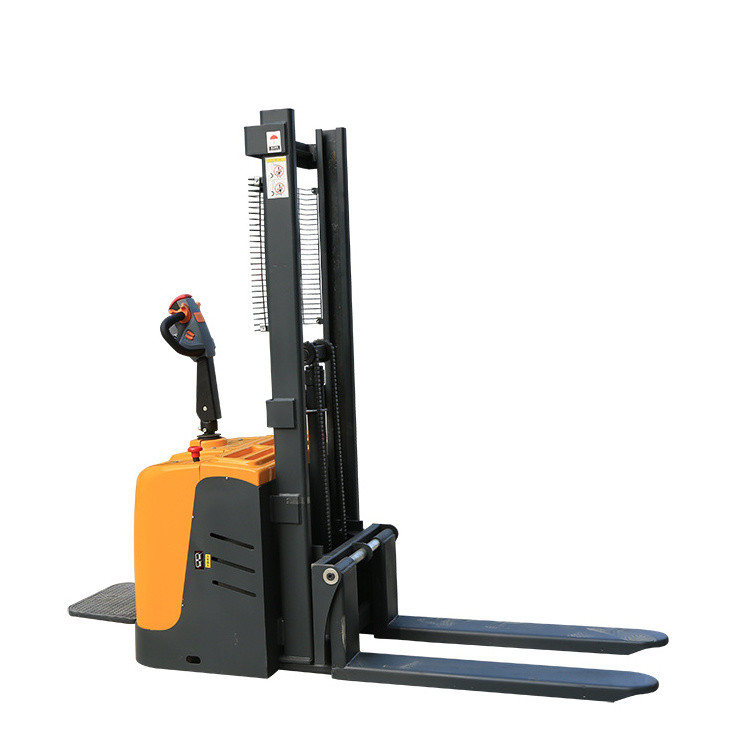

hydraulic pallet stacker
Quick Details
-
Min. Lifting Height:
-
210mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Shanding
-
Fork Length:
-
1150mm
-
Fork Width:
-
170mm
-
Weight (KG):
-
680 kg
-
Total height (when the fork is lowest):
-
2080/1580/1830/2080/2330mm
-
Total height (when the fork is highest):
-
2080/2560/3060/3560/4060mm
-
Lifting height:
-
1600/2000/2500/3000/3500mm
-
Drive motor power:
-
DC1.5Kw
-
Increase motor power:
-
DC2.2Kw
-
Battery voltage/capacity:
-
2*12V/120Ah
-
Driving speed laden/unladen:
-
4/5Km/h
-
Maximum lifting speed without load:
-
100mm/s
-
Maximum lifting speed with full load:
-
50mm/s
-
Product Name:
-
hydraulic pallet stacker
|
PARAMETER CDD20
|
|
|
|
|||
|
Drive form
|
electric
|
Drive motor power
|
DC1.5Kw
|
|||
|
Driving style
|
Stand-on
|
Increase motor power
|
DC2.2Kw
|
|||
|
Rated load
|
2000KG
|
Battery voltage/capacity
|
2*12V/120Ah
|
|||
|
Wheelbase
|
1383mm
|
Tires
|
Polyurethane wheel
|
|||
|
Weight (including battery)
|
680KG
|
Drive wheel size(diameter*width)
|
210*70
|
|||
|
Driving speed laden/unladen
|
4/5Km/h
|
Front wheel size(diameter*width)
|
80*70
|
|||
|
Maximum lifting speed without load
|
100mm/s
|
Balance wheel size(diameter*width)
|
125*80
|
|||
|
Maximum lifting speed with full load
|
50mm/s
|
Number of wheels (front/rear)
|
1x+2/4
|
|||
|
Maximum gradeability full load/unloaded
|
3/5%
|
Front track
|
500mm
|
|||
|
Braking method
|
Electromagnetic brake
|
Rear track
|
616mm
|
|||
|
Total height (when the fork is lowest)
|
|
2080/1580/1830/2080/2330mm
|
|
|||
|
Total height (when the fork is highest)
|
|
2080/2560/3060/3560/4060mm
|
|
|||
|
Lifting height
|
|
1600/2000/2500/3000/3500mm
|
|
|||
|
Height of forks from the ground (at the lowest time)
|
|
≤90mm
|
|
|||
|
The height of the operating handle from the ground (maximum/minimum)
|
|
1520/1050mm
|
|
|||
|
Length of the whole vehicle (Pedals stowed/lowered)
|
|
2023/2419mm
|
|
|||
|
Vehicle width
|
|
852mm
|
|
|||
|
Fork size
|
|
170/55/l150mm
|
|
|||
|
Outer width of fork
|
|
680mm
|
|
|||
|
Minimum ground clearance
|
|
30mm
|
|
|||
|
Right-angle stacking aisle width,pallet 1000*1200 (1200 along the fork side)
|
|
2879mm
|
|
|||
|
Turning radius (pedal retracted)
|
|
1619mm
|
|
|||
