Quick Details
-
Application:
-
CATV
-
Input:
-
Analog stereo audio,AES / EBU digital audio,SD-SDI embedded audio
-
Input interface:
-
AES/EBU/SDI
-
Output:
-
IP+2ASI+E1
-
IP Output:
-
UDP protocol (unicast/multicast)
-
Audio encoding:
-
MPEG1 Layer 2
-
Product name:
-
SDI input ASI IP E1 Audio Encoder
-
System function:
-
LCD/keyboard, network management(NMS)
-
Supports:
-
balanced and unbalanced analog audio inputs
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Catcast
-
Model Number:
-
HPS3201A
-
Application:
-
CATV
-
Input:
-
Analog stereo audio,AES / EBU digital audio,SD-SDI embedded audio
-
Input interface:
-
AES/EBU/SDI
-
Output:
-
IP+2ASI+E1
-
IP Output:
-
UDP protocol (unicast/multicast)
-
Audio encoding:
-
MPEG1 Layer 2
-
Product name:
-
SDI input ASI IP E1 Audio Encoder
-
System function:
-
LCD/keyboard, network management(NMS)
-
Supports:
-
balanced and unbalanced analog audio inputs
Broadcasting Encoding Device Network Video Digital SD-SDI Audio Encoder
Product Description
Summary

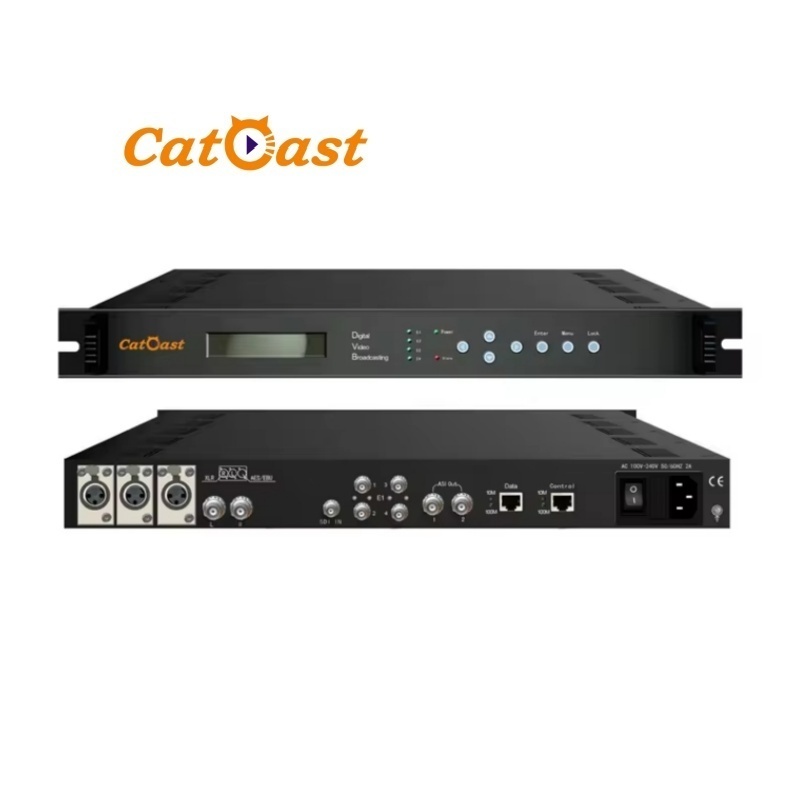

HPS3201A is a professional audio encoding device with powerful function. It supports a variety of analog and digital audio input ports, including balanced analog input interface (XLR) and unbalanced analog input interface (BNC), the digital audio input interface (AES/EBU) and embedded digital audio input interfaces (SDI). Its high compatibility and excellent encoding quality makes this device widely used in digital broadcasting system.
Key Features
* MPEG1 Layer 2 Audio encoding
* Supports balanced and unbalanced analog audio inputs
* Supports AES/EBU and SD-SDI digital audio inputs
* Support 2*ASI mirrored output, BNC interface
* IP output over UDP protocol (unicast/multicast)
* LCD / keyboard, network management(NMS)
Principle
Chart
Specification
|
Input |
Analog stereo audio(balanced), XLR interface
|
|
|
||
|
|
Analog stereo audio(unbalanced), BNC interface
|
|
|
||
|
|
AES / EBU digital audio, XLR interface
|
|
|
||
|
|
SD-SDI embedded audio
|
|
|
||
|
Encoding |
Encoding
|
MPEG1 Layer 2
|
|
||
|
|
Sample rate
|
48KHz
|
|
||
|
|
Bit-rate
|
64Kbps~256Kbps
|
|
||
|
Output |
2*ASI mirrored output, BNC interface
|
|
|
||
|
|
E1 output
|
|
|
||
|
|
IP output over UDP protocol, 100M Base-T Ethernet interface
(unicast / multicast) |
|
|
||
|
System function |
LCD/keyboard, network management(NMS)
Chinese and English language |
|
|
||
|
|
Ethernet software upgrade
|
|
|
||
|
General |
Dimensions (W×D×H)
|
|
482mm×405mm×44.5mm
|
||
|
|
Temperature range
|
|
0~45℃(operation), -20~80℃(storage)
|
||
|
|
Power Requirements
|
|
AC 100~240V, 50/60Hz
|
||
Related Products
Packing&Shipping
Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
