Quick Details
-
Plate:
-
180Lx38Wx11H(mm)
-
Finishes for Shell:
-
Anodized aluminum surface texture processing
-
Finishes for Magnetic:
-
Zinc
-
EL-600:
-
Without indicator lights
-
Holding Force:
-
280kg (600Lbs)
-
Voltage:
-
DC12V or DC24V (adjustable)
-
Current Draw:
-
12V/500mA 24V/250mA
-
Operating Temp:
-
-10℃ ~ 55℃ (14°F~131°F)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Item Name:
-
600Lbs magnetic door lock
-
Lock size:
-
250Lx48.5Wx25H(mm)
-
Plate:
-
180Lx38Wx11H(mm)
-
Finishes for Shell:
-
Anodized aluminum surface texture processing
-
Finishes for Magnetic:
-
Zinc
-
EL-600:
-
Without indicator lights
-
Holding Force:
-
280kg (600Lbs)
-
Voltage:
-
DC12V or DC24V (adjustable)
-
Current Draw:
-
12V/500mA 24V/250mA
-
Operating Temp:
-
-10℃ ~ 55℃ (14°F~131°F)
Single door 600lbs access control magnetic door lock
EL-600
This is Vivian from S4a Industrial Co.,Limited.
We are professional supplier for high quality access controller at competitive price.
Here are our main categoties below:_
- Access Control Panel
- Standalone Access Controller(keypad/smart card/fingerprint)
- Facial & Fingerprint Time Attendance and Access Control
- Electric Magnetic lock / Bolt lock / Strike lock/Cabinet lock
- RFID Card Reader
- Exit Push Button and other accessories etc.

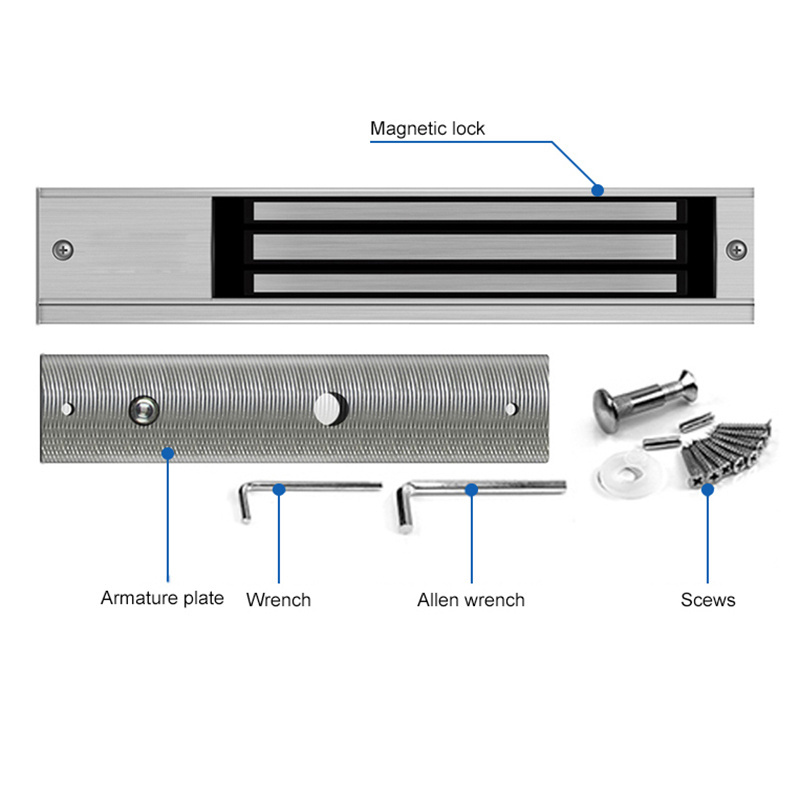

Now show you the magnetic door lock as follow~
Single door 280KG Magnetic lock Without indicator lights
1. Voltage: DC12V or DC24V
2. Holding Force: 280KG (600Lbs)
3. Lock Size: 250Lx48.5Wx25H(mm)
4. Current Draw: 12V/500mA 24V/250mA
|
Item |
Parameter |
|
EL-600 |
Without indicator lights |
|
EL-600SD |
LED, door sensor |
|
EL-600ST |
LED, door sensor, Time delay |
|
EL-600SZ |
LED, door sensor, Buzzer |
|
Lock size |
250Lx48.5Wx25H(mm) |
|
Plate |
180Lx38Wx11H(mm) |
|
Finishes for Shell |
Anodized aluminum surface texture processing |
|
Finishes for Magnetic |
Zinc |
|
Finishes for Armature |
Zinc |
|
Holding Force |
280kg (600Lbs) |
|
Voltage |
DC12V or DC24V (adjustable) |
|
Current Draw |
12V/500mA 24V/250mA |
|
Signal Output |
Dry Contact, Max Rating of Contact Current 3A |
|
Surface Temp |
≤+20°C |
|
Operating Temp |
below 55 to above 55 (14-131F) |
|
Suitable Humidity |
0~90%(non-condensing) |
|
Weight |
2kg |
|
Standard Packing |
10pcs |
