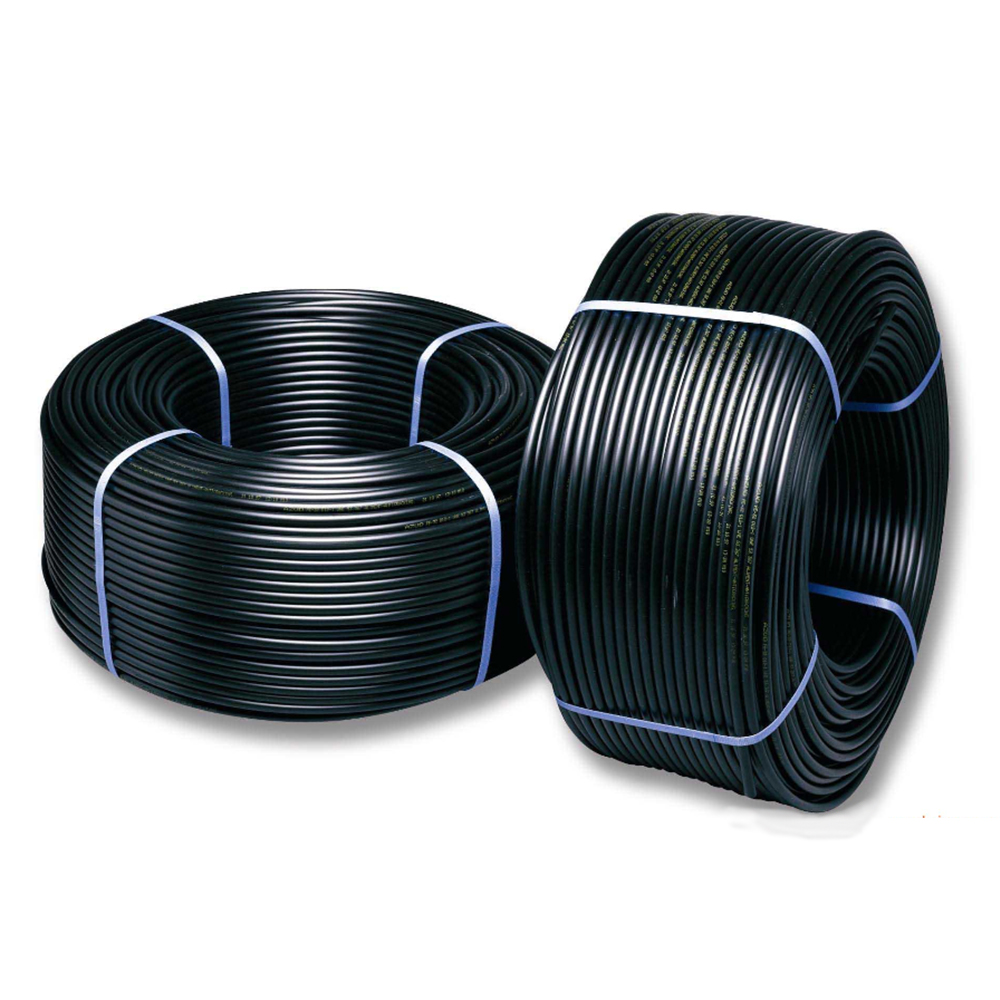

Roll hdpe poly pipes 3 inch,polyethylene tubing

Introduction:

HDPE pipe (High-density polyethylene pipe) is made from high density polyethylene as the main raw material, adding a small amount of antioxidants, Anti-UV absorbers and pigments.

Features:

1.Material: high quality PE 100

2.Diameter Nominal : 16mm to 1400mm

3 Pressure:0.6-1.6Mpa

4.Connection: socket fusion, butt fusion joint, electro fusion joint, flanged joint

5.Applications: Water supply, industrial liquids transportation and sewage treatment

Properties :

1.Specific Gravity, g/cm 3 , 20(C): 0.941-0.965

2.Longitudinal Reversion, % (110(C)): <=3

3.Oxidation Induciton Time, min (200(C)): >=20

4.Extension Rate at Break. %: >=350

5.Hydraulic Pressure Test:

1)20(C), Hoop Stress is 12.4 Mpa, 100h: No Failure.

2)80(C), Hoop Stress is 5.5Mpa, 165h: No Failure.

3)80(C), Hoop Stress is 5.0Mpa, 1000h: No Failure.

Specification:

Advantages:

1.Non-toxic: No heavy metal additives would not be covered with dirt or contaminated by bacterium.

2.Corrosion Resistant: Resist chemical matters or electron chemical corrosion

3.Lower installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.

4.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipe

5.Longevity: More than 50 years under proper use

6.Recycled and Environment-friendly

Applications:

1.Municipal water supply

2.Commercial & Residential water supply

3.Industrial liquids transportation

4.Sewage treatment.

Inspection:

All kinds of products are regularly conducted pressure-tight blastingtest,longitudinal shrinkage rate test, quick stress crack resistance test, tensile test and melt index test, so as to ensure the quality of products totally reach the relevant standards from raw materials to finished products.
