Products
Good Pet Treats Dog Chews Bone food making Extruder Machine
Good Pet Treats Dog Chews Bone food making Extruder Machine
Good Pet Treats Dog Chews Bone food making Extruder Machine
Good Pet Treats Dog Chews Bone food making Extruder Machine
Good Pet Treats Dog Chews Bone food making Extruder Machine
Good Pet Treats Dog Chews Bone food making Extruder Machine
Good Pet Treats Dog Chews Bone food making Extruder Machine
Good Pet Treats Dog Chews Bone food making Extruder Machine

Good Pet Treats Dog Chews Bone food making Extruder Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $18000
≥2 Sets
US $12000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
Customer's Requirement
Power:
80kw
Weight:
3000 KG, 3-8 tons
Dimension(L*W*H):
25000*1500*2200
After-sales Service Provided:
Engineers available to service machinery overseas
Whatsapp:
+86 18396800226
Certification:
CE ISO BV
fuel:
electric,gas,diesel,LPG,steam
After-sales Service:
Engineers available to service machinery overseas
Capacity:
100-1500kg/h
Raw materials:
meat meal, fish meal,corn powder, soya meal and other grains powder

Quick Details

Marketing Type:
Hot Product 2022
Place of Origin:
Shandong, China
Brand Name:
Bright, Bright
Voltage:
Customer's Requirement
Power:
80kw
Weight:
3000 KG, 3-8 tons
Dimension(L*W*H):
25000*1500*2200
After-sales Service Provided:
Engineers available to service machinery overseas
Whatsapp:
+86 18396800226
Certification:
CE ISO BV
fuel:
electric,gas,diesel,LPG,steam
After-sales Service:
Engineers available to service machinery overseas
Capacity:
100-1500kg/h
Raw materials:
meat meal, fish meal,corn powder, soya meal and other grains powder
Product Description

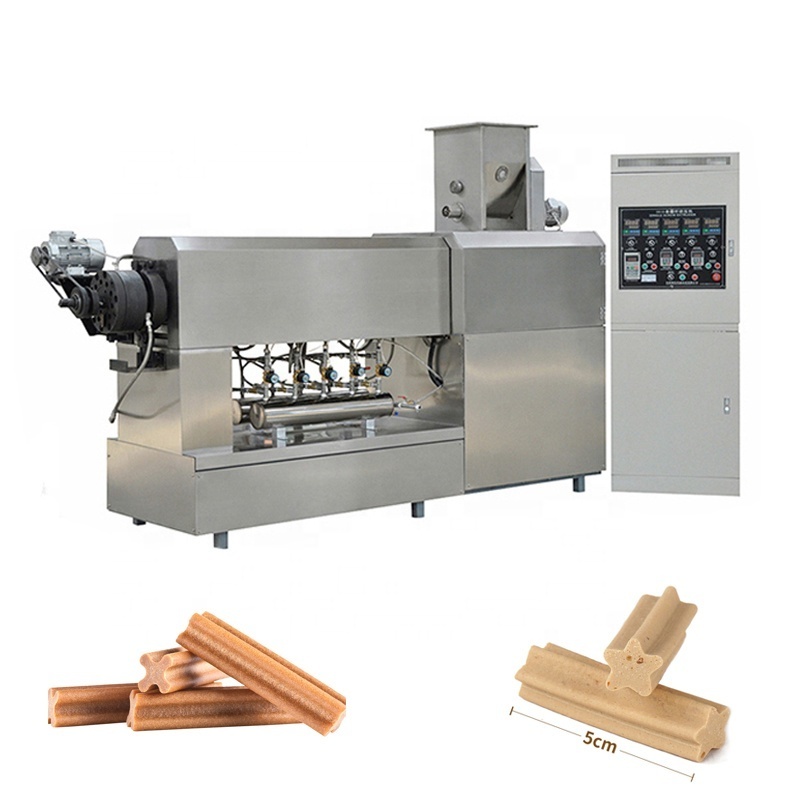

Good Pet Treats Dog Chews Bone food making Extruder Machine introduction:
Pet treats processing line takes starch as raw materials with scientific configuration and was extruded from coextruder machine ,it can be made into many kind of shapes such as stick, bone ect.This kind of dog food not only provide protein fat vitamin nutrition for dogs, but also satisfy the dog nature hobby.It has following features: strengthen teeth, clean mouth and teeth, the products can be in many shapes, like twist, bi-color, core-filling and so on.

Flow chart :

1)Single color Dog chews machine
Mixer → Screw conveyer→Single-screw extruder → Cooling conveyor → Cutter machine

(2)Double color dog chews machine
Mixer *2→ Screw conveyer*2→Single-screw extruder*2 → Cooling conveyor → Cutter machine → elevator → Dryer

Flow chart diagram:

Our engineer could design the layout drawing according to your dimension of the factory for the dog chews  machines

Machine parameters

Model
Installed Power
(kw)
Power Consumption
(kw)
Capacity (kg/h)
Dimension (m)
100 processing line
47.25
40
120-180
17*1.2*2.2
120 processing line
94
85
200-300
20*1.5*2.2

Main Features
1).Our processing line adopt international advanced technology.
2).we can adjust the cutter speed and the dies to get the different diameter and the length product
3).The Electric heating device system can control the temperature accurately
4).High temperature and high pressure can kill the salmonellosis andbacterial infections.
5).The processing line can produce both floating and sinking fish feed.


Raw material:

Materials: Corn powder, wheat flour,fish powder, bone powder,meat,glycerin,starch etc and water.

Sample of pet chew food:

Equipment list in the pet chew production line:

mixer→screw conveyor→single screw extruder →cooling machine →cutting machine air

conveyor→dryer→packing machine

1)mixer of Good Pet Treats Dog Chews Bone food making Extruder Machine

Name
Mixer
Usage
To mix the raw materials evenly, fast speed, no leakage.

Type
including Single axle and double shaft mixer
Motor
3kw, 4kw, 7.5kw etc.
Capacity
20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc.
Material
stainless steel, carbon steel

2)extruder of Good Pet Treats Dog Chews Bone food making Extruder Machine

Name
Single screw extruder
Usage
To extrude the raw materials and make them to the required shape and size of the dog food pellets by mould
model
DSE100,120,135
Motor
30kw, 55kw, 75kw, 90kw, 110kw etc.
Capacity
100kg/h to 10 ton/h
Material
Screw materials 38CrMoAl
stainless steel, carbon steel

3)cutting machine of Good Pet Treats Dog Chews Bone food making Extruder Machine

Name
Cutting
Usage
Use a knife on the machine to pet chew  into pieces, adjustable speed
model
QDJ50
Motor
0.75kw
Capacity
100kg/h to 10 ton/h
Material
stainless steel

4)oven of Good Pet Treats Dog Chews Bone food making Extruder Machine

Name
Dryer (oven)
Usage
the expanded food go through the "s" passage, to be dried to increase the self life.
Type
electrical, steam, gas fired, diesel fired heating type
Motor
KX-3-5, KX-5-5, KX-5-8, KX-5-10, KX-7-10 etc.
Capacity
100kg/h to 10 ton/h
Material
stainless steel, carbon steel

5)packaging of Good Pet Treats Dog Chews Bone food making Extruder Machine

Name
Packaging machine
Usage
To pack the dog feed with required weight
Flowing Process
Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing
Weight range
1-5kg/bag, 5-25kg/bag, 25-50kg/bag
Material
stainless steel, carbon steel
Type
Automatic
Why choose us
Our Service

1.) Consultation service before, during,and after sales;
2.) Project planning and design service;
3.) Debugging of equipment until everything is functional;
4.) Management of equipments' long distance shipping from seller's factory to the named place by buyer;
5.) Training of equipment maintenance and operating personally;
6.) New production techniques and formulas;
7.) Provide 1 year complete warranty and life-time maintenance service.

Company&Customer
FAQ

Q: Are you a trade company or a manufacturer?
A :we are a manufacturer, welcome to visit and check the machine to my factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
Q: How about the after-service?
A: We will send 1 engineer to the buyer's factory for a 10-day period installation and training to the operators.
Q:do you supply any formula to buyer?
A:yes, we supply formula to buyer.

Packing &Delivery

1.Use anti-rust oil to wipe the equipment for Pet Treats Dog Chews Bone food making Extruder Machine

2.air cushion film packaging equipment for dog treat snack machine

3.with a wooden box for the final step of packaging.
