2. Filtering and purifying fluid to remove impurities
3.A wide range of filter material chemical compatibility
4. Reusable and easy to clean
5.Total new material, increase extra 20% working life
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-

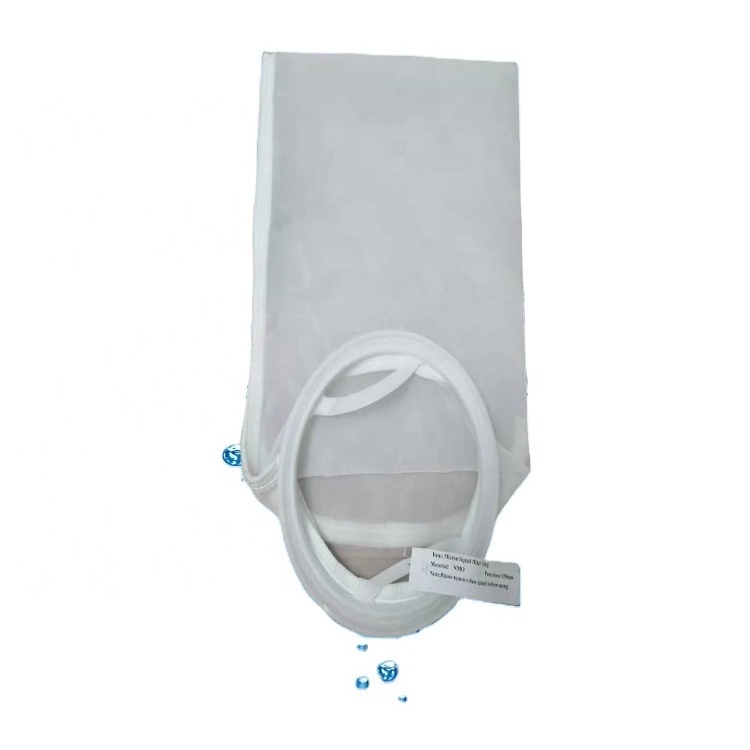

PP PE Nylon Liquid Filter Bag
-
Application:
-
Liquid filtration
-
Size:
-
180*450/180*810/105*230/150*380mm/customized Size
-
Micron:
-
0.2-300um
-
Shape:
-
Cylinder Shape
-
Bag top type:
-
Welded
-
Free samples:
-
2pcs Accepted
-
Temperature:
-
135-150
-
Sewing:
-
Five Stitching
-
Ring Style:
-
Stainess Steel Ring
Quick Details
-
Weight (KG):
-
15
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JUNYI
-
Product name:
-
PP PE Nylon Liquid Filter Bag
-
Application:
-
Liquid filtration
-
Size:
-
180*450/180*810/105*230/150*380mm/customized Size
-
Micron:
-
0.2-300um
-
Shape:
-
Cylinder Shape
-
Bag top type:
-
Welded
-
Free samples:
-
2pcs Accepted
-
Temperature:
-
135-150
-
Sewing:
-
Five Stitching
-
Ring Style:
-
Stainess Steel Ring
Product Description
particles with miron ratings between 1um and 200um. The uniform thickness, stable open porosity and sufficient strength ensure the more stable filtration effect and longer service time. The three-dimensional filter layer makes the particles stay on the surface and deep layer when the liquid flows through the filter bag, having a strong dirt holding capacity.
Galvanized Ring
Plastic Ring
Stainless Steel Ring
Product Presentation
|
Model
|
Diameter
|
Length
|
Max. Water Flow (M3/H)
|
Filtration Area (M2)
|
Volume (L)
|
|||||
|
#1
|
7" (180mm)
|
17"(450mm)
|
18
|
0.25
|
8
|
|||||
|
#2
|
7" (180mm)
|
32"(810mm)
|
40
|
0.5
|
17
|
|||||
|
#3
|
4" (105mm)
|
9"(230mm)
|
6
|
0.09
|
1.3
|
|||||
|
#4
|
4" (105mm)
|
17"(380mm)
|
12
|
0.16
|
2.5
|
|||||
|
#9
|
11" (280mm)
|
39"(1000mm)
|
70
|
0.9
|
38
|
|||||
|
Material: PE/ PP/NMO/ SS/PTFE
|
|
|
|
|
|
|||||
|
Miron rating: 0.5um/ 1um/ 5um/10um/25um/50um/100um/200um
|
|
|
|
|
|
|||||
|
Collar ring: Plastic ring/ Stainless steel ring/ Galvanized ring
|
|
|
|
|
|
|||||
|
Note: The above flow is based on the water at the normal temperature and normal pressure and it will be affected by the types of the liquid, pressure, temperature and turbidity.
|
|
|
|
|
|
|||||
1. Can resist acid and alkali, organic solvent and good tensile strength
2. Filtering and purifying fluid to remove impurities
3.A wide range of filter material chemical compatibility
4. Reusable and easy to clean
5.Total new material, increase extra 20% working life
2. Filtering and purifying fluid to remove impurities
3.A wide range of filter material chemical compatibility
4. Reusable and easy to clean
5.Total new material, increase extra 20% working life
The change between mesh and micron for your reference
2. The mesh means the quantity of holes. That is the quantity of holes in per square inch. 1 inch=2.54cm=25.4mm=25,400um .
Comparison Table Between Mesh Size and Micron
|
Mesh
|
30
|
35
|
40
|
45
|
50
|
60
|
70
|
80
|
100
|
|||||||||
|
um
|
595
|
500
|
420
|
345
|
297
|
250
|
210
|
177
|
149
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Mesh
|
120
|
140
|
170
|
200
|
230
|
270
|
325
|
400
|
425
|
|||||||||
|
um
|
125
|
105
|
88
|
75
|
63
|
53
|
44
|
37
|
33
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Mesh
|
500
|
625
|
800
|
1250
|
2500
|
6250
|
12500
|
|
|
|||||||||
|
um
|
25
|
20
|
15
|
10
|
5
|
2
|
1
|
|
|
|||||||||
Related Products
Company Introduction
Shanghai Junyi Filter Plant Co., Ltd
is a high-tech large and medium-sized enterprise in the filtration equipment. We have the independent research and development department, production department and sales department. Adhering to the modern management
mode, we always make the precision manufacturing, explore new opportunity, make the innovation.and has become a leading enterprise in the domestic filter press manufacturing industry.
mode, we always make the precision manufacturing, explore new opportunity, make the innovation.and has become a leading enterprise in the domestic filter press manufacturing industry.
We produce more than 200 different models of the filter. The main products are the Press Filter / Stainless Steel Filter Housing / Filter Plate / Filter Cloth/ Filter Cartridge /Filter Bag. These equipments are widely used for the solid-liquid separation
process in the industrial of mineral processing, petroleum, chemical industry, dyestuff, metallurgy, medicine, food, coal and carbon, inorganic salts, alcohol, light industry, textiles, environmental protection, energy and so on.
process in the industrial of mineral processing, petroleum, chemical industry, dyestuff, metallurgy, medicine, food, coal and carbon, inorganic salts, alcohol, light industry, textiles, environmental protection, energy and so on.
Certifications
Packing&Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are the factory and can customize the self cleaning filter according to your detailed requirements.
Q: What is your MOQ?
A: One piece sample is acceptable. More quantities, more favorable price.
Q: Are customized products accepted ?
A: Yes, we support any of your innovative idea and will also provide you the filtering scheme for your reference.
Q: Do you provide samples ?
A: We can produce a small sample for your test with charge at our production cost.
Q: Do you accpet OEM ?
A: Yes, we can produce the filters according to your requirement.
Q: Any discount possible if I place an order ?
A: Yes, we have different price discounts based on different purchasing quantities..
Q: How long is your delivery time?
A: It depends on which kind of the products it is and the ordered quantity. But we promise that we will try out best to finish all of your orders within the shortest time.
Q: Term of Payment
A: We accpet T/T, L/C, Western Union, Paypal or Cash.
A: We are the factory and can customize the self cleaning filter according to your detailed requirements.
Q: What is your MOQ?
A: One piece sample is acceptable. More quantities, more favorable price.
Q: Are customized products accepted ?
A: Yes, we support any of your innovative idea and will also provide you the filtering scheme for your reference.
Q: Do you provide samples ?
A: We can produce a small sample for your test with charge at our production cost.
Q: Do you accpet OEM ?
A: Yes, we can produce the filters according to your requirement.
Q: Any discount possible if I place an order ?
A: Yes, we have different price discounts based on different purchasing quantities..
Q: How long is your delivery time?
A: It depends on which kind of the products it is and the ordered quantity. But we promise that we will try out best to finish all of your orders within the shortest time.
Q: Term of Payment
A: We accpet T/T, L/C, Western Union, Paypal or Cash.
Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
Q: Test before leaving from our factory
A: Every kinds of our filter will be made the pressure test to assure it is qualified before leaving from our factory.
Q: Quality warranty
A: Our warranty is 1 year. But normally, our machine can work more than 5 years before repair.
Q: Test before leaving from our factory
A: Every kinds of our filter will be made the pressure test to assure it is qualified before leaving from our factory.
Q: Quality warranty
A: Our warranty is 1 year. But normally, our machine can work more than 5 years before repair.
