2. The material is fed from the top of the two rollers, and is brought into the roller continuously by the extrusion roller. After the high-pressure action of 50-200MPa, the material is discharged from the machine with the ideal particle size.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
XGN
-
Dimension(L*W*H):
-
Depend On Models
-
Weight:
-
20000 KG
-
Product name:
-
roller sand making machine
-
Material:
-
steel material
-
Roller diametr:
-
1800mm
-
Model Number:
-
YDG-1810
-
After-sales Service Provided:
-
24h On Line Support
-
Keyword:
-
Product Line Quarry Limestone Rock Stone Roller Crusher
-
Motor power:
-
2*220kw
-
Roll surface width:
-
1000mm
-
Feeding size:
-
≤40mm
Quick Details
-
Application:
-
mines, building materials,mineral processing, etc., mines, building materials,mineral processing, etc.
-
Capacity(t/h):
-
160-230t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XGN
-
Dimension(L*W*H):
-
Depend On Models
-
Weight:
-
20000 KG
-
Product name:
-
roller sand making machine
-
Material:
-
steel material
-
Roller diametr:
-
1800mm
-
Model Number:
-
YDG-1810
-
After-sales Service Provided:
-
24h On Line Support
-
Keyword:
-
Product Line Quarry Limestone Rock Stone Roller Crusher
-
Motor power:
-
2*220kw
-
Roll surface width:
-
1000mm
-
Feeding size:
-
≤40mm
Machine Working Principle
There are two kinds of roller crushers, one is roller crusher, the other is teeth roller crusher.
Roller crusher used for fine crushing while teeth roller crusher for coarse crushing
3. When the material is bitten by the roll surface, the force of the roller gradually increases, and
the maximum pressure can reach 200Mpa.
In addition to a certain proportion of powder materials, the discharged material produces a large number of cracks in the interior of the other granular materials, which can
greatly reduce the grinding energy consumption in the further grinding process.
Product Parameters
|
Model
|
Roller Diameter
(mm)
|
Roll Surface Width
(mm)
|
Feed Size
(mm)
|
Motor Power
(kw)
|
Capacity
(t/h)
|
|
YDG-1080
|
Φ1000
|
800
|
≤30
|
2×37
|
50-80
|
|
YDG-1210
|
Φ1200
|
1000
|
≤30
|
2×75
|
100-120
|
|
YDG-1212
|
Φ1200
|
1200
|
≤30
|
2×90
|
120-150
|
|
YDG-1510
|
Φ1500
|
1000
|
≤30
|
2×132
|
140-170
|
|
YDG-1810
|
Φ1800
|
1000
|
≤40
|
2×220
|
160-230
|
|
YDG-2012
|
Φ2000
|
1200
|
≤40
|
2×315
|
250-300
|

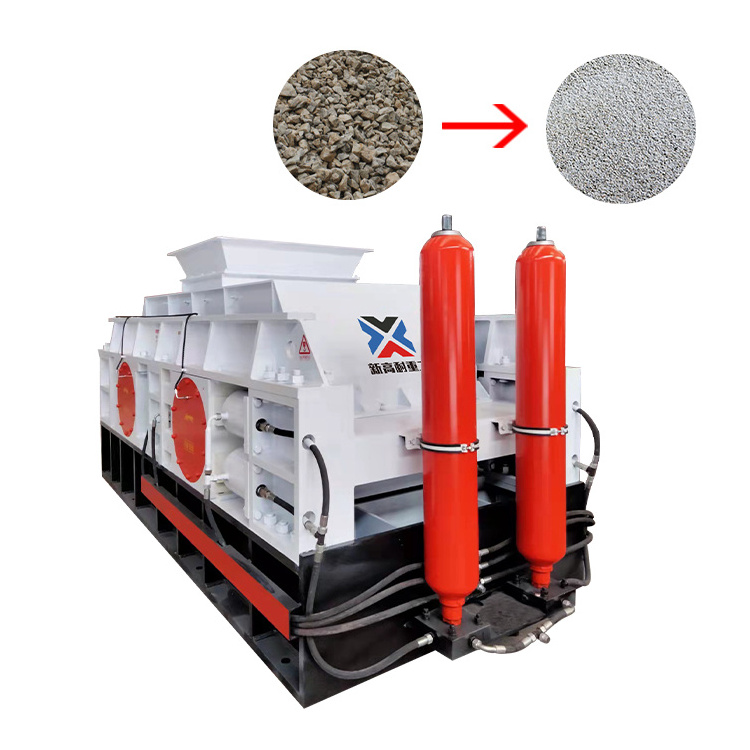

Products Description
product description
Our group has developed and designed a double-roll sand making machine with independent intellectual property rights for many years，it has various specifications and is suitable for medium and fine crushing of ores and rocks with medium hardness and below. It has outstanding performance in the field of sand making and can meet the needs of sand making in many fields such as smelting and mining.
Applicable materials:
spodumene, lepidolite, gold ore, copper ore, etc.
Scope of application:
sand and gravel quarries, building materials, metal and non-metal mines and other industries.
Why Choose this machine
1. Adjustable discharge fineness
The discharge fineness can be adjusted by adjusting the wedge block or gasket between the two rollers,so as to achieve uniform and round particle size of the finished product and reasonable gradation.
2. Energy saving and environmental protection
Equipped with a low energy consumption and environment-friendly motor, the airflow self-circulation system inside the turbine cavity, less dust overflow, low noise, energy saving and environmental protection.
3. Low production cost
The whole machine is made of high-quality wear-resistant materials, and the parts wear less, especially the grinding roller, which can be used repeatedly, effectively reducing the production cost.
4. Large production capacity
Large volume, large material throughput per unit time, high production efficiency.
Why Choose Us
Stone Crushing & Grinding First Brand
We have
3
manufacturing base
Zhengzhou City, Henan Province
Wuzhi City, Henan Province
Xiuwu City, Henan Province
We have
2
brand
Zhengzhou Xingaonai Heavy Industry Machinery Co., Ltd.
(For middle hard stone solutions)
Jiaozuo Pathfinder Heavy Industry
Machinery Co.,Ltd,
(For hard stone solutions)
We have 33 service station worldwide
Give clear solutions within 12 hours
Rush to the site within 24 hours
Xingaonai Group is specialized in R&D and manufacturing of stone crushing, sand making, powder grinding, screening, feeding, conveying, dust collecting and other equipment, we give One-stop Green-Smart-Efficient mining solutions.
Innovation can't just be said in words, it must be turned into a project, and the innovation must be implemented. Today, the company has continuously developed crushing equipment, sand making equipment, mineral processing equipment, supporting equipment, etc. with keen market insight and forward-looking Multi-series, more than 100 models of highly influential products have created more value for enterprises and society.
Our group continuously researches and develops new equipment, adjusts product structure, improves product system, intensively cultivates the core fields of "building crushing, mine crushing, industrial sand making, green building materials, and metal beneficiation", builds three modern equipment production bases, and establishes large-scale equipment The production line continuously improves the production capacity and market influence of the enterprise. In addition to the XGN-Q series hammer crusher, the types of medium and large intelligent crushing equipment are also becoming more and more perfect.
Exhibition
Packaging & Logistics
Packing
1.The equipment and wearing parts are packed in plastic film and wooden box.
2.FCL:Shipped in standard export container.3.Various packaging methods can be provided according to customer requirements, such as: fumigation-free wooden boxes, steel boxes, etc.
Sea freight
We ship the goods to China's main seaports, such as Qingdao, Tianjin, Shanghai, etc., and then ship the equipment to your country by sea.
FAQ
A) What is the core competitiveness of the company?
We regard product development as a key task, and develop new products with strong technology, intensive knowledge and good market prospects by tracking demand hot spots and aiming at technological progress in the industry.
B) Product line coverage?
The main business is the equipment required for the production line with an output of 100-6000 tons per hour.
C) What is the main business direction of the product?
Our comprehensive solutions for a range of processes in rock crushing and metal ore.
D) Does the company undertake to build a complete production line?
According to customer needs, we tailor-made recommendations or customization, fast and accurate understanding, special car transportation and distribution, customer inspection and after-sales service, escorting you.
E) Does the company have relevant crusher parts services?
We can provide all kinds of accessories for crushing and screening equipment, with advanced technology, reliable performance and durability, to ensure that customers' needs can be met in a timely and effective manner.
