Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
huaxing
-
Model Number:
-
n male connector for 7/8 coaxial cable
Quick Details
-
Type:
-
n male connector for 7/8 coaxial cable
-
Application:
-
RF
-
Gender:
-
Male
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
huaxing
-
Model Number:
-
n male connector for 7/8 coaxial cable

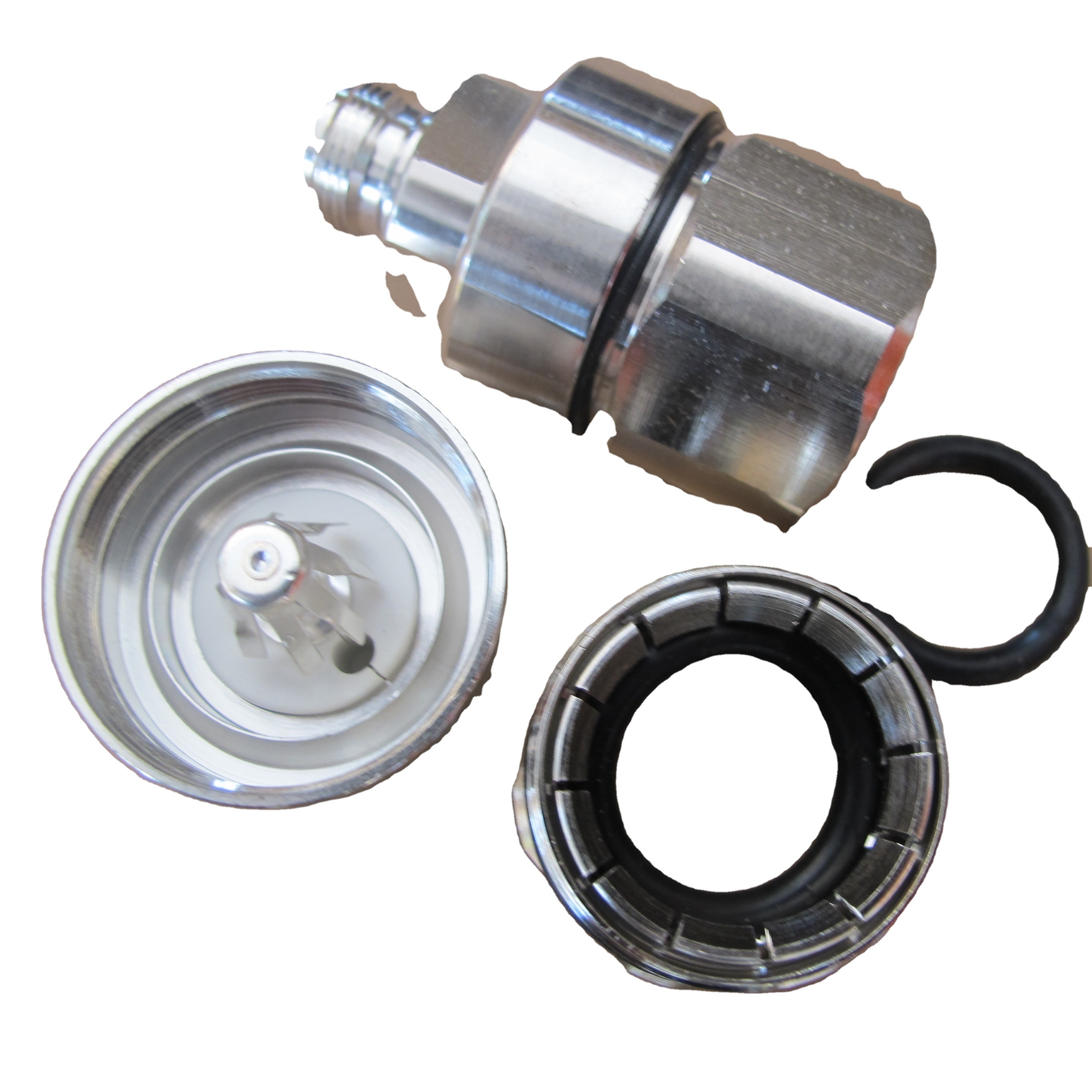

N male connector for 7/8 coaxial feeder cable
Interface
IEC 60169-16;MIL-C-39012;CECC-22210
Electrical
Characteristic Impedance
50ohm
Frequency Range
DC-11GHz
VSWR
≤1.15@DC-3000MHz
Insertion Losss
≤0.24dB(6GHz)
3rd Order IM (PIM3)
—
Working Vlotage
1000V RMS,50Hz,at sea level
Dielectric Withstanding Voltage
≥2500V RMS,50Hz,at sea level
Dielectric Resistance
≥5000MΩ
Contact Resistance
Center Contact ≤1mΩ
Outer Contact ≤0.25 mΩ
Mating
—
Mechanical
Durability
Mating cycles ≥500
Material and Plating
Parts Name
Material
Plating
Body
Brass
Tri-Metal(CuZnSn)or Ni
Insulator
PTFE
—
Inner Conductor
Phosphor Bronze
Au
Coupling Nut
Brass
Ni
Gasket
Silicone Rubber
—
Cable Clamp
Brass
Ag
Ferrule
—
—
Environmental
Operating Temperature
45 ℃-85 ℃
Weatherproof Rate
IP67
RoHs (2002/95/EC)
Compliant by exemption
Suitable Cable Family
LMR400/RG213/RG8/CNT400 cable
