Since 1994, suzhou shenda cleanroom lighting co.,ltd, Strictly abiding by ISO9001 quality management standards, committing to
develop cleanroom lighting, has become one of the leading suppliers of cleanroom light. Its product,based on the implementation of
GB standards,has passed CCC certificate CQC &CCCF issued, RoHs, EU CE,TUV GS etc., a series of certificates related and obtained a
variety of shape and utility model patents.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
SD06/07
-
Input Voltage(V):
-
180-240Vac
-
Lamp Luminous Flux(lm):
-
3600
-
Working Temperature(℃):
-
-30 - 50
-
Product name:
-

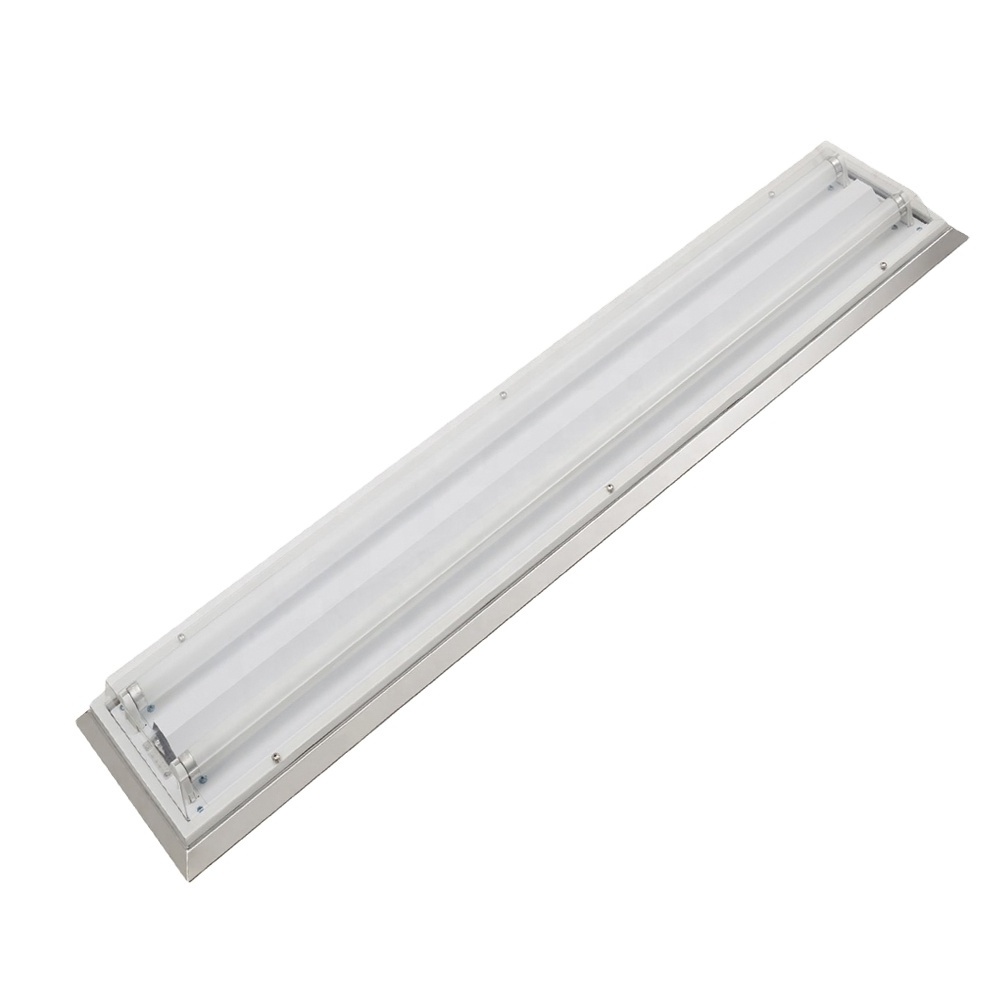

2x18w t5/t8 clean room ceiling t5 fluorescent fixture lighting
-
frame material:
-
cold rolling steel coating
-
power:
-
18wx2
-
install:
-
surface mounted
-
Warranty:
-
2 years
-
tube model:
-
T5/T8
-
wired:
-
led wired/ fluorescent wired
-
Installation:
-
ceiling surface mounted
-
Driver:
-
none
-
Luminous Efficacy(lm/w):
-
100
-
CRI (Ra>):
-
80
-
Working Lifetime(Hour):
-
25000
Quick Details
-
Design Style:
-
Industrial
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
shenda
-
Model Number:
-
SD06/07
-
Input Voltage(V):
-
180-240Vac
-
Lamp Luminous Flux(lm):
-
3600
-
Working Temperature(℃):
-
-30 - 50
-
Product name:
-
2x18w t5/t8 clean room ceiling t5 fluorescent fixture lighting
-
frame material:
-
cold rolling steel coating
-
power:
-
18wx2
-
install:
-
surface mounted
-
Warranty:
-
2 years
-
tube model:
-
T5/T8
-
wired:
-
led wired/ fluorescent wired
-
Installation:
-
ceiling surface mounted
-
Driver:
-
none
-
Luminous Efficacy(lm/w):
-
100
-
CRI (Ra>):
-
80
-
Working Lifetime(Hour):
-
25000
Product Paramenters
led cabled connection
AL Nano filmed reflector
|
Frame material: SS201/306/316
|
|
Suitable tube: LED t5/t8
|
|
wired: led cabled connection
|
||
|
Diffuser: clear anti-yellow PET in 1.6mm thickness
|
|
beam distribution: unsymmetric
|
|
efficiency: 100lm/w
|
||
|
Reflector: Nano-filmed AL reflector
|
|
IP level: IP20
|
|
Installation: surface mount
|
||
|
Edge: bevel edge
|
|
Grounded: yes
|
|
sealing: gasket sealed
|
||
|
Model
|
Power(w)
|
Input
|
Dimension(mm)
|
|
|
|
MX-Y9X3/SD06/07
|
9WX3
|
180-240Vac~50/60Hz
|
710X298X65
|
|
|
|
MX-Y9X2/SD06/07
|
9WX2
|
180-240Vac~50/60Hz
|
710X225X65
|
|
|
|
MX-Y9X1/SD06/07
|
9WX1
|
180-240Vac~50/60Hz
|
710X225X65
|
|
|
|
MX-Y14X2/SD06/07
|
14WX2
|
180-240Vac~50/60Hz
|
1015X225X65
|
|
|
|
MX-Y14X1/SD06/07
|
14WX1
|
180-240Vac~50/60Hz
|
1015X225X65
|
|
|
|
MX-Y18X3/SD06/07
|
18WX3
|
180-240Vac~50/60Hz
|
1317X298X65
|
|
|
|
MX-Y18X2/SD06/07
|
18WX2
|
180-240Vac~50/60Hz
|
1317X225X65
|
|
|
|
MX-Y18X1/SD06/07
|
18WX1
|
180-240Vac~50/60Hz
|
1317X225X65
|
|
|
