- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
RYD
-
Model Number:
-
RYD-F20
-
External Size:
-
63*58*35 mm
-
Product Name:
-
Waterproof Plastic Enclosure Box for Electronics
-
Material:
-
Acrylonitrile Butadiene Styrene
-
Color:
-
Gray or Black
-
Function:
-
Waterproof/ Dustproof/ Flame Retardant
-
Application:
-
Electric Industry
-
Protection Degree::
-
IP66/IP67
-
Certificate:
-
ROHS /CE /IP67
-
Custom Service:
-
Accept Enclosure Customized
-
Exposure T'emperatures Range::
-
-40℃ to 120℃
-
Mounting Type:
-
Surface
Quick Details
-
Protection Level:
-
IP67
-
Type:
-
Junction Box
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
RYD
-
Model Number:
-
RYD-F20
-
External Size:
-
63*58*35 mm
-
Product Name:
-
Waterproof Plastic Enclosure Box for Electronics
-
Material:
-
Acrylonitrile Butadiene Styrene
-
Color:
-
Gray or Black
-
Function:
-
Waterproof/ Dustproof/ Flame Retardant
-
Application:
-
Electric Industry
-
Protection Degree::
-
IP66/IP67
-
Certificate:
-
ROHS /CE /IP67
-
Custom Service:
-
Accept Enclosure Customized
-
Exposure T'emperatures Range::
-
-40℃ to 120℃
-
Mounting Type:
-
Surface

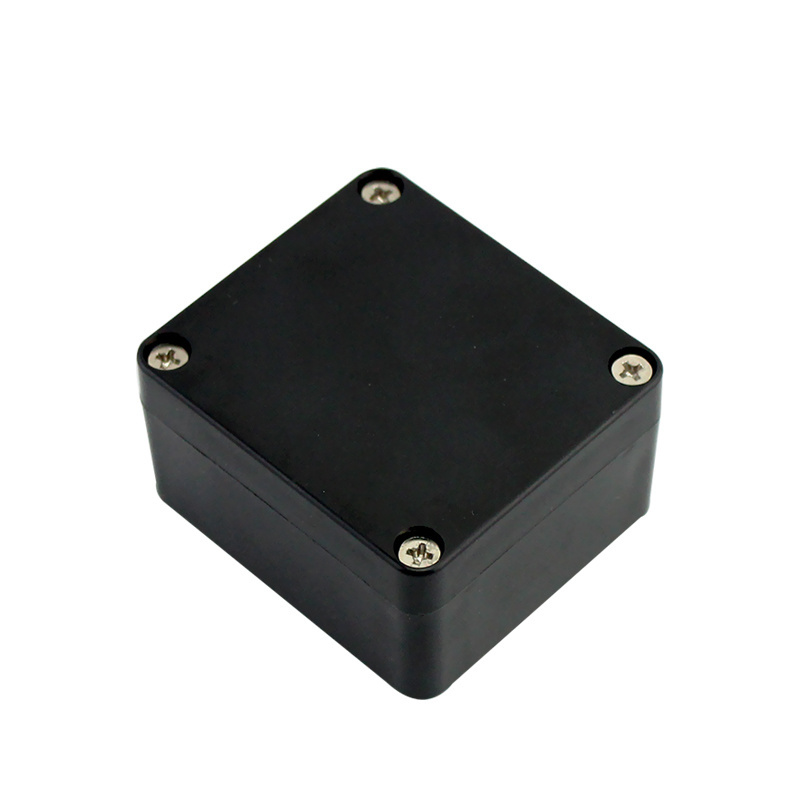

About this item：
Product Name:
Junction Box, Electrical Boxes ; Waterproof Rating: IP67.
Outer Size of electrical enclosure:
63*58*35 mm
- - (Allowable Error: ±2mm).
Electric Enclosure Material:
ABS, Rubber
Features:
moisture proof, sunscreen, anti-corrosion, durable for years use
Easy to install and Wildly Application
The junction box with fixed ears can be easy to install on the wall, meet multiple kinds of project need.
Wildly application:
Suitable for indoor and outdoor electric, communication, fire fighting apparatus，iron, and steel smelting, petrochemical industry, electron, power system, building, air and seaport, hotel, ship, works, wastewater treatment equipment, environmental equipment and so on.
Product Description
Junction box with fixed ear and bottom hole design
The junction box with fixed ears can be easy to install on the wall, easy to install and use.
Multifunctional screw hole design at the bottom for various DIY creations.
Multifunctional screw hole design at the bottom for various DIY creations.
Copper nut
Exquisite copper screw hole design and stainless steel screws, anti-rust and long life.
The stretchable seal gasket
The seal gasket provides protection to keep out the water and dirt ingress. (The seal gasket has elasticity. If the seal gasket is
shorter, you can stretch it to the proper length when you are installing it on the corner parts)
shorter, you can stretch it to the proper length when you are installing it on the corner parts)
Application
ELECTRONICS
JUNCTION
ELECTRICAL
Product Details
ABS
Eco-friendly material,
Smooth surface
Stainless steel screw and Silicone seal strip
Mounting pillar
Installation method
Related Products
Size Information
|
Model No.
|
Size: L*W*H(mm)
|
|
|
RYD-F1
|
200*120*75
|
|
|
RYD-F1-1
|
200*120*113
|
|
|
RYD-F1-2
|
200*120*75
|
|
|
RYD-F1-3
|
200*120*56
|
|
|
RYD-F1-6
|
200*120*67
|
|
|
RYD-F2
|
158*90*60
|
|
|
RYD-F2-2
|
158*90*64
|
|
|
RYD-F2-3
|
158*90*40
|
|
|
RYD-F3
|
115*90*55
|
|
|
RYD-F3-2 With flange
|
115*90*55
|
|
|
RYD-F3-3
|
115*90*70
|
|
|
RYD-F4
|
100*68*50
|
|
|
RYD-F4-1
|
100*68*40
|
|
|
RYD-F4-2 With flange
|
100*68*50
|
|
|
RYD-F5
|
160*160*90
|
|
|
RYD-F5-2 With flange
|
160*160*90
|
|
|
RYD-F6
|
263*182*95
|
|
|
RYD-F6 Low cover
|
263*182*60
|
|
|
RYD-F6 High cover
|
263*182*125
|
|
|
RYD-F7
|
158*90*46
|
|
|
RYD-F7-1
|
158*90*60
|
|
|
RYD-F8
|
115*85*35
|
|
|
RYD-F9
|
280*195*135
|
|
|
RYD-F9-3
|
280*195*86
|
|
|
RYD-F10
|
320*240*110
|
|
|
RYD-F10 High cover
|
320*240*140
|
|
|
RYD-F10 Higher cover
|
320*240*155
|
|
|
RYD-F11
|
380*260*105
|
|
|
RYD-F11 Middle cover
|
380*260*120
|
|
|
RYD-F11 High cover
|
380*260*140
|
|
|
RYD-F13
|
162*81*65
|
|
|
RYD-F14
|
120*120*90
|
|
|
RYD-F15
|
230*150*85
|
|
|
RYD-F15-2
|
230*150*87
|
|
|
RYD-F16
|
160*45*55
|
|
|
RYD-F19 With flange
|
83*58*33
|
|
|
RYD-F19-1
|
83*58*33
|
|
|
RYD-F20
|
63*58*35
|
|
|
RYD-F20-2 With flange
|
63*58*35
|
|
|
RYD-F21
|
240*160*90
|
|
|
RYD-F21 High cover
|
240*160*120
|
|
|
RYD-F22
|
160*110*90.
|
|
|
RYD-F24
|
192*188*100
|
|
|
RYD-F24-2
|
192*188*70
|
|
|
RYD-F25
|
83*81*56
|
|
|
RYD-F34
|
290*210*60
|
|
|
RYD-F36
|
290*210*100
|
|
|
RYD-F50
|
300*280*140
|
|
|
RYD-F51B
|
390*290*165
|
|
|
There are two kinds of lids to choose:
Normal cover and Transparent cover.
|
|
|
Certifications
Company Introduction
FAQ
Q1
. Can you accept
small orders
?
A1
. Pls feel free to contact us no matter how many products you want, we will try our best to get the best price for you.
Q2
. What's the delivery time?
A2
. Generally,
3-15 days
after order and payment confirmation. The specific delivery time depends on the items and the quantity of your order.
Q3
. What's your terms of payment?
A3
.
T/T 30% as deposit, and 70% before delivery
. We'll show you the photos of the products and packages before you pay the balance.
Q4
. Could I put my own logo on it?
A4
. Sure, we are a professional manufacturer and have over 10 years OEM experience, logo can be made by laser, engraved, embossed, transfer printing etc.
